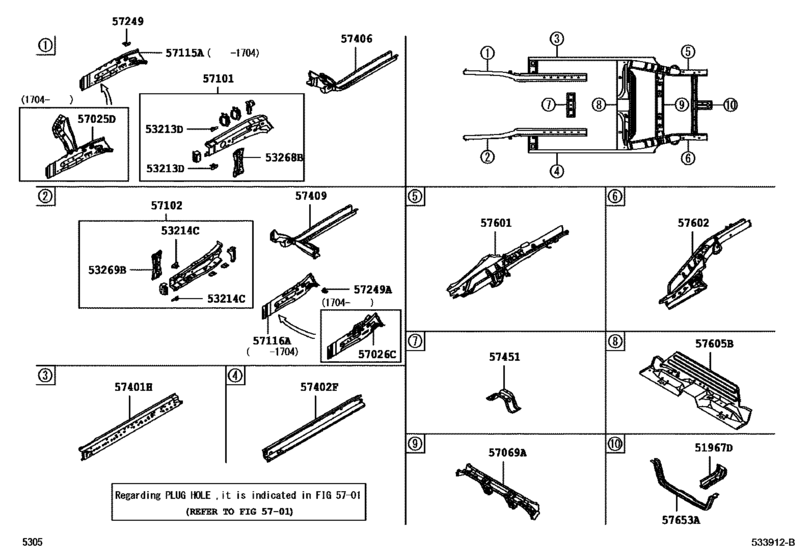

Floor Side Member ([12.2012 - ] (1212- )) Diagram Toyota AGYA/ WIGO
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- B101
- grade
- HIS
- ENGINE
- 3NRVE
- TRANSMISSION
- MTM
- Model
- AGYA
- From
- 04.2017
- No.of Doors
- 5D
- Vehicle Model
- AGYA
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51967D
|
51967D
51095-BZ040
Hook Sub-Assy,rear
[04.2017 -] B10# |
51095-BZ040 |
— | ||
|
53213D
|
53213D
53213-BZ060
Support, Radiator, Upper Rh
[04.2017 -] B10# |
53213-BZ060 |
— | ||
|
53214C
|
53214C
53213-BZ060
Support, Radiator, Upper Rh
[04.2017 -] B10# |
53213-BZ060 |
— | ||
|
53268B
|
53268B
53268-BZ080
Reinforcement, Radiator Mounting, Rh
[04.2017 -] B10# |
53268-BZ080 |
— | ||
|
53269B
|
53269B
53269-BZ020
Reinforcement, Radiator Mounting, Lh
[04.2017 -] B10# |
53269-BZ020 |
— | ||
|
57025D
|
57025D
57025-BZ060
Member Sub-Assy, Front Side, Outer Rh
[04.2017 -] B10# |
57025-BZ060 |
— | ||
|
57026C
|
57026C
57026-BZ070
Member Sub-Assy, Front Side, Outer Lh
[04.2017 -] B10# |
57026-BZ070 |
— | ||
|
57069A
|
57069A
57069-BZ081
Member, Rear Floor, Center
[04.2017 -] B10# |
57069-BZ081 |
— | ||
|
57101
|
57101
57101-BZ570
Member Sub-Assy, Front Side, Rh
[04.2017 -] B10# |
57101-BZ570 |
— | ||
|
57102
|
57102
57102-BZ650
Member Sub-Assy, Front Side, Lh
[04.2017 -] B10# |
57102-BZ650 |
— | ||
|
57249
|
57249
57249-BZ020
Bracket, Flexible Hose, No.1
[04.2017 -] B10# |
57249-BZ020 |
— | ||
|
57249A
|
57249A
57249-BZ020
Bracket, Flexible Hose, No.1
[04.2017 -] B10# |
57249-BZ020 |
— | ||
|
57401H
|
57401H
57401-BZ400
Member Sub-Assy, Floor Side, Inner Rh
[04.2017 -] B10#..AGYA |
57401-BZ400 |
— | ||
|
57402F
|
57402F
57402-BZ410
Member Sub-Assy, Floor Side, Inner Lh
[04.2017 -] B10#..AGYA |
57402-BZ410 |
— | ||
|
57406
|
57406
57406-BZ220
Member Sub-Assy, Main Floor Side, Rh
[04.2017 -] B10# |
57406-BZ220 |
— | ||
|
57409
|
57409
57409-BZ190
Member Sub-Assy, Main Floor Side, Lh
[04.2017 -] B10# |
57409-BZ190 |
— | ||
|
57451
|
57451
57451-BZ150
Member, Front Floor Cross
[04.2017 -] B10# |
57451-BZ150 |
— | ||
|
57601
|
57601
57601-BZ430
Member Sub-Assy, Rear Floor Side, Rh
[04.2017 -] B10#..AGYA |
57601-BZ430 |
— | ||
|
57602
|
57602
57602-BZ410
Member Sub-Assy, Rear Floor Side, Lh
[04.2017 -] B10#..AGYA |
57602-BZ410 |
— | ||
|
57605B
|
57605B
57605-BZ150
Member Sub-Assy, Rear Floor Cross, No.1
[04.2017 -] B10# |
57605-BZ150 |
— | ||
|
57653A
|
57653A
57653-BZ090
Member, Rear Floor Cross, No.2
[04.2017 -] B10# |
57653-BZ090 |
— |
