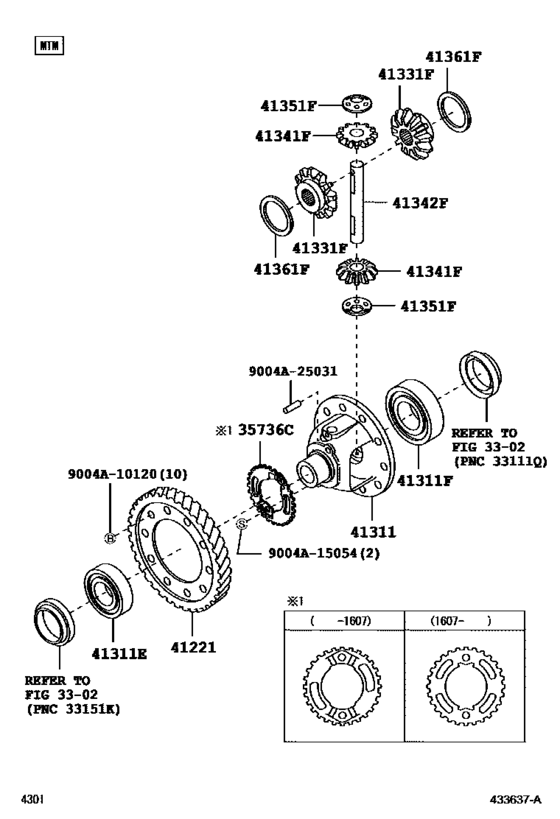

Front Axle Housing & Differential ([12.2012 - ] (1212- )MTM) Diagram Toyota AGYA/ WIGO
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- B101
- grade
- HIS
- ENGINE
- 3NRVE
- TRANSMISSION
- MTM
- Model
- AGYA
- From
- 04.2017
- No.of Doors
- 5D
- Vehicle Model
- AGYA
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35736C
|
35736C
35736-BZ040
Rotor, Speed Sensor
[04.2017 -] B10#..MTM |
35736-BZ040 |
— | ||
|
41221
|
41221
41221-BZ140
Gear, Front Differential Ring
[04.2017 -] B101..MTM AKI |
41221-BZ140 |
— | ||
|
41311
|
41311
41311-BZ070
Case, Front Differential
[04.2017 -] B101..MTM |
41311-BZ070 |
— | ||
|
41311E
|
41311E
9004A-36101
Bearing, Tapered Roller (For Front Differential Case Front)
[04.2017 -] B10#..MTM |
9004A-36101 |
— | ||
|
41311F
|
41311F
9004A-36115
Bearing, Tapered Roller (For Front Differential Case Rear)
[04.2017 -] B101..MTM |
9004A-36115 |
— | ||
|
41331F
|
41331F
41331-97202 Gear, Rear Differential Side[04.2017 -] B101..MTM |
41331-97202 |
US $54.86 |
||
|
41341F
|
41341F
41341-97401 Pinion, Front Differential[04.2017 -] B101..MTM |
41341-97401 |
US $33.05 |
||
|
41342F
|
41342F
41342-97401 Shaft, Front Differential Pinion, No.1[04.2017 -] B101..MTM |
41342-97401 |
US $22.42 |
||
|
41351F
|
41351F
41351-97201 Washer, Front Differential Pinion Thrust[04.2017 -] B101..MTM |
41351-97201 |
US $5.82 |
||
|
41361F
|
41361F
41361-BZ130
Washer, Front Differential Side Gear Thrust, No.1
[04.2017 -] B10#..MTM T=0.8 |
41361-BZ130 |
— | ||
|
9004A10120
|
9004A10120
9004A-10120
New Genuine Part
|
9004A-10120 |
— | ||
|
9004A15054
|
9004A15054
9004A-15054
New Genuine Part
|
9004A-15054 |
— | ||
|
9004A25031
|
9004A25031
9004A-25031
New Genuine Part
|
9004A-25031 |
— |
