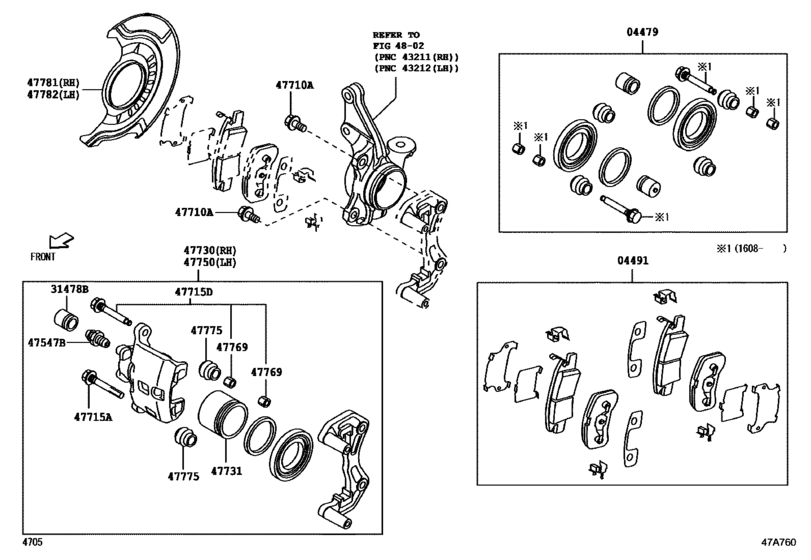

Front Disc Brake Caliper & Dust Cover ([04.2017 - ] (1704- )) Diagram Toyota AGYA/ WIGO
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- B101
- grade
- HIS
- ENGINE
- 3NRVE
- TRANSMISSION
- MTM
- Model
- AGYA
- From
- 04.2017
- No.of Doors
- 5D
- Vehicle Model
- AGYA
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04479
|
04479
04478-BZ151
Cylinder Kit, Disc Brake, Front
[04.2017 -] B10# |
04478-BZ151 |
— | ||
|
04491
|
04491
04491-BZ020
Pad Kit, Disc Brake, Front
[04.2017 -] B10# |
04491-BZ020 |
— | ||
|
31478B
|
31478B
47548-BZ080 Cap, Bleeder Plug(For Front Disc Brake)[04.2017 -] B10# |
47548-BZ080 |
US $4.12 |
||
|
47547B
|
47547B
47547-BZ070
Plug, Bleeder(For Front Disc Brake)
[04.2017 -] B10# |
47547-BZ070 |
— | ||
|
47710A
|
47710A
90041-05242 Bolt, Hexagon(For Front Disc Brake Caliper)[04.2017 -] B10# |
90041-05242 |
US $4.30 |
||
|
47715A
|
47715A
47715-97201 Pin, Front Disc Brake Cylinder Slide[04.2017 -] B10# |
47715-97201 |
from US $9.73 |
||
|
47715D
|
47715D
47714-BZ030
Pin, Front Disc Brake Cylinder Slide, No.2
[04.2017 -] B10# |
47714-BZ030 |
— | ||
|
47730
|
47730
47730-BZ110
Cylinder Assy, Front Disc Brake, Rh
[04.2017 -] B10# |
47730-BZ110 |
— | ||
|
47731
|
47731
47731-BZ030
Piston, Front Disc Brake
[04.2017 -] B10# |
47731-BZ030 |
— | ||
|
47750
|
47750
47750-BZ080
Cylinder Assy, Disc Brake, Lh
[04.2017 -] B10# |
47750-BZ080 |
— | ||
|
47769
|
47769
47769-BZ010
Bush, Cylinder Slide, No.1(For Front Disc Brake)
[04.2017 -] B10# |
47769-BZ010 |
— | ||
|
47775
|
47775
47775-BZ070
Boot, Bush Dust(For Front Disc Brake)
[04.2017 -] B10# |
47775-BZ070 |
— | ||
|
47781
|
47781
47781-BZ100
Cover, Disc Brake Dust, Front Rh
[04.2017 -] B10# |
47781-BZ100 |
— | ||
|
47782
|
47782
47782-BZ100
Cover, Disc Brake Dust, Front Lh
[04.2017 -] B10# |
47782-BZ100 |
— |
