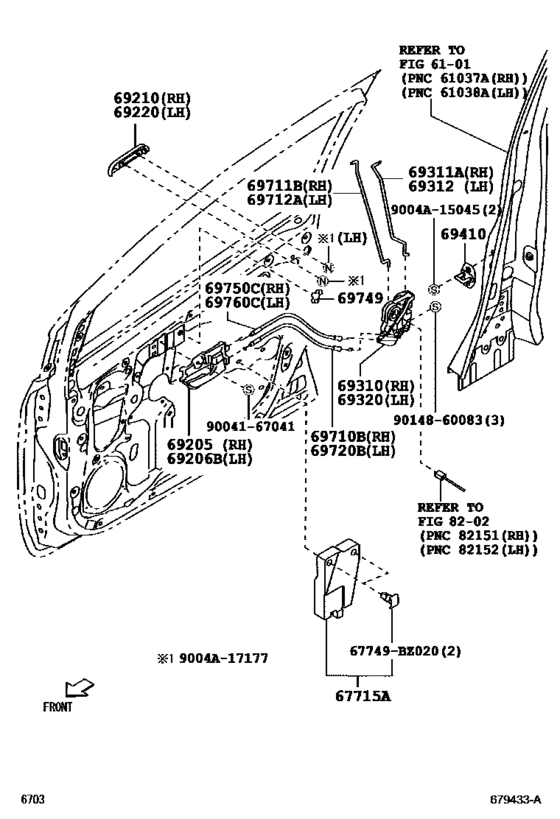

Front Door Lock & Handle ([04.2017 - ] (1704- )) Diagram Toyota AGYA/ WIGO
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- B101
- grade
- HIS
- ENGINE
- 3NRVE
- TRANSMISSION
- MTM
- Model
- AGYA
- From
- 04.2017
- No.of Doors
- 5D
- Vehicle Model
- AGYA
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67715A
|
67715A
75787-BZ010
Pad, Front Door Trim
[04.2017 -] B10# RH |
75787-BZ010 |
— | ||
|
67715A
|
67715A
75788-BZ010
Pad, Front Door Trim
[04.2017 -] B10# LH |
75788-BZ010 |
— | ||
|
69205
|
69205
69270-BZ130-B0
Handle Sub-Assy, Front Door Inside, Rh
[04.2017 -] B10#..HIS;B100..MIDS..WIGO DK.GRAY,TRIM1# |
69270-BZ130-B0 |
— | ||
|
69206B
|
69206B
69280-BZ130-B0
Handle Sub-Assy, Front Door Inside, Lh
[04.2017 -] B10#..HIS;B100..MIDS..WIGO DK.GRAY,TRIM1# |
69280-BZ130-B0 |
— | ||
|
69210
|
69210
69210-BZ320-A0
Handle Assy, Front Door, Outside Rh
[04.2017 -] B10# WHITE,W09 |
69210-BZ320-A0 |
— | ||
|
69210
|
69210
69210-BZ320-B0
Handle Assy, Front Door, Outside Rh
[04.2017 -] B10# SILVER M.M.,1E7 |
69210-BZ320-B0 |
— | ||
|
69210
|
69210
69210-BZ320-B1
Handle Assy, Front Door, Outside Rh
[04.2017 -] B10# GRAY ME.,1G3 |
69210-BZ320-B1 |
— | ||
|
69210
|
69210
69210-BZ320-C0
Handle Assy, Front Door, Outside Rh
[04.2017 -] B10# BLACK,X13 |
69210-BZ320-C0 |
— | ||
|
69210
|
69210
69210-BZ320-D0
Handle Assy, Front Door, Outside Rh
[04.2017 -] B10# RED,R40 |
69210-BZ320-D0 |
— | ||
|
69210
|
69210
69210-BZ320-F0
Handle Assy, Front Door, Outside Rh
[04.2017 -] B10# YELLOW,Y07 |
69210-BZ320-F0 |
— | ||
|
69220
|
69220
69220-BZ310-A0
Handle Assy, Front Door Outside, Lh
[04.2017 -] B10# WHITE,W09 |
69220-BZ310-A0 |
— | ||
|
69220
|
69220
69220-BZ310-B0
Handle Assy, Front Door Outside, Lh
[04.2017 -] B10# SILVER M.M.,1E7 |
69220-BZ310-B0 |
— | ||
|
69220
|
69220
69220-BZ310-B1
Handle Assy, Front Door Outside, Lh
[04.2017 -] B10# GRAY ME.,1G3 |
69220-BZ310-B1 |
— | ||
|
69220
|
69220
69220-BZ310-C0
Handle Assy, Front Door Outside, Lh
[04.2017 -] B10# BLACK,X13 |
69220-BZ310-C0 |
— | ||
|
69220
|
69220
69220-BZ310-D0
Handle Assy, Front Door Outside, Lh
[04.2017 -] B10# RED,R40 |
69220-BZ310-D0 |
— | ||
|
69220
|
69220
69220-BZ310-F0
Handle Assy, Front Door Outside, Lh
[04.2017 -] B10# YELLOW,Y07 |
69220-BZ310-F0 |
— | ||
|
69310
|
69310
69310-BZ330
Lock Assy, Front Door, Rh
[04.2017 -] B10#..AGYA |
69310-BZ330 |
— | ||
|
69311A
|
69311A
69311-BZ090
Rod, Front Door Lock Open, Rh
[04.2017 -] B10# |
69311-BZ090 |
— | ||
|
69312
|
69312
69312-BZ090
Rod, Front Door Lock Open, Lh
[04.2017 -] B10# |
69312-BZ090 |
— | ||
|
69320
|
69320
69320-BZ290
Lock Assy, Front Door, Lh
[04.2017 -] B10#..AGYA |
69320-BZ290 |
— | ||
|
69410
|
69410
69410-BZ010 Plate Assy, Front Door Lock Striker[04.2017 -] B10# |
69410-BZ010 |
US $13.21 |
||
|
69710B
|
69710B
69710-BZ100
Cable Assy, Front Door Lock Remote Control, Rh
[04.2017 -] B10# |
69710-BZ100 |
— | ||
|
69711B
|
69711B
69711-BZ110
Link, Front Door Lock Remote Control, Rh
[04.2017 -] B10#..AGYA |
69711-BZ110 |
— | ||
|
69720B
|
69720B
69710-BZ100
Cable Assy, Front Door Lock Remote Control, Rh
[04.2017 -] B10# |
69710-BZ100 |
— | ||
|
69749
|
69749
69749-BZ100
Clamp, Front Door Lock Link
[04.2017 -] B10# |
69749-BZ100 |
— | ||
|
69750C
|
69750C
69750-BZ090
Cable Assy, Front Door Inside Locking, Rh
[04.2017 -] B10# |
69750-BZ090 |
— | ||
|
69760C
|
69760C
69760-BZ090
Cable Assy, Front Door Inside Locking Lh
[04.2017 -] B10# |
69760-BZ090 |
— | ||
|
9004A17177
|
9004A17177
9004A-17177 New Genuine Part |
9004A-17177 |
US $1.75 |
||
|
9004167041
|
9004167041
90041-67041 New Genuine Part |
90041-67041 |
US $2.15 |
||
|
9014860083
|
9014860083
90148-60083 SCREW HEXALOBULAR |
90148-60083 |
US $1.08 |
