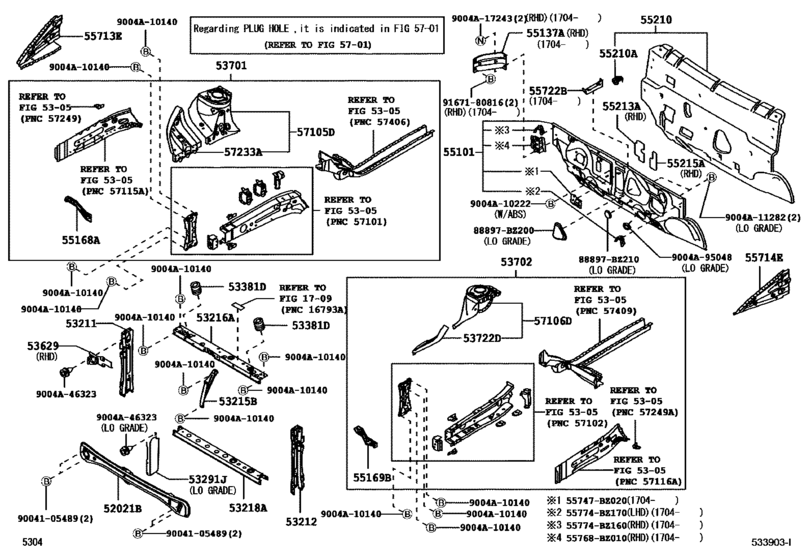

Front Fender Apron & Dash Panel ([12.2012 - ] (1212- )) Diagram Toyota AGYA/ WIGO
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- B101
- grade
- HIS
- ENGINE
- 3NRVE
- TRANSMISSION
- MTM
- Model
- AGYA
- From
- 04.2017
- No.of Doors
- 5D
- Vehicle Model
- AGYA
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52021B
|
52021B
52131-BZ120
Reinforcement Sub-Assy, Front Bumper
[04.2017 -] B10# |
52131-BZ120 |
— | ||
|
53211
|
53211
53211-BZ150
Support, Radiator, Rh
[04.2017 -] B10# |
53211-BZ150 |
— | ||
|
53212
|
53212
53211-BZ150
Support, Radiator, Rh
[04.2017 -] B10# |
53211-BZ150 |
— | ||
|
53215B
|
53215B
53215-BZ170
Support, Hood Lock
[04.2017 -] B10# |
53215-BZ170 |
— | ||
|
53216A
|
53216A
53216-BZ190
Support, Radiator, Upper
[04.2017 -] B10# |
53216-BZ190 |
— | ||
|
53218A
|
53218A
53028-BZ160
Support Sub-Assy, Radiator, Lower
[04.2017 -] B10# |
53028-BZ160 |
— | ||
|
53381D
|
53381D
53381-BZ010 Clip(For Hood To Radiator Support Seal)[04.2017 -] B10# |
53381-BZ010 |
US $4.45 |
||
|
53629
|
53629
53629-BZ110
Cover, Hood Lock Control Cable
[04.2017 -] B10# |
53629-BZ110 |
— | ||
|
53701
|
53701
53701-BZ560
Apron Sub-Assy, Front Fender, Rh
[04.2017 -] B10# |
53701-BZ560 |
— | ||
|
53702
|
53702
53702-BZ660
Apron Sub-Assy, Front Fender, Lh
[04.2017 -] B10# |
53702-BZ660 |
— | ||
|
53722D
|
53722D
57234-BZ050
Retainer, Fender Apron, Lh
[04.2017 -] B10# |
57234-BZ050 |
— | ||
|
55101
|
55101
55101-BZL80
Panel Sub-Assy, Dash
[04.2017 -] B10#..MTM..AGYA |
55101-BZL80 |
— | ||
|
55137A
|
55137A
55137-BZ030
Brace, Dash To Frame, Rh
[04.2017 -] B10#..AGYA |
55137-BZ030 |
— | ||
|
55168A
|
55168A
55168-BZ230
Bracket, Front Fender Mounting, Rh
[04.2017 -] B10# |
55168-BZ230 |
— | ||
|
55169B
|
55169B
55169-BZ070
Bracket, Front Fender Mounting, Lh
[04.2017 -] B10# |
55169-BZ070 |
— | ||
|
55210
|
55210
55210-BZ350
Insulator Assy, Dash Panel
[04.2017 -] B10#..AGYA |
55210-BZ350 |
— | ||
|
55210A
|
55210A
9004A-46130
Clip
[04.2017 -] B10# |
9004A-46130 |
— | ||
|
55713E
|
55713E
53803-BZ120
Panel, Cowl Top Side, Rh
[04.2017 -] B10#..AGYA |
53803-BZ120 |
— | ||
|
55714E
|
55714E
55714-BZ160
Panel, Cowl Top Side, Lh
[04.2017 -] B10#..AGYA |
55714-BZ160 |
— | ||
|
55722B
|
55722B
55722-BZ080
Brace, Cowl Top To Cowl, Inner No.2
[04.2017 -] B10# |
55722-BZ080 |
— | ||
|
57105D
|
57105D
57105-BZ180
Plate Sub-Assy, Front Side Member, Rh
[04.2017 -] B10# |
57105-BZ180 |
— | ||
|
57106D
|
57106D
57106-BZ170
Plate Sub-Assy, Front Side Member, Lh
[04.2017 -] B10# |
57106-BZ170 |
— | ||
|
57233A
|
57233A
57233-BZ040
Retainer, Engine Front Support, Rh
[04.2017 -] B10# |
57233-BZ040 |
— | ||
|
9004A11282
|
9004A11282
9004A-11282
New Genuine Part
|
9004A-11282 |
— | ||
|
9004A17243
|
9004A17243
9004A-17243
New Genuine Part
|
9004A-17243 |
— | ||
|
9004A46323
|
9004A46323
9004A-46323 Piece, Rear Bumper |
9004A-46323 |
US $3.40 |
||
|
9004A95048
|
9004A95048
9004A-95048
New Genuine Part
|
9004A-95048 |
— | ||
|
88897BZ200
|
88897BZ200
88897-BZ200
Valve, Cooler Magnet
|
88897-BZ200 |
— | ||
|
88897BZ210
|
88897BZ210
88897-BZ210
Valve, Cooler Magnet
|
88897-BZ210 |
— | ||
|
9004105489
|
9004105489
90041-05489 New Genuine Part |
90041-05489 |
US $3.05 |
||
|
9167180816
|
9167180816
91671-80816 Bolt (For Transmission Control Cable Bracket) |
91671-80816 |
from US $0.76 |
