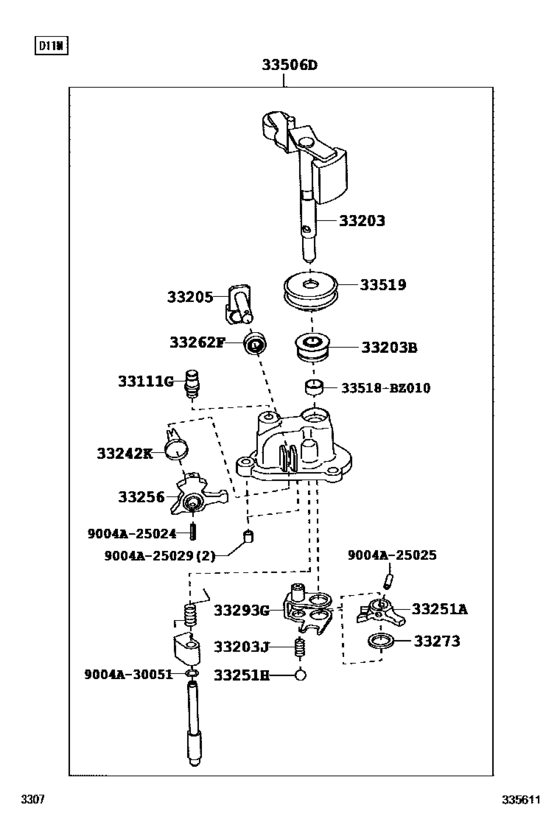

Gear Shift Fork & Lever Shaft (Mtm) ([04.2017 - ] (1704- )MTM) Diagram Toyota AGYA/ WIGO
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- B101
- grade
- HIS
- ENGINE
- 3NRVE
- TRANSMISSION
- MTM
- Model
- AGYA
- From
- 04.2017
- No.of Doors
- 5D
- Vehicle Model
- AGYA
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33111G
|
33111G
9004A-93003
Plug(For Clutch Housing)
[04.2017 -] B10#..MTM |
9004A-93003 |
— | ||
| replacement | |||||
|
33111G
|
33111G
90049-15026 Plug(For Clutch Housing)[04.2017 -] B10#..MTM |
90049-15026 |
from US $1.16 |
||
|
33203
|
33203
33203-BZ090
Shaft Sub-Assy, Shift Lever, No.1
[04.2017 -] B10#..MTM |
33203-BZ090 |
— | ||
|
33203B
|
33203B
9004A-31053
Seal, Oil(For Shift Lever Shaft)
[04.2017 -] B10#..MTM |
9004A-31053 |
— | ||
|
33203J
|
33203J
9004A-50133
Spring(For Shift Lever Shaft Ball)
[04.2017 -] B10#..MTM |
9004A-50133 |
— | ||
|
33205
|
33205
33205-BZ020
Shaft Sub-Assy, Select Lever
[04.2017 -] B10#..MTM |
33205-BZ020 |
— | ||
|
33242K
|
33242K
9004A-50121
Spring, Torsion(For Select Return)
[04.2017 -] B10#..MTM |
9004A-50121 |
— | ||
|
33251A
|
33251A
33251-BZ041
Lever, Shift, Inner No.1
[04.2017 -] B10#..MTM |
33251-BZ041 |
— | ||
|
33251H
|
33251H
9004A-36044
Ball, Shaft Detent
[04.2017 -] B10#..MTM |
9004A-36044 |
— | ||
| replacement | |||||
|
33251H
|
33251H
90043-60003 Ball, Shaft Detent[04.2017 -] B10#..MTM |
90043-60003 |
US $1.31 |
||
|
33256
|
33256
33256-BZ031
Lever, Select Inner
[04.2017 -] B10#..MTM |
33256-BZ031 |
— | ||
|
33262F
|
33262F
9004A-31052
Seal, Oil (For Select Lever Shaft)
[04.2017 -] B10#..MTM |
9004A-31052 |
— | ||
|
33273
|
33273
33273-BZ030
Washer, Shift Lever Shaft Housing, No.1
[04.2017 -] B10#..MTM |
33273-BZ030 |
— | ||
|
33293G
|
33293G
33293-BZ010
Holder, Lock Ball
[04.2017 -] B10#..MTM |
33293-BZ010 |
— | ||
|
33506D
|
33506D
33506-BZ060
Cover Sub-Assy, Control Shaft
[04.2017 -] B10#..MTM |
33506-BZ060 |
— | ||
|
33519
|
33519
33519-BZ040
Boot, Control Shaft Dust
[04.2017 -] B10#..MTM |
33519-BZ040 |
— | ||
|
9004A25024
|
9004A25024
9004A-25024
Pin, Slotted Spring
|
9004A-25024 |
— | ||
| replacement | |||||
|
9004A25024
|
9004A25024
90042-54078 Pin, Slotted Spring |
90042-54078 |
from US $2.27 |
||
|
9004A25025
|
9004A25025
9004A-25025
New Genuine Part
|
9004A-25025 |
— | ||
| replacement | |||||
|
9004A25025
|
9004A25025
90042-56004 New Genuine Part |
90042-56004 |
US $3.94 |
||
|
9004A25029
|
9004A25029
9004A-25029
Pin, Ring (For Control Shaft Cover Set Bolt)
|
9004A-25029 |
— | ||
|
9004A30051
|
9004A30051
9004A-30051
New Genuine Part
|
9004A-30051 |
— | ||
|
33518BZ010
|
33518BZ010
33518-BZ010
Bush(For Shift Lever Shaft)
|
33518-BZ010 |
— | ||
