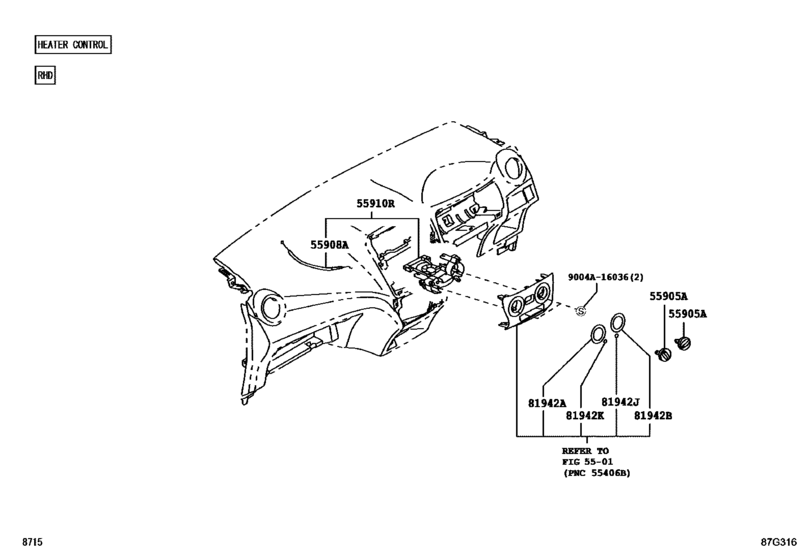

Heating & Air Conditioning - Control & Air Duct ([04.2017 - ] CONTROL PANEL (1704- )AGYA) Diagram Toyota AGYA/ WIGO
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- B101
- grade
- HIS
- ENGINE
- 3NRVE
- TRANSMISSION
- MTM
- Model
- AGYA
- From
- 04.2017
- No.of Doors
- 5D
- Vehicle Model
- AGYA
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55905A
|
55905A
55905-BZ220-B2
Knob, Heater Control
[04.2017 -] B10# SILVER,TRIM1# |
55905-BZ220-B2 |
— | ||
|
55908A
|
55908A
55908-BZ040
Cable Sub-Assy, Air Inlet Damper Control
[04.2017 -] B10#..AGYA |
55908-BZ040 |
— | ||
|
55910R
|
55910R
55910-BZ500
Control Assy, Heater
[04.2017 -] B10#..AGYA |
55910-BZ500 |
— | ||
|
81942A
|
81942A
81942-BZ511
Sheet, Heater Control Name, No.1
[04.2017 -] B10# |
81942-BZ511 |
— | ||
|
81942B
|
81942B
81942-BZ521
Sheet, Heater Control Name, No.2
[04.2017 -] B10# |
81942-BZ521 |
— | ||
|
81942J
|
81942J
81942-BZ580
Sheet, Heater Control Name, No.4
[04.2017 -] B10# |
81942-BZ580 |
— | ||
|
81942K
|
81942K
81942-BZ590
Sheet, Heater Control Name, No.5
[04.2017 -] B10# |
81942-BZ590 |
— | ||
|
9004A16036
|
9004A16036
9004A-16036 Clip, No.2(For Cowl Side Trim) |
9004A-16036 |
US $1.97 |
