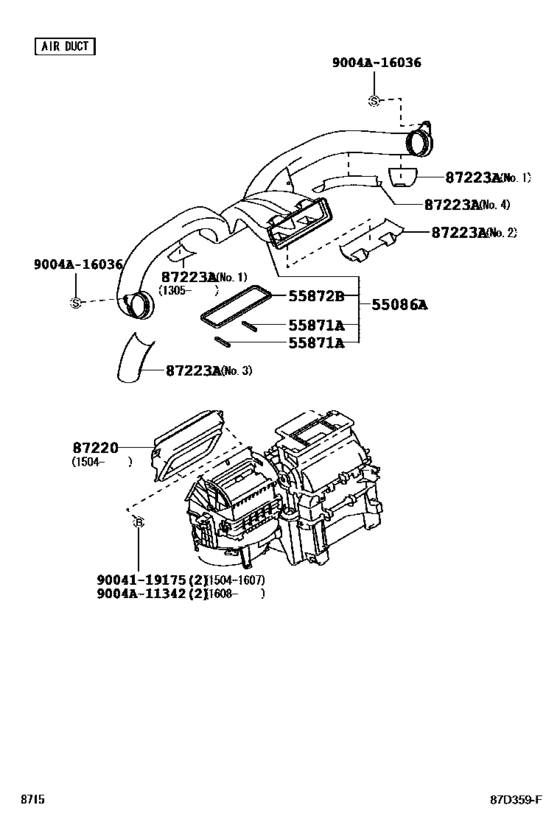

Heating & Air Conditioning - Control & Air Duct ([12.2012 - ] AIR DUCT (1212- )AGYA) Diagram Toyota AGYA/ WIGO
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- B101
- grade
- HIS
- ENGINE
- 3NRVE
- TRANSMISSION
- MTM
- Model
- AGYA
- From
- 04.2017
- No.of Doors
- 5D
- Vehicle Model
- AGYA
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55086A
|
55086A
55086-BZ150
Duct Sub-Assy, Heater To Register, Center
[04.2017 -] B10#..AGYA |
55086-BZ150 |
— | ||
|
87220
|
87220
87220-BZ360
Duct Assy, Air
[04.2017 -] B10# |
87220-BZ360 |
— | ||
|
87223A
|
87223A
87223-BZ050
Pad, Air Duct
[04.2017 -] B10#..AGYA NO.1 |
87223-BZ050 |
— | ||
|
87223A
|
87223A
87223-BZ180
Pad, Air Duct
[04.2017 -] B10# NO.2 |
87223-BZ180 |
— | ||
|
87223A
|
87223A
87223-BZ190
Pad, Air Duct
[04.2017 -] B10#..AGYA NO.3 & NO.4 |
87223-BZ190 |
— | ||
|
87223A
|
87223A
87223-BZ240
Pad, Air Duct
[04.2017 -] B10#..AGYA NO.4 |
87223-BZ240 |
— | ||
|
9004A16036
|
9004A16036
9004A-16036 Clip, No.2(For Cowl Side Trim) |
9004A-16036 |
US $1.97 |
||
|
9004119175
|
9004119175
90041-19175 New Genuine Part |
90041-19175 |
US $1.31 |
