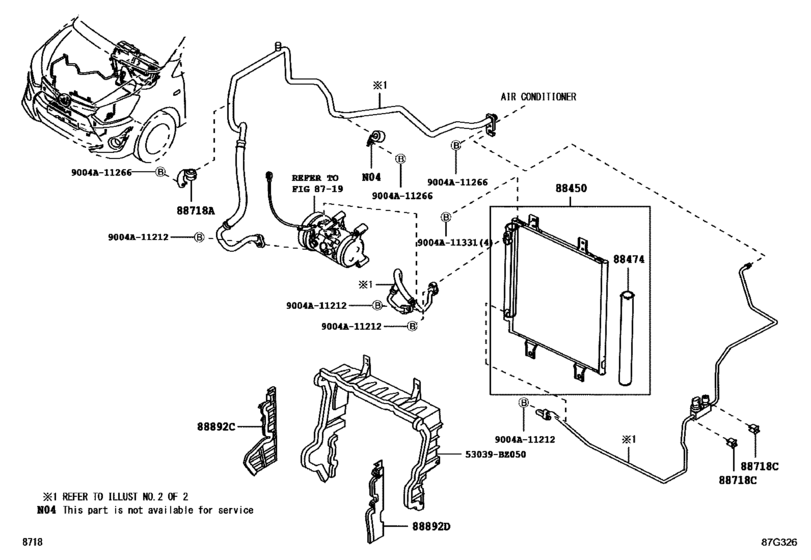

Heating & Air Conditioning - Cooler Piping ([04.2017 - ] NR (1704- )B101) Diagram Toyota AGYA/ WIGO
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- B101
- grade
- HIS
- ENGINE
- 3NRVE
- TRANSMISSION
- MTM
- Model
- AGYA
- From
- 04.2017
- No.of Doors
- 5D
- Vehicle Model
- AGYA
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88450
|
88450
88460-BZ270
Condenser Assy, W/receiver
[04.2017 -] B10# |
88460-BZ270 |
— | ||
|
88474
|
88474
88474-B2010 Dryer, Cooler[04.2017 -] B10# |
88474-B2010 |
from US $66.63 |
||
|
88718A
|
88718A
88718-BZ770
Clamp(For Cooler Refrigerant Pipe), No.1
[04.2017 -] B101 |
88718-BZ770 |
— | ||
|
88718C
|
88718C
88718-BZ280
Clamp(For Cooler Refrigerant Pipe), No.3
[04.2017 -] B10# |
88718-BZ280 |
— | ||
|
88892C
|
88892C
53037-BZ030
Plate, Condenser, No.1
[04.2017 -] B10# |
53037-BZ030 |
— | ||
|
88892D
|
88892D
53038-BZ030
Plate, Condenser, No.2
[04.2017 -] B10# |
53038-BZ030 |
— | ||
|
9004A11212
|
9004A11212
9004A-11212
New Genuine Part
|
9004A-11212 |
— |
