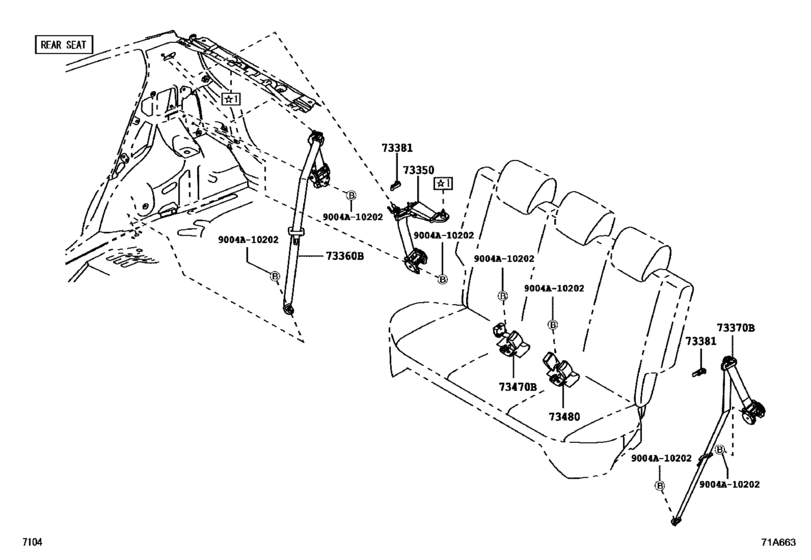

Seat Belt & Child Restraint Seat ([04.2017 - ] REAR SEAT (1704- )) Diagram Toyota AGYA/ WIGO
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- B101
- grade
- HIS
- ENGINE
- 3NRVE
- TRANSMISSION
- MTM
- Model
- AGYA
- From
- 04.2017
- No.of Doors
- 5D
- Vehicle Model
- AGYA
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
73350
|
73350
73350-BZ060-B1
Belt Assy, Rear Seat Lap Type, Center
[04.2017 -] B10# LT.GRAY,TRIM1# |
73350-BZ060-B1 |
— | ||
|
73360B
|
73360B
73360-BZ231-B0
Belt Assy, Rear Seat, Outer
[04.2017 -] B10# SHADOW GRAY,TRIM1# |
73360-BZ231-B0 |
— | ||
|
73370B
|
73370B
73370-BZ231-B0
Belt Assy, Rear Seat, Outer
[04.2017 -] B10# SHADOW GRAY,TRIM1# |
73370-BZ231-B0 |
— | ||
|
73381
|
73381
73381-87202-B2
Holder, Rear Seat Belt
[04.2017 -] B10# DK.GRAY,TRIM1# |
73381-87202-B2 |
— | ||
| replacement | |||||
|
73381
|
73381
73381-87202-C0 Holder, Rear Seat Belt[04.2017 -] B10# DK.GRAY,TRIM1# |
73381-87202-C0 |
US $3.84 |
||
|
73470B
|
73470B
73470-BZ080-B0
Belt Assy, Rear Seat Inner W/center, Rh
[04.2017 -] B10# -,TRIM1# |
73470-BZ080-B0 |
— | ||
|
73480
|
73480
73480-BZ051-B0
Belt Assy, Rear Seat Inner W/center, Lh
[04.2017 -] B10# SHADOW GRAY,TRIM1# |
73480-BZ051-B0 |
— | ||
