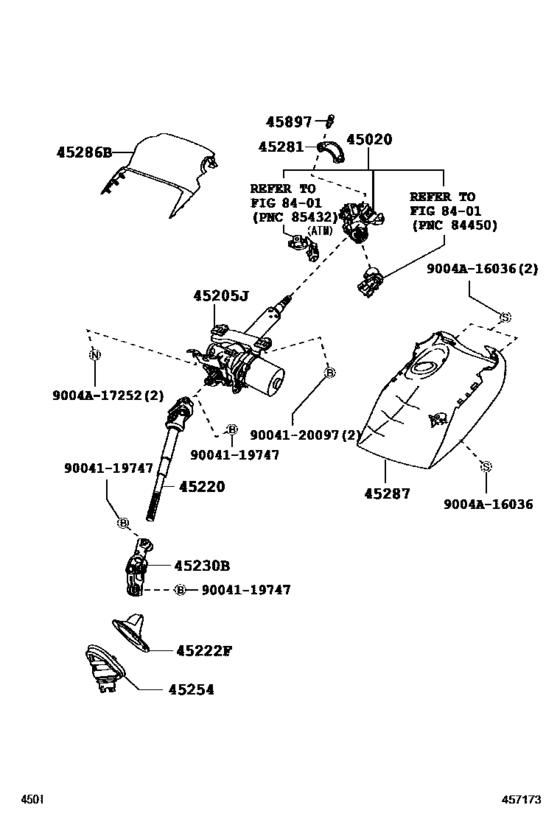

Steering Column & Shaft ([04.2017 - ] (1704- )) Diagram Toyota AGYA/ WIGO
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- B101
- grade
- HIS
- ENGINE
- 3NRVE
- TRANSMISSION
- MTM
- Model
- AGYA
- From
- 04.2017
- No.of Doors
- 5D
- Vehicle Model
- AGYA
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45020
|
45020
45020-BZ130
Bracket Assy, Steering Column Upper W/switch
[04.2017 -] B10#..MTM..HIS |
45020-BZ130 |
— | ||
|
45205J
|
45205J
45205-BZ110
Tube Sub-Assy, Steering Column, Upper
[04.2017 -] B101 |
45205-BZ110 |
— | ||
|
45220
|
45220
45220-BZ240
Shaft Assy, Steering Intermediate
[04.2017 -] B10#..AGYA |
45220-BZ240 |
— | ||
|
45222F
|
45222F
45222-BZ080
Cover, Dust
[04.2017 -] B10#..AGYA |
45222-BZ080 |
— | ||
|
45230B
|
45230B
45290-BZ100
Joint Assy, Steering Shaft Universal
[04.2017 -] B10#..AGYA |
45290-BZ100 |
— | ||
|
45254
|
45254
45254-BZ140
Shield, Steering Column Hole
[04.2017 -] B10#..AGYA |
45254-BZ140 |
— | ||
|
45281
|
45281
45281-BZ070
Housing, Steering Column
[04.2017 -] B10# |
45281-BZ070 |
— | ||
|
45286B
|
45286B
45286-BZ260-B0
Cover, Steering Column, Upr
[04.2017 -] B10# DK.GRAY,TRIM1# |
45286-BZ260-B0 |
— | ||
|
45287
|
45287
45287-BZ330-B0
Cover, Steering Column, Lwr
[04.2017 -] B10# DK.GRAY,TRIM1# |
45287-BZ330-B0 |
— | ||
|
45897
|
45897
45897-B2010 Bolt, Steering Lock Set[04.2017 -] B10# |
45897-B2010 |
from US $3.27 |
||
|
9004A16036
|
9004A16036
9004A-16036 Clip, No.2(For Cowl Side Trim) |
9004A-16036 |
US $1.97 |
||
|
9004119747
|
9004119747
90041-19747 BOLT |
90041-19747 |
from US $0.89 |
||
|
9004120097
|
9004120097
90041-20097 BOLT WWASHER |
90041-20097 |
US $1.02 |
