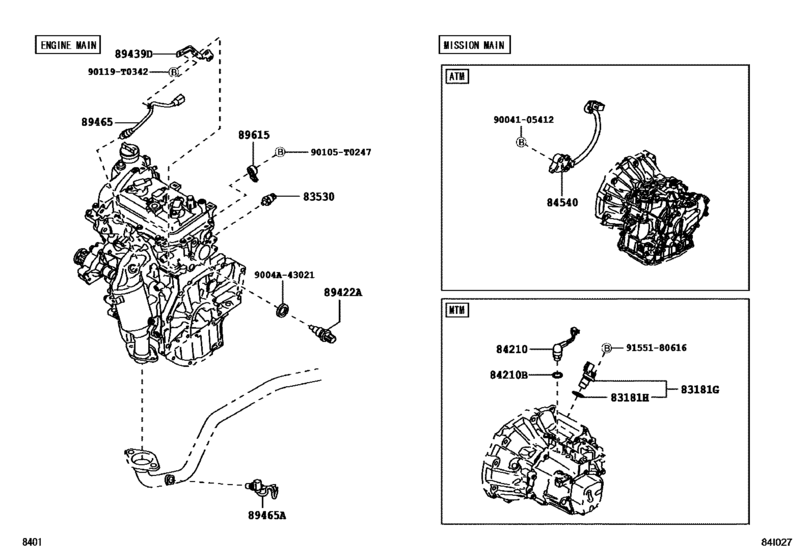

Switch & Relay & Computer ([04.2017 - ] ENGINE & TRANSMISSION (1704- )B101) Diagram Toyota AGYA/ WIGO
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- B101
- grade
- HIS
- ENGINE
- 3NRVE
- TRANSMISSION
- MTM
- Model
- AGYA
- From
- 04.2017
- No.of Doors
- 5D
- Vehicle Model
- AGYA
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83181G
|
83181G
83181-B6010 Sensor, Speedometer[04.2017 -] B10#..MTM..AGYA; B10#..MTM..AGYA W/ABS |
83181-B6010 |
US $141.23 |
||
|
83181H
|
83181H
90043-01278 Ring, O[04.2017 -] B10#..MTM..AGYA; B10#..MTM..AGYA W/ABS |
90043-01278 |
US $3.76 |
||
|
83530
|
83530
83530-52050 Switch Assy, Oil Pressure (For Engine)[04.2017 -] B10# |
83530-52050 |
US $23.50 |
||
|
84210
|
84210
84210-BZ070
Switch Assy, Back-Up Lamp
[04.2017 -] B10#..MTM |
84210-BZ070 |
— | ||
|
84210B
|
84210B
9004A-43006 Gasket (For Head Straight Screw Plug)[04.2017 -] B10#..MTM |
9004A-43006 |
US $1.97 |
||
|
89422A
|
89422A
89422-BZ030 Sensor, Water Temperature[04.2017 -] B101 |
89422-BZ030 |
US $36.80 |
||
|
89439D
|
89439D
89439-BZ180
Bracket, Sensor, No.1
[04.2017 -] B101 |
89439-BZ180 |
— | ||
|
89465
|
89465
89465-BZ470
Sensor, Oxygen
[04.2017 -] B101 |
89465-BZ470 |
— | ||
|
89615
|
89615
89615-BZ040
Sensor, Knock Control
[04.2017 -] B101 |
89615-BZ040 |
— | ||
|
90119T0342
|
90119T0342
90119-T0342
Bolt (For Transmission Control Cable Bracket)
|
90119-T0342 |
— | ||
|
9004105412
|
9004105412
90041-05412 Bolt (For Pawl Stopper Plate) |
90041-05412 |
US $2.18 |
||
|
9155180616
|
9155180616
91551-80616 BOLT FLANGE |
91551-80616 |
from US $0.63 |
