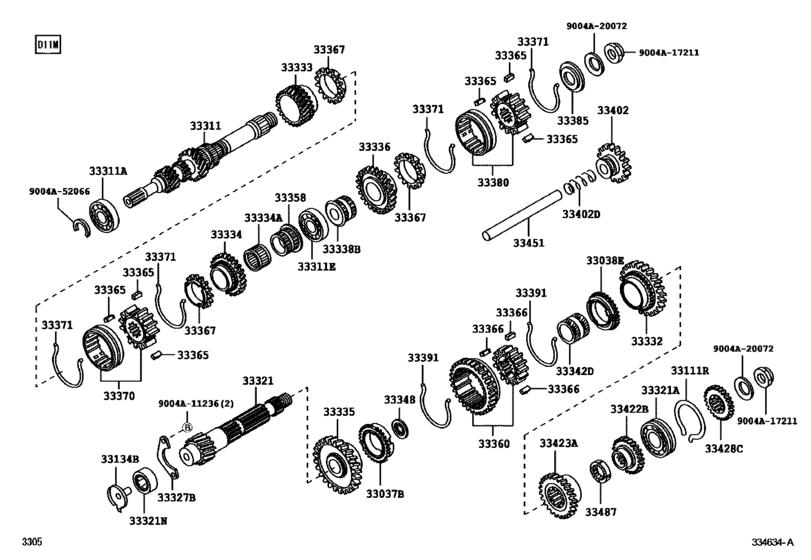

Transmission Gear (Mtm) ([12.2012 - ] (1212- )MTM) Diagram Toyota AGYA/ WIGO
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- B101
- grade
- HIS
- ENGINE
- 3NRVE
- TRANSMISSION
- MTM
- Model
- AGYA
- From
- 04.2017
- No.of Doors
- 5D
- Vehicle Model
- AGYA
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33037B
|
33037B
33037-BZ021
Ring Set, Synchronizer, No.1
[04.2017 -] B10#..MTM |
33037-BZ021 |
— | ||
|
33038E
|
33038E
33038-BZ021
Ring Set, Synchronizer, No.2
[04.2017 -] B10#..MTM |
33038-BZ021 |
— | ||
|
33111R
|
33111R
9004A-52067
Ring, Hole Snap(For Output Shaft Rear Bearing)
[04.2017 -] B10#..MTM |
9004A-52067 |
— | ||
|
33134B
|
33134B
33134-BZ020
Cover, Output Shaft(Mtm)
[04.2017 -] B10#..MTM |
33134-BZ020 |
— | ||
|
33311
|
33311
33311-BZ071
Shaft, Input
[04.2017 -] B101..MTM |
33311-BZ071 |
— | ||
|
33311A
|
33311A
9004A-36097
Bearing (For Input Shaft Front)
[04.2017 -] B101..MTM |
9004A-36097 |
— | ||
|
33321
|
33321
33321-BZ120
Shaft, Output
[04.2017 -] B101..MTM |
33321-BZ120 |
— | ||
|
33321A
|
33321A
9004A-36099
Bearing (For Output Shaft Rear)
[04.2017 -] B10#..MTM |
9004A-36099 |
— | ||
|
33321N
|
33321N
9004A-36098
Bearing (For Output Shaft Front)
[04.2017 -] B10#..MTM |
9004A-36098 |
— | ||
|
33327B
|
33327B
33326-BZ050
Plate, Output Shaft Bearing Lock
[04.2017 -] B10#..MTM |
33326-BZ050 |
— | ||
|
33332
|
33332
33332-BZ042
Gear, 2Nd
[04.2017 -] B101..MTM |
33332-BZ042 |
— | ||
|
33333
|
33333
33333-BZ080
Gear, 3Rd
[04.2017 -] B10#..MTM |
33333-BZ080 |
— | ||
|
33334
|
33334
33334-BZ060
Gear, 4Th
[04.2017 -] B10#..MTM |
33334-BZ060 |
— | ||
|
33334A
|
33334A
9004A-36057
Bearing, Input Shaft
[04.2017 -] B10#..MTM |
9004A-36057 |
— | ||
| replacement | |||||
|
33334A
|
33334A
90043-64119 Bearing, Input Shaft[04.2017 -] B10#..MTM |
90043-64119 |
US $5.59 |
||
|
33335
|
33335
33335-BZ060
Gear, 1St
[04.2017 -] B101..MTM |
33335-BZ060 |
— | ||
|
33336
|
33336
33336-BZ060
Gear, 5Th
[04.2017 -] B10#..MTM |
33336-BZ060 |
— | ||
|
33338B
|
33338B
33338-BZ020
Bush, 5Th Gear
[04.2017 -] B10#..MTM |
33338-BZ020 |
— | ||
|
33342D
|
33342D
33343-BZ030
Bush(For 2Nd Gear)
[04.2017 -] B10#..MTM |
33343-BZ030 |
— | ||
|
33348
|
33348
33348-BZ080
Washer, 1St Gear Thrust
[04.2017 -] B10#..MTM |
33348-BZ080 |
— | ||
|
33358
|
33358
33358-BZ030
Race, 4Th Gear Bearing Inner
[04.2017 -] B10#..MTM |
33358-BZ030 |
— | ||
|
33360
|
33360
33360-BZ082
Hub Assy, Synchronizer, No.1
[04.2017 -] B10#..MTM |
33360-BZ082 |
— | ||
|
33365
|
33365
33365-BZ041
Key, Synchromesh Shifting, No.1
[04.2017 -] B10#..MTM |
33365-BZ041 |
— | ||
|
33366
|
33366
33366-BZ041
Key, Synchromesh Shifting, No.2
[04.2017 -] B10#..MTM |
33366-BZ041 |
— | ||
|
33367
|
33367
33367-BZ041
Ring, Synchronizer, No.1
[04.2017 -] B10#..MTM |
33367-BZ041 |
— | ||
|
33370
|
33370
33370-BZ062
Hub Assy, Synchronizer, No.2
[04.2017 -] B10#..MTM |
33370-BZ062 |
— | ||
|
33371
|
33371
33371-BZ010 Spring, Synchromesh Shifting Key, No.1[04.2017 -] B10#..MTM |
33371-BZ010 |
US $1.46 |
||
|
33380
|
33380
33380-BZ062
Hub Assy, Synchronizer, No.3
[04.2017 -] B10#..MTM |
33380-BZ062 |
— | ||
|
33385
|
33385
33385-BZ051
Retainer, Shifting Key
[04.2017 -] B10#..MTM |
33385-BZ051 |
— | ||
|
33391
|
33391
33391-BZ040
Spring, Synchromesh Shifting Key, No.2
[04.2017 -] B10#..MTM |
33391-BZ040 |
— | ||
|
33402
|
33402
33402-BZ050
Gear Sub-Assy, Reverse Idler
[04.2017 -] B10#..MTM |
33402-BZ050 |
— | ||
|
33402D
|
33402D
9004A-50124
Spring(For Reverse Idler Gear)
[04.2017 -] B10#..MTM |
9004A-50124 |
— | ||
|
33422B
|
33422B
33422-BZ070
Gear, 4Th Driven
[04.2017 -] B10#..MTM |
33422-BZ070 |
— | ||
|
33423A
|
33423A
33423-BZ020
Gear, 3Rd Driven
[04.2017 -] B10#..MTM |
33423-BZ020 |
— | ||
|
33428C
|
33428C
33428-BZ050
Gear, 5Th Driven
[04.2017 -] B10#..MTM |
33428-BZ050 |
— | ||
|
33451
|
33451
33451-BZ060
Shaft, Reverse Idler Gear
[04.2017 -] B10#..MTM |
33451-BZ060 |
— | ||
|
33487
|
33487
33487-BZ021
Hub, Speedometer Drive Gear
[04.2017 -] B10#..MTM |
33487-BZ021 |
— | ||
|
9004A11236
|
9004A11236
9004A-11236
New Genuine Part
|
9004A-11236 |
— | ||
|
9004A17211
|
9004A17211
9004A-17211
New Genuine Part
|
9004A-17211 |
— | ||
|
9004A20072
|
9004A20072
9004A-20072
New Genuine Part
|
9004A-20072 |
— | ||
|
9004A52066
|
9004A52066
9004A-52066
New Genuine Part
|
9004A-52066 |
— | ||
