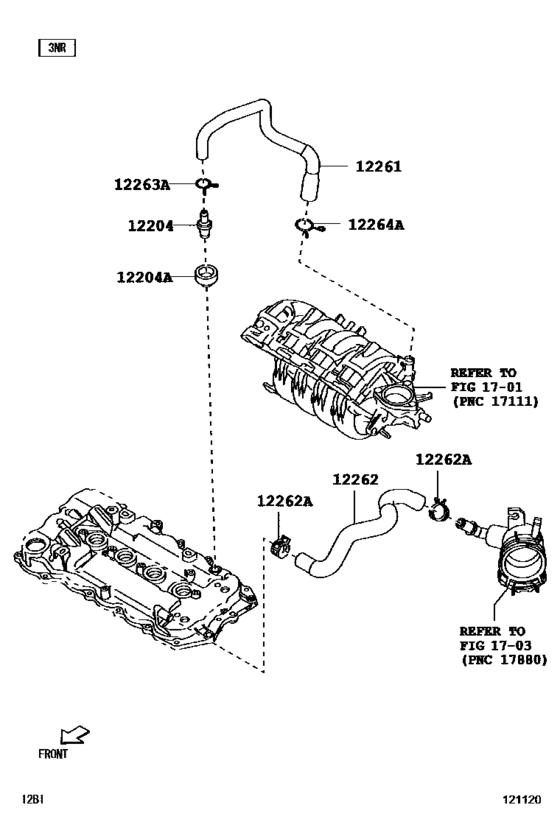

Ventilation Hose ([04.2017 - ] (1704- )3NRVE) Diagram Toyota AGYA/ WIGO
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- B101
- grade
- HIS
- ENGINE
- 3NRVE
- TRANSMISSION
- MTM
- Model
- AGYA
- From
- 04.2017
- No.of Doors
- 5D
- Vehicle Model
- AGYA
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12204
|
12204
12204-0Y020 Valve Sub-Assy, Ventilation[04.2017 -] 3NRVE..B101 |
12204-0Y020 |
US $12.37 |
||
|
12204A
|
12204A
90480-T0013
Grommet(For Ventilation System)
[04.2017 -] 3NRVE..B101 |
90480-T0013 |
— | ||
|
12261
|
12261
12261-BZ220
Hose, Ventilation
[04.2017 -] 3NRVE..B101 |
12261-BZ220 |
— | ||
|
12262
|
12262
12262-BZ120
Hose, Ventilation, No.2
[04.2017 -] 3NRVE..B101 |
12262-BZ120 |
— | ||
|
12262A
|
12262A
90466-T0020
Clip(For Water By-Pass Hose No.1)
[04.2017 -] 1KRVE,3NRVE..B10# |
90466-T0020 |
— | ||
|
12263A
|
12263A
90466-T0061
Clip Or Clamp(For Ventilation Hose)
[04.2017 -] 3NRVE..B101 |
90466-T0061 |
— | ||
|
12264A
|
12264A
90466-T0062
Clip Or Clamp(For Ventilation Hose)
[04.2017 -] 3NRVE..B101 |
90466-T0062 |
— |
