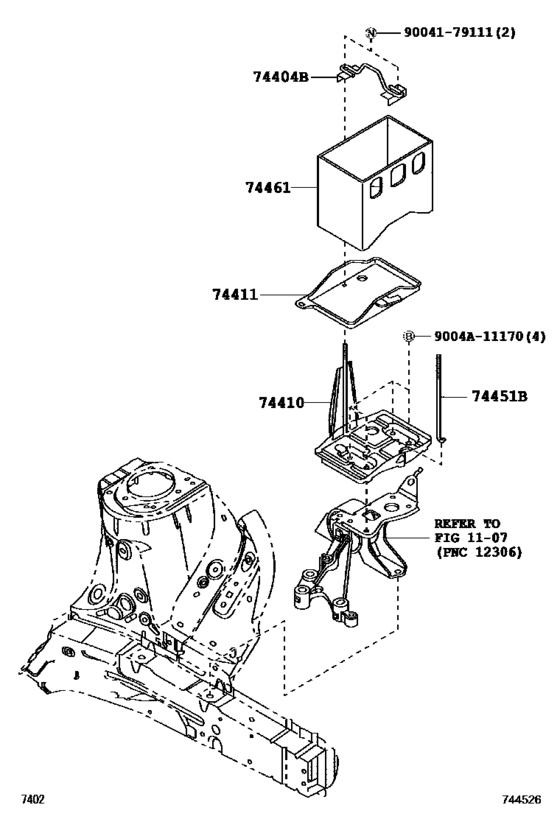

Battery Carrier ([04.2017 - ] (1704- )) Diagram Toyota AGYA/ WIGO
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- B101
- grade
- HIS
- ENGINE
- 3NRVE
- TRANSMISSION
- ATM
- Model
- AGYA
- From
- 04.2017
- No.of Doors
- 5D
- Vehicle Model
- AGYA
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
74404B
|
74404B
74404-BZ170
Clamp Sub-Assy, Battery
[04.2017 -] B10# |
74404-BZ170 |
— | ||
|
74410
|
74410
74410-BZ050
Carrier Assy, Battery
[04.2017 -] B10# |
74410-BZ050 |
— | ||
|
74411
|
74411
74411-BZ110
Carrier, Battery
[04.2017 -] B10# |
74411-BZ110 |
— | ||
|
74451B
|
74451B
74451-87Z07 Bolt, Battery ClampBATTERY CLAMP [04.2017 -] B10# |
74451-87Z07 |
US $3.50 |
||
|
74461
|
74461
74405-BZ061
Cover, Battery
[04.2017 -] B10# |
74405-BZ061 |
— | ||
|
9004A11170
|
9004A11170
9004A-11170
New Genuine Part
|
9004A-11170 |
— | ||
|
9004179111
|
9004179111
90041-79111 Nut, Wing (For Battery Clamp Bolt) |
90041-79111 |
US $4.48 |
