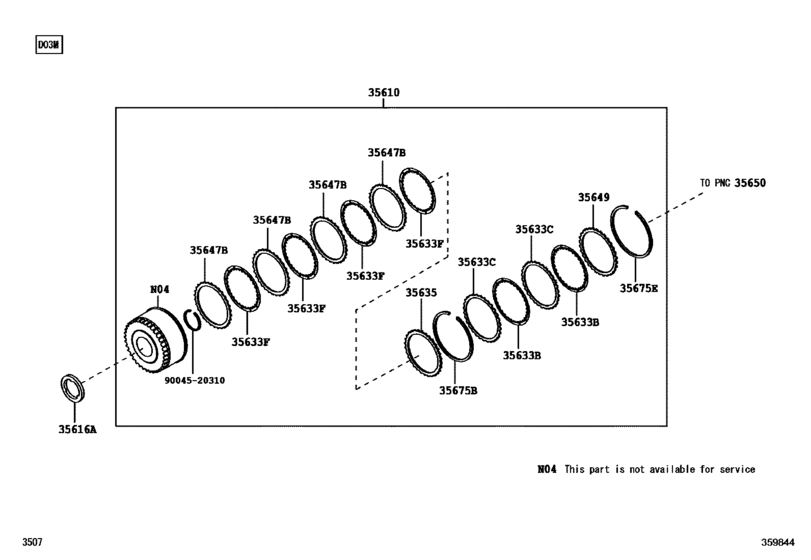

Brake Band & Multiple Disc Clutch (Atm) ([04.2017 - ] (1704- )B101..ATM) Diagram Toyota AGYA/ WIGO
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- B101
- grade
- HIS
- ENGINE
- 3NRVE
- TRANSMISSION
- ATM
- Model
- AGYA
- From
- 04.2017
- No.of Doors
- 5D
- Vehicle Model
- AGYA
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35610
|
35610
35610-B1030 Clutch Assy, Front Multiple Disc[04.2017 -] B101..ATM |
35610-B1030 |
from US $336.34 |
||
|
35616A
|
35616A
90043-74043 Bearing, Thrust Needle Roller (For Front Clutch Drum)[04.2017 -] B10#..ATM T=3.81 |
90043-74043 |
from US $9.09 |
||
|
35616A
|
35616A
90043-74044 Bearing, Thrust Needle Roller (For Front Clutch Drum)[04.2017 -] B10#..ATM T=3.41 |
90043-74044 |
from US $10.77 |
||
|
35616A
|
35616A
90043-74045 Bearing, Thrust Needle Roller (For Front Clutch Drum)[04.2017 -] B10#..ATM T=4.21 |
90043-74045 |
from US $10.77 |
||
|
35633B
|
35633B
35633-B1010 Disc, Clutch (For Forward Multiple Disc Clutch)[04.2017 -] B10#..ATM |
35633-B1010 |
US $11.42 |
||
|
35633C
|
35633C
35634-97206 Disc, Clutch (For Direct Multiple Disc Clutch)[04.2017 -] B10#..ATM |
35634-97206 |
US $11.71 |
||
|
35633F
|
35633F
35667-97206 Disc, Clutch (For Front Clutch)[04.2017 -] B101..ATM |
35667-97206 |
from US $22.01 |
||
|
35635
|
35635
35635-97201
Flange, Forward Clutch
[04.2017 -] B10#..ATM T=3.0 |
35635-97201 |
— | ||
|
35647B
|
35647B
35647-97204 Plate, Clutch, No.2[04.2017 -] B101..ATM |
35647-97204 |
from US $6.55 |
||
|
35649
|
35649
35675-97201 Flange, Reverse Clutch[04.2017 -] B10#..ATM T=3.0 |
35675-97201 |
US $33.82 |
||
|
35650
|
35650
35650-B1020 Clutch Assy, Rear Multiple Disc[04.2017 -] B101..ATM |
35650-B1020 |
US $694.93 |
||
|
35675B
|
35675B
90045-21164
Ring, Hole Snap (For Forward Clutch Flange)
[04.2017 -] B10#..ATM T=1.5 |
90045-21164 |
— | ||
|
35675B
|
35675B
90045-21166
Ring, Hole Snap (For Forward Clutch Flange)
[04.2017 -] B10#..ATM T=1.75 |
90045-21166 |
— | ||
|
35675B
|
35675B
90045-21167
Ring, Hole Snap (For Forward Clutch Flange)
[04.2017 -] B10#..ATM T=2.0 |
90045-21167 |
— | ||
|
35675B
|
35675B
90045-21168 Ring, Hole Snap (For Forward Clutch Flange)[04.2017 -] B10#..ATM T=2.25 |
90045-21168 |
from US $2.87 |
||
|
35675B
|
35675B
90045-21169 Ring, Hole Snap (For Forward Clutch Flange)[04.2017 -] B10#..ATM T=2.5 |
90045-21169 |
US $2.81 |
||
|
35675E
|
35675E
90045-21165
Ring, Hole Snap (For Rear Clutch Flange)
[04.2017 -] B10#..ATM |
90045-21165 |
— | ||
|
9004520310
|
9004520310
90045-20310
New Genuine Part
|
90045-20310 |
— |
