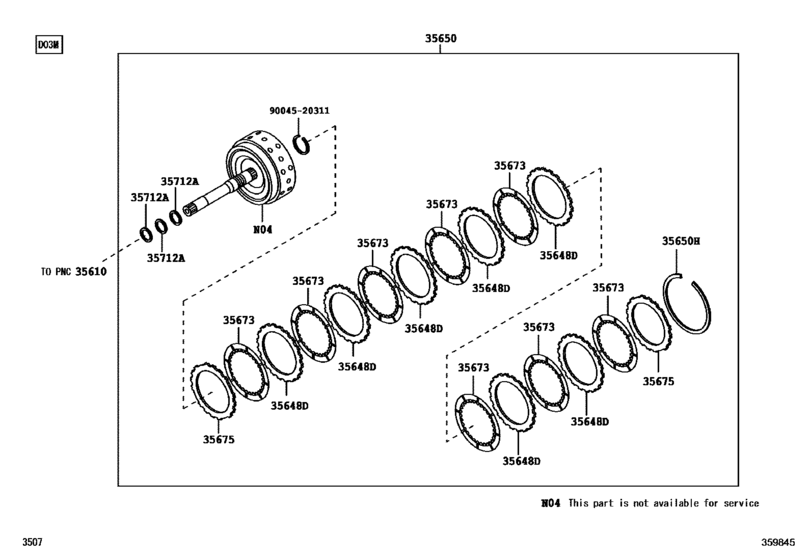

Brake Band & Multiple Disc Clutch (Atm) ([04.2017 - ] (1704- )B101..ATM) Diagram Toyota AGYA/ WIGO
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- B101
- grade
- HIS
- ENGINE
- 3NRVE
- TRANSMISSION
- ATM
- Model
- AGYA
- From
- 04.2017
- No.of Doors
- 5D
- Vehicle Model
- AGYA
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35610
|
35610
35610-B1030 Clutch Assy, Front Multiple Disc[04.2017 -] B101..ATM |
35610-B1030 |
from US $336.34 |
||
|
35648D
|
35648D
35648-97205 Plate, Clutch, No.3[04.2017 -] B101..ATM |
35648-97205 |
from US $5.37 |
||
|
35650
|
35650
35650-B1020 Clutch Assy, Rear Multiple Disc[04.2017 -] B101..ATM |
35650-B1020 |
US $694.93 |
||
|
35650H
|
35650H
90045-21170
Ring, Hole Snap (For Rear Multiple Disc Cluthc)
[04.2017 -] B10#..ATM T=1.5 |
90045-21170 |
— | ||
|
35650H
|
35650H
90045-21171
Ring, Hole Snap (For Rear Multiple Disc Cluthc)
[04.2017 -] B10#..ATM T=1.75 |
90045-21171 |
— | ||
|
35650H
|
35650H
90045-21172
Ring, Hole Snap (For Rear Multiple Disc Cluthc)
[04.2017 -] B10#..ATM T=2.0 |
90045-21172 |
— | ||
|
35650H
|
35650H
90045-21173 Ring, Hole Snap (For Rear Multiple Disc Cluthc)[04.2017 -] B10#..ATM T=2.25 |
90045-21173 |
from US $1.67 |
||
|
35673
|
35673
35677-B1011 Disc, Rear Clutch[04.2017 -] B101..ATM |
35677-B1011 |
from US $24.70 |
||
|
35675
|
35675
35689-B1010 Plate, Clutch, No.3[04.2017 -] B101..ATM T=3.0 |
35689-B1010 |
from US $9.32 |
||
|
35712A
|
35712A
35712-97201 Ring, Input Shaft Oil Seal[04.2017 -] B10#..ATM |
35712-97201 |
US $3.94 |
||
|
9004520311
|
9004520311
90045-20311
New Genuine Part
|
90045-20311 |
— |
