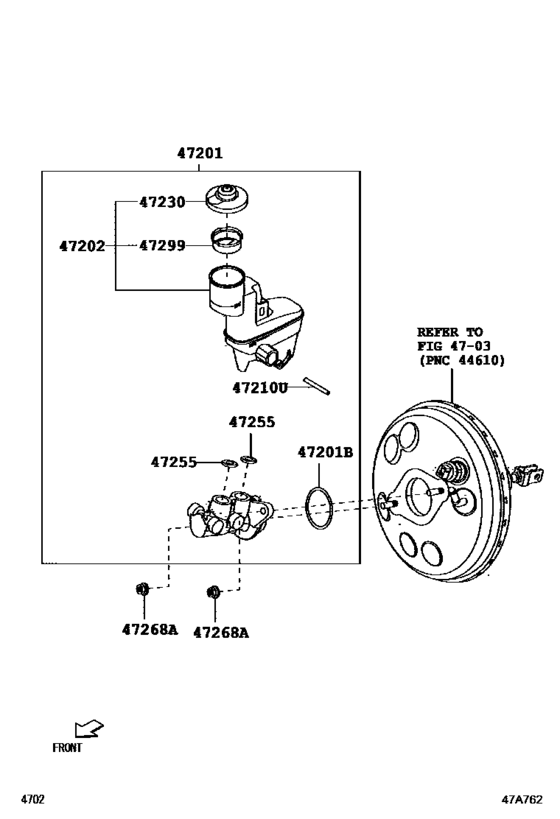

Brake Master Cylinder ([04.2017 - ] (1704- )) Diagram Toyota AGYA/ WIGO
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- B101
- grade
- HIS
- ENGINE
- 3NRVE
- TRANSMISSION
- ATM
- Model
- AGYA
- From
- 04.2017
- No.of Doors
- 5D
- Vehicle Model
- AGYA
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47201
|
47201
47201-BZ800
Cylinder Sub-Assy, Brake Master
[04.2017 -] B10#..AGYA |
47201-BZ800 |
— | ||
|
47201
|
47201
47201-BZ810
Cylinder Sub-Assy, Brake Master
[04.2017 -] B100..WIGO; B10#..AGYA W/ABS |
47201-BZ810 |
— | ||
|
47201B
|
47201B
90043-01352 Ring, O(For Brake Master Cylinder)[04.2017 -] B10# |
90043-01352 |
US $2.15 |
||
|
47202
|
47202
47220-BZ310
Reservoir Sub-Assy, Brake Master Cylinder
[04.2017 -] B10# |
47220-BZ310 |
— | ||
|
47210U
|
47210U
90042-43029 Pin, Straight(For Brake Master Cylinder)[04.2017 -] B10# |
90042-43029 |
US $2.18 |
||
|
47230
|
47230
47230-BZ130
Cap Assy, Brake Master Cylinder Reservoir Filler
[04.2017 -] B10# |
47230-BZ130 |
— | ||
|
47255
|
47255
47255-BZ110
Grommet, Master Cylinder Reservoir
[04.2017 -] B10# |
47255-BZ110 |
— | ||
|
47268A
|
47268A
90041-79124 Nut, Brake Master Cylinder[04.2017 -] B10# |
90041-79124 |
US $2.48 |
||
|
47299
|
47299
47299-BZ090
Strainer, Brake Master Cylinder Reservoir
[04.2017 -] B10# |
47299-BZ090 |
— |
