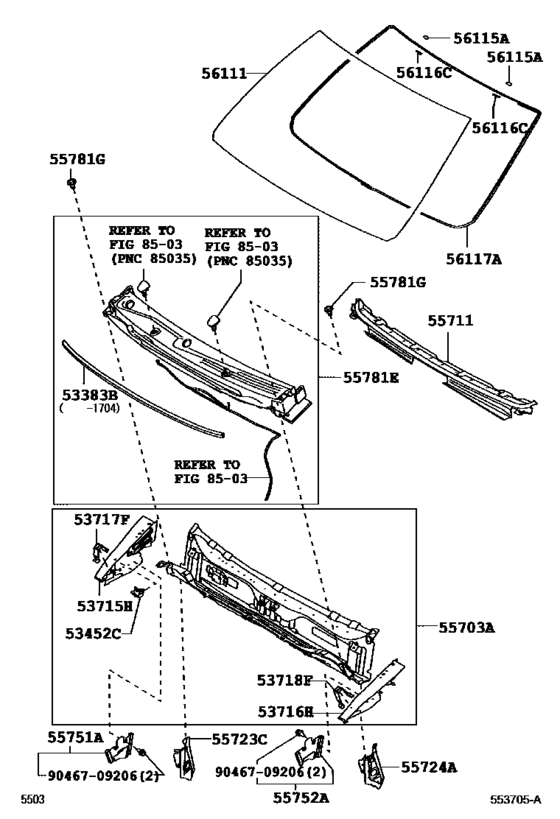

Cowl Panel & Windshield Glass ([12.2012 - ] (1212- )) Diagram Toyota AGYA/ WIGO
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- B101
- grade
- HIS
- ENGINE
- 3NRVE
- TRANSMISSION
- ATM
- Model
- AGYA
- From
- 04.2017
- No.of Doors
- 5D
- Vehicle Model
- AGYA
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53452C
|
53452C
53452-BZ010
Bracket, Hood Support Rod
[04.2017 -] B10# |
53452-BZ010 |
— | ||
|
53715H
|
53715H
55705-BZ170
Apron, Fender Side, Rh
[04.2017 -] B10#..AGYA |
55705-BZ170 |
— | ||
|
53716H
|
53716H
53716-BZ090
Apron, Fender Side, Lh
[04.2017 -] B10#..AGYA |
53716-BZ090 |
— | ||
|
53717F
|
53717F
53717-BZ050
Gusset, Fender Apron, Rh
[04.2017 -] B10# |
53717-BZ050 |
— | ||
|
53718F
|
53718F
53718-BZ090
Gusset, Fender Apron, Lh
[04.2017 -] B10# |
53718-BZ090 |
— | ||
|
55703A
|
55703A
55703-BZ550
Panel Sub-Assy, Cowl Top, Inner
[04.2017 -] B10#..AGYA |
55703-BZ550 |
— | ||
|
55711
|
55711
55701-BZ230
Panel, Cowl Top, Outer
[04.2017 -] B10#..AGYA |
55701-BZ230 |
— | ||
|
55723C
|
55723C
55723-BZ080
Reinforcement, Cowl Top Side, Rh
[04.2017 -] B10#..AGYA |
55723-BZ080 |
— | ||
|
55724A
|
55724A
55724-BZ030
Reinforcement, Cowl Top Side, Lh
[04.2017 -] B10#..HIS;B100..MIDS..WIGO |
55724-BZ030 |
— | ||
|
55751A
|
55751A
55751-BZ060
Shield, Cowl Ventilator Splash, Rh
[04.2017 -] B10# |
55751-BZ060 |
— | ||
|
55752A
|
55752A
55752-BZ040
Shield, Cowl Ventilator Splash, Lh
[04.2017 -] B10# |
55752-BZ040 |
— | ||
|
55781E
|
55781E
55708-BZ060
Louver Sub-Assy, Cowl Top Ventilator
[04.2017 -] B10#..AGYA |
55708-BZ060 |
— | ||
|
55781G
|
55781G
9004A-46323 Piece, Rear Bumper[04.2017 -] B10# |
9004A-46323 |
US $3.40 |
||
|
56111
|
56111
56111-BZ230
Glass, Windshield
[04.2017 -] B10# ASAHIMAS |
56111-BZ230 |
— | ||
|
56111
|
56111
56111-BZ350
Glass, Windshield
[04.2017 -] B10# MULIA GLASS |
56111-BZ350 |
— | ||
|
56115A
|
56115A
56115-97402 Stopper, Windshield Glass, No.1[04.2017 -] B10# |
56115-97402 |
from US $4.12 |
||
|
56116C
|
56116C
56116-97401 Stopper, Windshield Glass, No.2[04.2017 -] B10# |
56116-97401 |
from US $1.60 |
||
|
56117A
|
56117A
56117-BZ130
Dam, Window Glass Adhesive
[04.2017 -] B10# L=3201 |
56117-BZ130 |
— | ||
|
9046709206
|
9046709206
90467-09206 Clip, Front Air Shutter Seal |
90467-09206 |
from US $0.89 |
