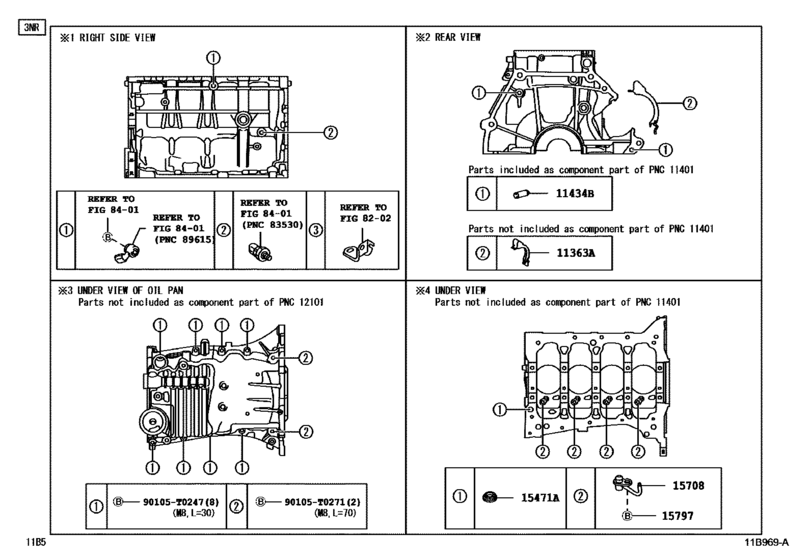

Cylinder Block ([04.2017 - ] (1704- )3NRVE) Diagram Toyota AGYA/ WIGO
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- B101
- grade
- HIS
- ENGINE
- 3NRVE
- TRANSMISSION
- ATM
- Model
- AGYA
- From
- 04.2017
- No.of Doors
- 5D
- Vehicle Model
- AGYA
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11363A
|
11363A
11363-BZ010
Cover, Flywheel Housing Side
[04.2017 -] 3NRVE..B101 |
11363-BZ010 |
— | ||
|
11434B
|
11434B
90250-10113 Pin, Straight(For Timing Gear Cover Set)[04.2017 -] 3NRVE..B101 L=22,OD=10 |
90250-10113 |
from US $0.97 |
||
|
15471A
|
15471A
90430-T0023
Gasket No.1(For Oil Pan)
[04.2017 -] 3NRVE..B101 |
90430-T0023 |
— | ||
|
15708
|
15708
15708-0Y040
Nozzle Sub-Assy, Oil, No.1
[04.2017 -] 3NRVE..B101 |
15708-0Y040 |
— | ||
|
15797
|
15797
90110-T0002
Bolt, Oil Nozzle Union
[04.2017 -] 3NRVE..B101 |
90110-T0002 |
— | ||
|
90105T0271
|
90105T0271
90105-T0271
Bolt(For Camshaft Housing Set)
|
90105-T0271 |
— |
