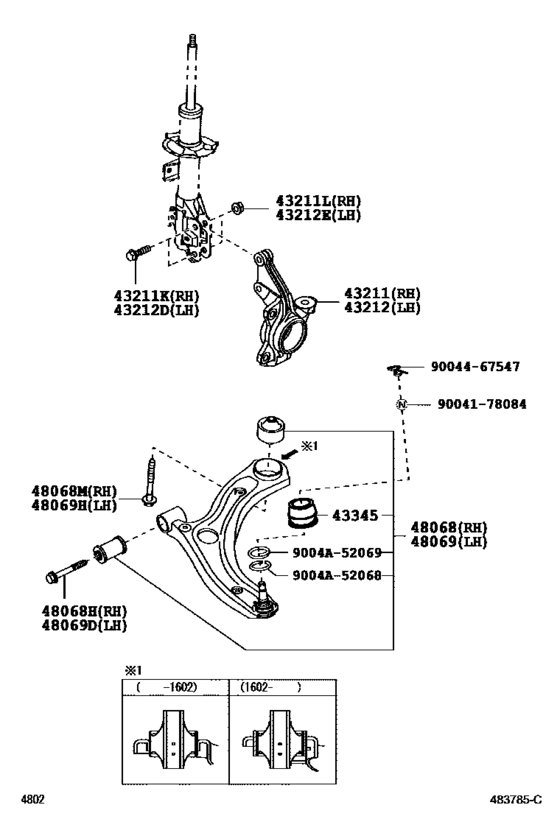

Front Axle Arm & Steering Knuckle ([12.2012 - ] (1212- )) Diagram Toyota AGYA/ WIGO
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- B101
- grade
- HIS
- ENGINE
- 3NRVE
- TRANSMISSION
- ATM
- Model
- AGYA
- From
- 04.2017
- No.of Doors
- 5D
- Vehicle Model
- AGYA
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
43211
|
43211
43211-BZ360
Knuckle, Steering, Rh
[04.2017 -] B10#..AGYA |
43211-BZ360 |
— | ||
|
43211
|
43211
43211-BZ370
Knuckle, Steering, Rh
[04.2017 -] B100..WIGO; B10#..AGYA W/ABS |
43211-BZ370 |
— | ||
|
43211K
|
43211K
90041-01652 Bolt (For Steering Knuckle Rh)[04.2017 -] B10# M12,L=51 |
90041-01652 |
US $5.73 |
||
|
43211L
|
43211L
90041-70393 Nut (For Steering Knuckle Rh)[04.2017 -] B10# |
90041-70393 |
US $3.76 |
||
|
43212
|
43212
43212-BZ360
Knuckle, Steering, Lh
[04.2017 -] B10#..AGYA |
43212-BZ360 |
— | ||
|
43212
|
43212
43212-BZ370
Knuckle, Steering, Lh
[04.2017 -] B100..WIGO; B10#..AGYA W/ABS |
43212-BZ370 |
— | ||
|
43212D
|
43212D
90041-01652 Bolt (For Steering Knuckle Rh)[04.2017 -] B10# M12,L=51 |
90041-01652 |
US $5.73 |
||
|
43212E
|
43212E
90041-70393 Nut (For Steering Knuckle Rh)[04.2017 -] B10# |
90041-70393 |
US $3.76 |
||
|
43345
|
43345
43345-BZ060
Cover, Lower Ball Joint Dust
[04.2017 -] B10# |
43345-BZ060 |
— | ||
|
48068
|
48068
48068-BZ370
Arm Sub-Assy, Front Suspension, Lower No.1 Rh
[04.2017 -] B10# |
48068-BZ370 |
— | ||
|
48068H
|
48068H
90041-20192 Bolt (For Front Suspension Lower Arm No.1)[04.2017 -] B10# |
90041-20192 |
US $8.42 |
||
|
48068M
|
48068M
90041-05475 Bolt(For Front Suspension Lower Arm No.2)[04.2017 -] B10# |
90041-05475 |
US $8.42 |
||
|
48069
|
48069
48069-BZ370
Arm Sub-Assy, Front Suspension, Lower No.1 Lh
[04.2017 -] B10# |
48069-BZ370 |
— | ||
|
48069D
|
48069D
90041-20192 Bolt (For Front Suspension Lower Arm No.1)[04.2017 -] B10# |
90041-20192 |
US $8.42 |
||
|
48069H
|
48069H
90041-05475 Bolt(For Front Suspension Lower Arm No.2)[04.2017 -] B10# |
90041-05475 |
US $8.42 |
||
|
9004A52068
|
9004A52068
9004A-52068
New Genuine Part
|
9004A-52068 |
— | ||
|
9004A52069
|
9004A52069
9004A-52069
New Genuine Part
|
9004A-52069 |
— | ||
|
9004178084
|
9004178084
90041-78084 NUT FLANGE |
90041-78084 |
US $2.33 |
||
|
9004467547
|
9004467547
90044-67547 CLIP |
90044-67547 |
US $2.15 |
