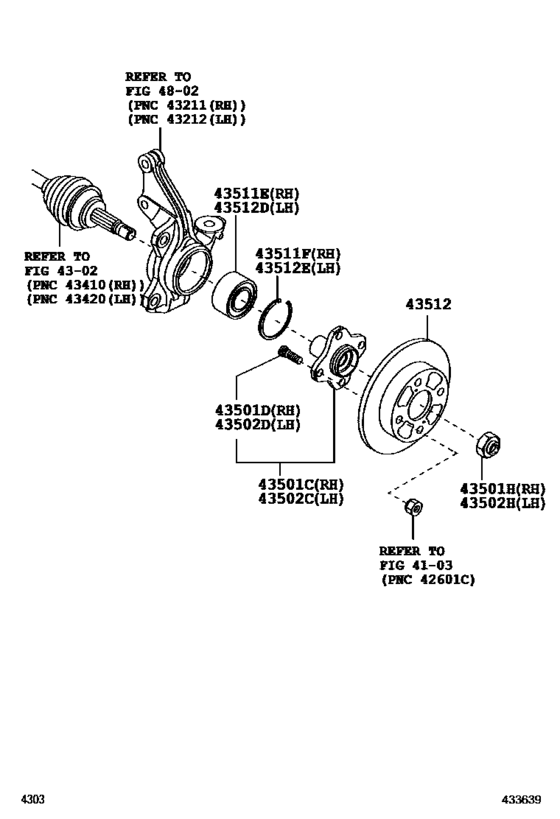

Front Axle Hub ([12.2012 - ] (1212- )) Diagram Toyota AGYA/ WIGO
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- B101
- grade
- HIS
- ENGINE
- 3NRVE
- TRANSMISSION
- ATM
- Model
- AGYA
- From
- 04.2017
- No.of Doors
- 5D
- Vehicle Model
- AGYA
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
43501C
|
43501C
43502-BZ150
Hub Sub-Assy, Front Axle, Rh
[04.2017 -] B10# |
43502-BZ150 |
— | ||
|
43501D
|
43501D
90049-12056 Bolt, Hub (For Rear Axle)[04.2017 -] B10# |
90049-12056 |
from US $4.29 |
||
|
43501H
|
43501H
90041-79274 Nut (For Front Axle Shaft Rh)[04.2017 -] B10# |
90041-79274 |
US $8.78 |
||
|
43502C
|
43502C
43502-BZ150
Hub Sub-Assy, Front Axle, Rh
[04.2017 -] B10# |
43502-BZ150 |
— | ||
|
43502D
|
43502D
90049-12056 Bolt, Hub (For Rear Axle)[04.2017 -] B10# |
90049-12056 |
from US $4.29 |
||
|
43502H
|
43502H
90041-79274 Nut (For Front Axle Shaft Rh)[04.2017 -] B10# |
90041-79274 |
US $8.78 |
||
|
43511E
|
43511E
43560-BZ010
Bearing (For Front Axle Hub Rh)
[04.2017 -] B100..WIGO; B10#..AGYA W/ABS |
43560-BZ010 |
— | ||
|
43511E
|
43511E
9004A-36104
Bearing (For Front Axle Hub Rh)
[04.2017 -] B10#..AGYA |
9004A-36104 |
— | ||
|
43511F
|
43511F
90045-21111 Ring, Hole Snap (For Front Axle Hub Rh)[04.2017 -] B10# |
90045-21111 |
from US $1.08 |
||
|
43512
|
43512
43512-BZ230
Disc, Front
[04.2017 -] B100..WIGO W/O SURFACETREATMENT; B10#..ATM..AGYA BRUNEI,W/O SURFACETREATMENT |
43512-BZ230 |
— | ||
|
43512
|
43512
43512-BZ270
Disc, Front
[04.2017 -] B10#..AGYA W/SURFACE TREATMENT |
43512-BZ270 |
— | ||
|
43512D
|
43512D
43560-BZ010
Bearing (For Front Axle Hub Rh)
[04.2017 -] B100..WIGO; B10#..AGYA W/ABS |
43560-BZ010 |
— | ||
|
43512D
|
43512D
9004A-36104
Bearing (For Front Axle Hub Rh)
[04.2017 -] B10#..AGYA |
9004A-36104 |
— | ||
|
43512E
|
43512E
90045-21111 Ring, Hole Snap (For Front Axle Hub Rh)[04.2017 -] B10# |
90045-21111 |
from US $1.08 |
