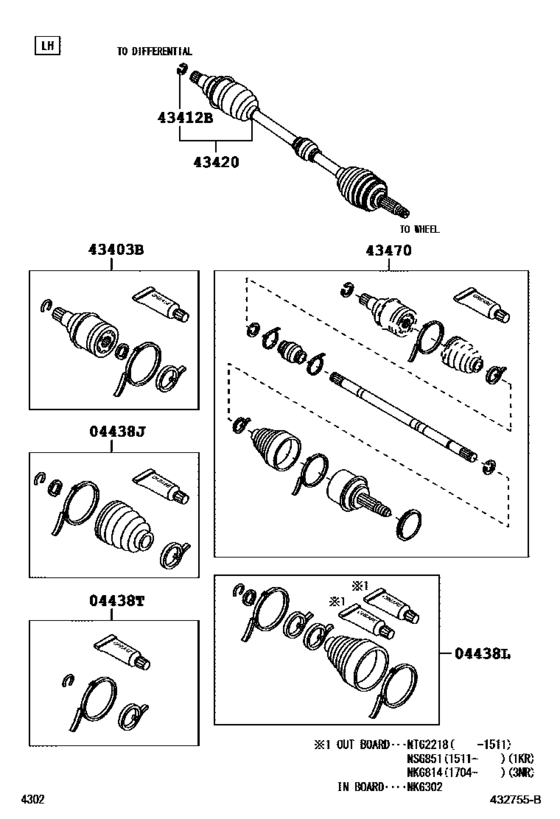

Front Drive Shaft ([12.2012 - ] LH (1212- )) Diagram Toyota AGYA/ WIGO
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- B101
- grade
- HIS
- ENGINE
- 3NRVE
- TRANSMISSION
- ATM
- Model
- AGYA
- From
- 04.2017
- No.of Doors
- 5D
- Vehicle Model
- AGYA
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438J
|
04438J
04437-BZ050
Boot Kit, Front Drive Shaft Inboard Joint, Rh
[04.2017 -] B101 NTN |
04437-BZ050 |
— | ||
|
04438L
|
04438L
04426-BZ060
Boot Kit, Front Drive Shaft Outboard Joint, Lh
[04.2017 -] B101 |
04426-BZ060 |
— | ||
|
04438T
|
04438T
04435-BZ060
Clamp Kit, Front Drive Shaft, Rh
[04.2017 -] B101 NTN |
04435-BZ060 |
— | ||
|
43403B
|
43403B
43408-B9510
Joint Set, Front Axle Inboard, Lh
[04.2017 -] B101 NTN |
43408-B9510 |
— | ||
|
43412B
|
43412B
90045-20298 Ring, Hole Snap (For Front Drive Inboard Joint)[04.2017 -] B10# |
90045-20298 |
from US $0.78 |
||
|
43420
|
43420
43420-BZ120
Shaft Assy, Front Drive, Lh
[04.2017 -] B101 |
43420-BZ120 |
— | ||
|
43470
|
43470
43412-B9340
Shaft Assy, Front Drive Outboard Joint, Lh
[04.2017 -] B101 |
43412-B9340 |
— |
