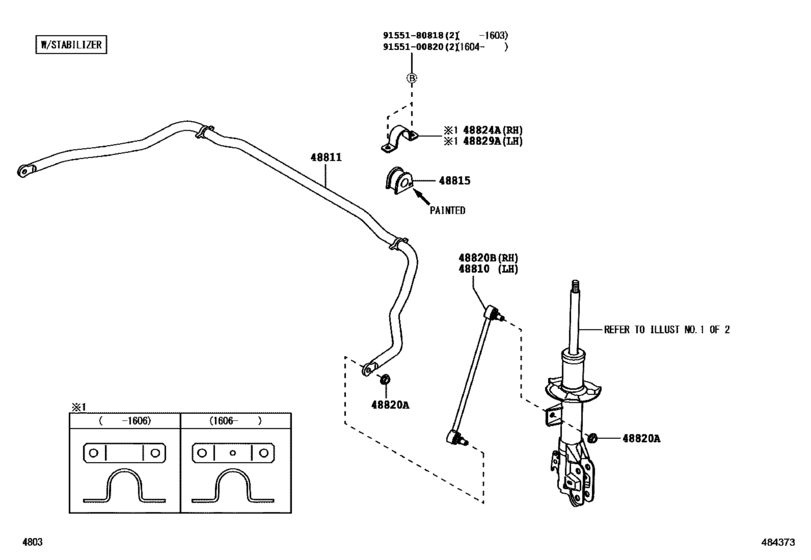

Front Spring & Shock Absorber ([12.2012 - ] W/STABILIZER (1212- )HI,HIS,MIDS) Diagram Toyota AGYA/ WIGO
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- B101
- grade
- HIS
- ENGINE
- 3NRVE
- TRANSMISSION
- ATM
- Model
- AGYA
- From
- 04.2017
- No.of Doors
- 5D
- Vehicle Model
- AGYA
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48810
|
48810
48820-BZ030
Link Assy, Front Stabilizer, Lh
[04.2017 -] B10# |
48820-BZ030 |
— | ||
|
48811
|
48811
48811-BZ170
Bar, Stabilizer, Front
[04.2017 -] B10# |
48811-BZ170 |
— | ||
|
48815
|
48815
48815-BZ240
Bush, Front Stabilizer Bar, No.1
[04.2017 -] B10# PAINTED=GREEN |
48815-BZ240 |
— | ||
|
48820A
|
48820A
94151-21001 Nut(For Front Suspension Upper Arm Rh)[04.2017 -] B10# |
94151-21001 |
from US $0.93 |
||
|
48820B
|
48820B
48820-BZ030
Link Assy, Front Stabilizer, Lh
[04.2017 -] B10# |
48820-BZ030 |
— | ||
|
48824A
|
48824A
48824-BZ180
Bracket, Front Stabilizer, No.1 Rh
[04.2017 -] B10# |
48824-BZ180 |
— | ||
|
48829A
|
48829A
48824-BZ180
Bracket, Front Stabilizer, No.1 Rh
[04.2017 -] B10# |
48824-BZ180 |
— | ||
|
9155100820
|
9155100820
91551-00820 Bolt, Hexagon (For Rear Spring Seat Bolt) |
91551-00820 |
US $1.43 |
||
|
9155180818
|
9155180818
91551-80818 Bolt, Union(For Clutch Master Cylinder) |
91551-80818 |
US $1.43 |
