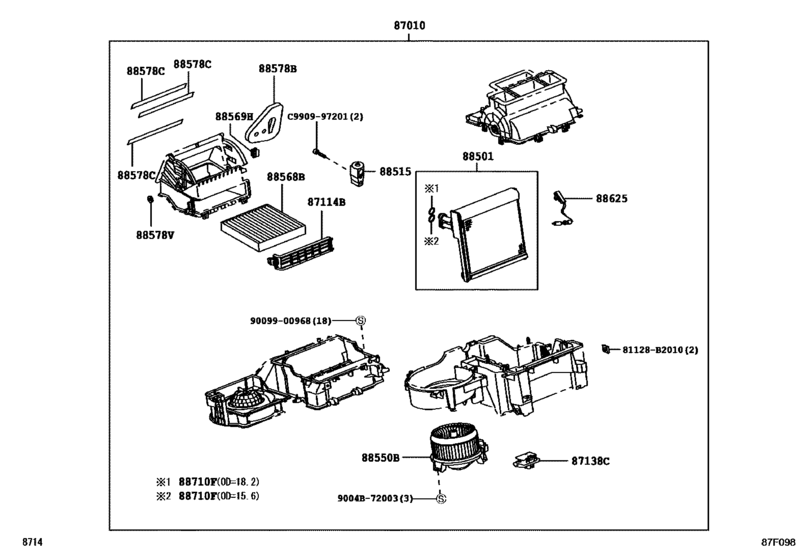

Heating & Air Conditioning - Cooler Unit ([04.2015 - ] (1504- )AGYA) Diagram Toyota AGYA/ WIGO
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- B101
- grade
- HIS
- ENGINE
- 3NRVE
- TRANSMISSION
- ATM
- Model
- AGYA
- From
- 04.2017
- No.of Doors
- 5D
- Vehicle Model
- AGYA
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87010
|
87010
87010-BZ430
Unit Assy, Air Conditioner
[04.2017 -] B10#..AGYA |
87010-BZ430 |
— | ||
|
87114B
|
87114B
87114-BZ020 Cover, Heater[04.2017 -] B10# |
87114-BZ020 |
from US $13.45 |
||
|
87138C
|
87138C
87138-BZ080
Resistor, Blower
[04.2017 -] B10#..AGYA |
87138-BZ080 |
— | ||
|
88501
|
88501
88501-BZ150
Evaporator Sub-Assy, Cooler, No.1
[04.2017 -] B10#..AGYA |
88501-BZ150 |
— | ||
|
88515
|
88515
88515-BZ100
Valve, Cooler Expansion
[04.2017 -] B10#..AGYA; B100..HIS..WIGO VIETNAM |
88515-BZ100 |
— | ||
|
88550B
|
88550B
88550-BZ070 Motor Assy, Blower[04.2017 -] B10#..AGYA |
88550-BZ070 |
US $203.84 |
||
|
88568B
|
88568B
88568-BZ060 Filter, Air[04.2017 -] B10# |
88568-BZ060 |
US $54.09 |
||
|
88569H
|
88569H
88888-BZ010
Clamp
[04.2017 -] B10#..AGYA |
88888-BZ010 |
— | ||
|
88578B
|
88578B
88578-BZ620
Packing, Cooling Unit, No.1
[04.2017 -] B10#..AGYA |
88578-BZ620 |
— | ||
|
88578C
|
88578C
88578-BZ740
Packing, Cooling Unit, No.2
[04.2017 -] B10#..AGYA |
88578-BZ740 |
— | ||
|
88578V
|
88578V
88578-BZ770
Packing, Cooling Unit, No.3
[04.2017 -] B10#..AGYA |
88578-BZ770 |
— | ||
|
88625
|
88625
88625-BZ060 Thermistor, Cooler, No.1[04.2017 -] B10# |
88625-BZ060 |
US $29.41 |
||
|
88710F
|
88710F
15188-87402 Ring, O[04.2017 -] B10# OD=15.6 ID=10.8 |
15188-87402 |
from US $2.09 |
||
|
88710F
|
88710F
15188-87403 Ring, O(For Cooler Refrigerant Suction Hose)[04.2017 -] B10# OD=18.2 ID=13.4 |
15188-87403 |
from US $1.94 |
||
|
9004B72003
|
9004B72003
9004B-72003
New Genuine Part
|
9004B-72003 |
— | ||
|
81128B2010
|
81128B2010
81128-B2010 Nut, Headlamp |
81128-B2010 |
US $2.48 |
||
|
9009900968
|
9009900968
90099-00968 Screw(For Air Conditioner Unit) |
90099-00968 |
US $0.80 |
||
|
C990997201
|
C990997201
C9909-97201 Bolt(For Cooler Expansion Valve) |
C9909-97201 |
US $2.15 |
