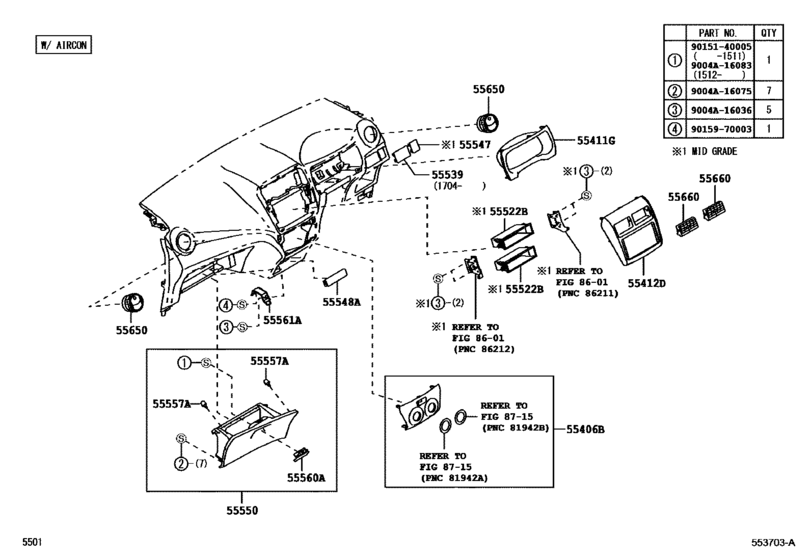

Instrument Panel & Glove Compartment ([12.2012 - ] W/AIRCON (1212- )AGYA) Diagram Toyota AGYA/ WIGO
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- B101
- grade
- HIS
- ENGINE
- 3NRVE
- TRANSMISSION
- ATM
- Model
- AGYA
- From
- 04.2017
- No.of Doors
- 5D
- Vehicle Model
- AGYA
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55406B
|
55406B
55406-BZ660-B2
Panel Sub-Assy, Instrument Cluster Finish, Lower Center
[04.2017 -] B10#..HIS;B100..MIDS..WIGO SILVER,TRIM1# |
55406-BZ660-B2 |
— | ||
|
55411G
|
55411G
55411-BZ190-C0
Panel, Instrument Cluster Finish, No.1
[04.2017 -] B10# BLACK,TRIM1# |
55411-BZ190-C0 |
— | ||
|
55412D
|
55412D
55412-BZ740-B0
Panel, Instrument Cluster Finish, Center
[04.2017 -] B10#..HIS;B100..MIDS..AGYA SILVER,TRIM1# |
55412-BZ740-B0 |
— | ||
|
55548A
|
55548A
55548-BZ040-B0
Cover, Instrument Panel Hole
[04.2017 -] B10# DK.GRAY,TRIM1# |
55548-BZ040-B0 |
— | ||
|
55550
|
55550
55550-BZ081-B0
Door Assy, Glove Compartment
[04.2017 -] B10#..AGYA DK.GRAY,TRIM1# |
55550-BZ081-B0 |
— | ||
|
55557A
|
55557A
55557-B2040 Cushion, Glove Compartment Door Check[04.2017 -] B10# |
55557-B2040 |
US $1.89 |
||
|
55560A
|
55560A
55560-BZ050-B0
Lock Assy, Glove Compartment Door
[04.2017 -] B10# DK.GRAY,TRIM1# |
55560-BZ050-B0 |
— | ||
|
55561A
|
55561A
55561-BZ100
Striker, Glove Compartment Door Lock
[04.2017 -] B10#..AGYA |
55561-BZ100 |
— | ||
|
55650
|
55650
55650-BZ150-B0
Register Assy, Instrument Panel, No.1
[04.2017 -] B10#..HIS;B100..MIDS..WIGO DK.GRAY,TRIM1# |
55650-BZ150-B0 |
— | ||
|
55660
|
55660
55660-BZ060-C0
Register Assy, Instrument Panel, No.2
[04.2017 -] B10# BLACK,TRIM1# |
55660-BZ060-C0 |
— | ||
|
9004A16036
|
9004A16036
9004A-16036 Clip, No.2(For Cowl Side Trim) |
9004A-16036 |
US $1.97 |
||
|
9015140005
|
9015140005
90151-40005 New Genuine Part |
90151-40005 |
US $0.44 |
||
|
9015970003
|
9015970003
90159-70003 Bolt, W/washer |
90159-70003 |
from US $0.52 |
