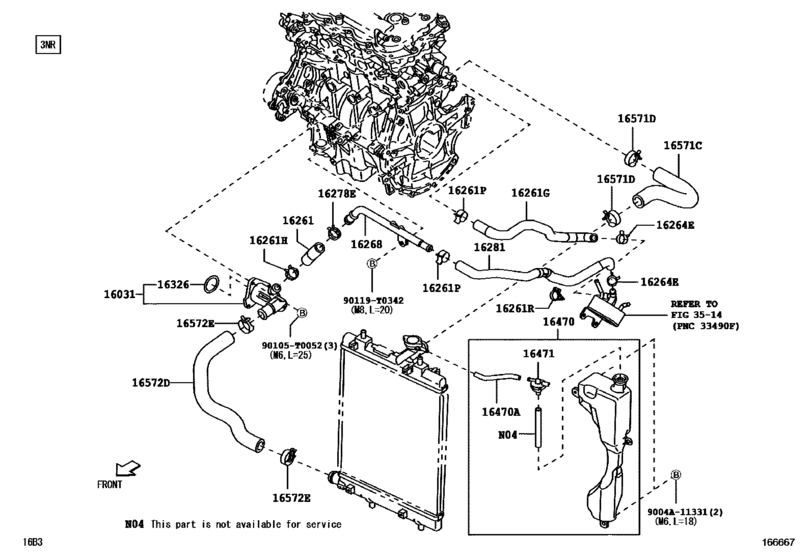

Radiator & Water Outlet ([04.2017 - ] HOSE (1704- )3NRVE..ATM) Diagram Toyota AGYA/ WIGO
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- B101
- grade
- HIS
- ENGINE
- 3NRVE
- TRANSMISSION
- ATM
- Model
- AGYA
- From
- 04.2017
- No.of Doors
- 5D
- Vehicle Model
- AGYA
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16031
|
16031
16031-BZ021
Water Inlet Sub-Assy, W/thermostat
[04.2017 -] 3NRVE..B101 |
16031-BZ021 |
— | ||
|
16261
|
16261
16261-BZ390
Hose, Water By-Pass
[04.2017 -] 3NRVE..B101 |
16261-BZ390 |
— | ||
|
16261G
|
16261G
16261-BZ340
Hose, Water By-Pass, No.1
[04.2017 -] 3NRVE..B101..ATM |
16261-BZ340 |
— | ||
|
16261H
|
16261H
90466-T0050
Clip(For Water By-Pass Hose No.1)
[04.2017 - 05.2017] 3NRVE..B101 |
90466-T0050 |
— | ||
|
16261P
|
16261P
96137-52501 Clip Or Clamp(For Ventilation Hose)[04.2017 -] 1KRVE,3NRVE..B10#..ATM |
96137-52501 |
from US $4.30 |
||
|
16261R
|
16261R
90044-64407 Clamp Or Clip(For Water By-Pass Hose)[04.2017 -] 1KRVE,3NRVE..B10#..ATM |
90044-64407 |
US $2.33 |
||
|
16264E
|
16264E
96136-42101 Clip, Hose(For Radiator Hose Sub-Assy)[04.2017 -] 1KRVE,3NRVE..B10#..ATM |
96136-42101 |
from US $2.85 |
||
|
16268
|
16268
16268-BZ090
Pipe, Water By-Pass, No.1
[04.2017 -] 3NRVE..B101 |
16268-BZ090 |
— | ||
|
16278E
|
16278E
90466-27001 Clamp Or Clip, Hose(For Water By-Pass Hose)[04.2017 - 05.2017] 3NRVE..B101 |
90466-27001 |
US $3.58 |
||
|
16281
|
16281
16261-BZ350
Hose, Water By-Pass, No.4
[04.2017 -] 3NRVE..B101..ATM |
16261-BZ350 |
— | ||
|
16326
|
16326
16326-0Y010
Gasket, Water Inlet Housing, No.2
[04.2017 -] 3NRVE..B101 |
16326-0Y010 |
— | ||
|
16470
|
16470
16470-BZ230
Tank Assy, Radiator Reserve
[04.2017 -] 1KRVE,3NRVE..B10# |
16470-BZ230 |
— | ||
|
16470A
|
16470A
16472-BZ080
Hose Or Pipe(For Radiator Reserve Tank)
[04.2017 -] 1KRVE,3NRVE..B10# |
16472-BZ080 |
— | ||
|
16471
|
16471
16471-BZ090
Cap Sub-Assy, Reserve Tank
[04.2017 -] 1KRVE,3NRVE..B10# |
16471-BZ090 |
— | ||
|
16571C
|
16571C
16571-BZ330
Hose, Radiator, No.1
[04.2017 -] 3NRVE..B101 |
16571-BZ330 |
— | ||
|
16571D
|
16571D
90044-67482 Clip[04.2017 -] 3NRVE..B101 |
90044-67482 |
US $5.73 |
||
|
16572D
|
16572D
16572-BZ290
Hose, Radiator, No.2
[04.2017 -] 3NRVE..B101 |
16572-BZ290 |
— | ||
|
16572E
|
16572E
90044-67482 Clip[04.2017 -] 3NRVE..B101 |
90044-67482 |
US $5.73 |
||
|
90105T0052
|
90105T0052
90105-T0052
New Genuine Part
|
90105-T0052 |
— | ||
|
90119T0342
|
90119T0342
90119-T0342
Bolt (For Transmission Control Cable Bracket)
|
90119-T0342 |
— |
