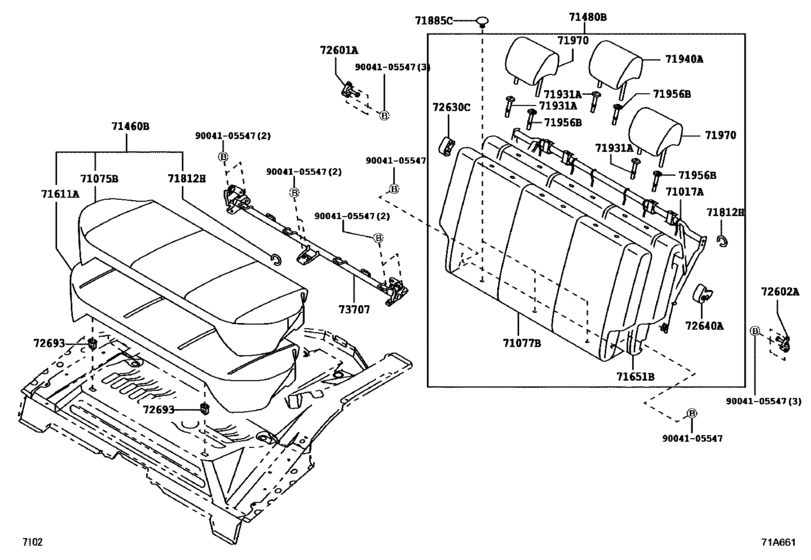

Rear Seat & Seat Track ([04.2017 - ] (1704- )) Diagram Toyota AGYA/ WIGO
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- B101
- grade
- HIS
- ENGINE
- 3NRVE
- TRANSMISSION
- ATM
- Model
- AGYA
- From
- 04.2017
- No.of Doors
- 5D
- Vehicle Model
- AGYA
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71017A
|
71017A
71017-BZ350
Frame Sub-Assy, Rear Seat Back
[04.2017 -] B10# |
71017-BZ350 |
— | ||
|
71075B
|
71075B
71075-BZJ00-C0
Cover, Rear Seat Cushion (For Bench Type)
[04.2017 -] B10# -,TRIM1# |
71075-BZJ00-C0 |
— | ||
|
71077B
|
71077B
71077-BZF90-C0
Cover, Rear Seat Back (For Bench Type)
[04.2017 -] B10# -,TRIM1# |
71077-BZF90-C0 |
— | ||
|
71460B
|
71460B
71460-BZL90-B0
Cushion Assy, Rear Seat (For Bench Type)
[04.2017 -] B10# -,TRIM1# |
71460-BZL90-B0 |
— | ||
|
71480B
|
71480B
71480-BZJ00-B0
Back Assy, Rear Seat (For Bench Type)
[04.2017 -] B10# -,TRIM1# |
71480-BZJ00-B0 |
— | ||
|
71611A
|
71611A
71503-BZ421
Pad, Rear Seat Cushion, Rh
[04.2017 -] B10# |
71503-BZ421 |
— | ||
|
71651B
|
71651B
71507-BZ440
Pad, Rear Seat Back(For Bench Type)
[04.2017 -] B10# |
71507-BZ440 |
— | ||
|
71812H
|
71812H
90468-18008 Clip (For Rear Seat Back)[04.2017 -] B10# |
90468-18008 |
from US $0.70 |
||
| replacement | |||||
|
71812H
|
71812H
90468-16019 Clip (For Rear Seat Back)[04.2017 -] B10# |
90468-16019 |
from US $0.84 |
||
|
71885C
|
71885C
90044-67414-C0
Clip(For Rear Seat Back Carpet)
[04.2017 -] B10# - |
90044-67414-C0 |
— | ||
|
71931A
|
71931A
71970-47010-B2 Support, Rear Seat Headrest[04.2017 -] B10# W(LOCK),DK.GRAY,TRIM1# |
71970-47010-B2 |
US $11.65 |
||
|
71940A
|
71940A
71940-BZB90-C0
Headrest Assy, Rear Seat
[04.2017 -] B10# -,TRIM1# |
71940-BZB90-C0 |
— | ||
|
71956B
|
71956B
71956-47010-B2 Support, Rear Seat Headrest[04.2017 -] B10# W/O(LOCK),DK.GRAY,TRIM1# |
71956-47010-B2 |
US $9.46 |
||
|
71970
|
71970
71940-BZB70-C0
Headrest Assy, Rear Seat
[04.2017 -] B10# -,TRIM1# |
71940-BZB70-C0 |
— | ||
|
72601A
|
72601A
72601-BZ030
Striker Sub-Assy, Rear Seat Back Look, Rh
[04.2017 -] B10# |
72601-BZ030 |
— | ||
|
72602A
|
72602A
72601-BZ030
Striker Sub-Assy, Rear Seat Back Look, Rh
[04.2017 -] B10# |
72601-BZ030 |
— | ||
|
72630C
|
72630C
72630-BZ040-B0
Lock Assy, Rear Seat Back, Rh
[04.2017 -] B10# DK.GRAY,TRIM1# |
72630-BZ040-B0 |
— | ||
|
72640A
|
72640A
72640-BZ050-B0
Lock Assy, Rear Seat Back, Lh
[04.2017 -] B10# DK.GRAY,TRIM1# |
72640-BZ050-B0 |
— | ||
|
72693
|
72693
72693-BZ020
Hook, Rear Seat Cushion Lock
[04.2017 -] B10# |
72693-BZ020 |
— | ||
|
73707
|
73707
73705-BZ030
Bracket Sub-Assy, Child Restraint Seat Anchor, Inner
[04.2017 -] B10# |
73705-BZ030 |
— | ||
|
9004105547
|
9004105547
90041-05547 New Genuine Part |
90041-05547 |
US $3.40 |
||
