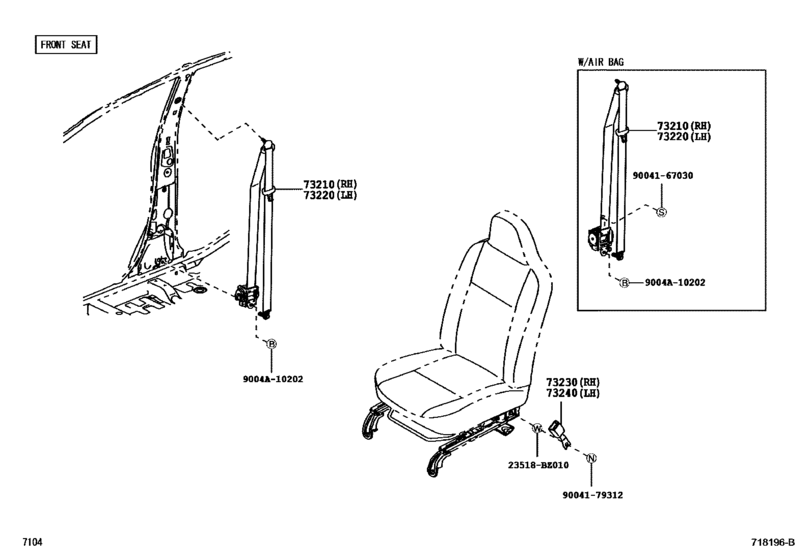

Seat Belt & Child Restraint Seat ([12.2012 - ] FRONT SEAT (1212- )) Diagram Toyota AGYA/ WIGO
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- B101
- grade
- HIS
- ENGINE
- 3NRVE
- TRANSMISSION
- ATM
- Model
- AGYA
- From
- 04.2017
- No.of Doors
- 5D
- Vehicle Model
- AGYA
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
73210
|
73210
73210-BZ390-B0
Belt Assy, Front Seat Outer, Rh
[04.2017 -] B10# -,TRIM1# |
73210-BZ390-B0 |
— | ||
|
73220
|
73220
73220-BZ370-B0
Belt Assy, Front Seat Outer, Lh
[04.2017 -] B10# -,TRIM1# |
73220-BZ370-B0 |
— | ||
|
73230
|
73230
73230-BZ520-B0
Belt Assy, Front Seat Inner, Rh
[04.2017 -] B10# DK.GRAY,TRIM1# |
73230-BZ520-B0 |
— | ||
|
73240
|
73240
73230-BZ500-B0
Belt Assy, Front Seat Inner, Rh
[04.2017 -] B10# DK.GRAY,TRIM1# |
73230-BZ500-B0 |
— | ||
|
23518BZ010
|
23518BZ010
23518-BZ010 Washer, Wave(for Elastic Face Valve Set) |
23518-BZ010 |
US $10.75 |
||
|
9004167030
|
9004167030
90041-67030 Screw |
90041-67030 |
US $1.67 |
||
|
9004179312
|
9004179312
90041-79312 New Genuine Part |
90041-79312 |
US $3.76 |
