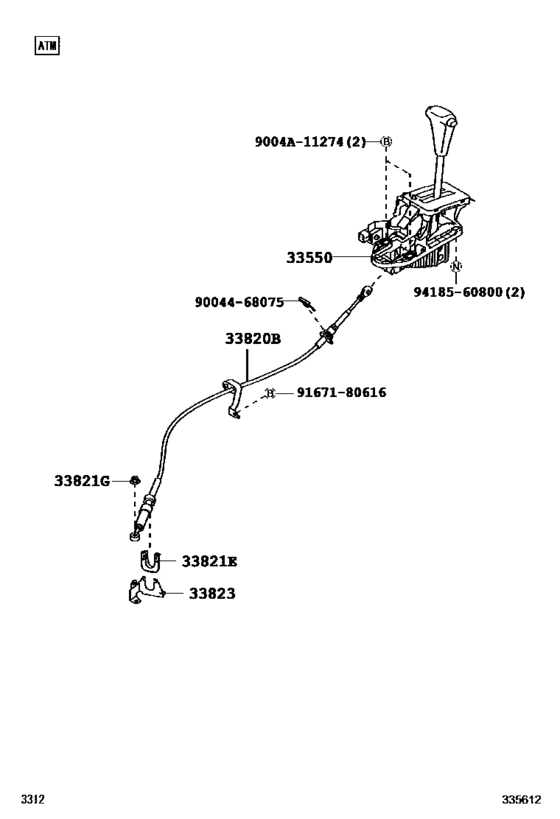

Shift Lever & Retainer ([04.2017 - ] (1704- )ATM) Diagram Toyota AGYA/ WIGO
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- B101
- grade
- HIS
- ENGINE
- 3NRVE
- TRANSMISSION
- ATM
- Model
- AGYA
- From
- 04.2017
- No.of Doors
- 5D
- Vehicle Model
- AGYA
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33550
|
33550
33550-BZ370-B0
Floor Shift Assy, Transmission
[04.2017 -] B10#..ATM..AGYA DK.GRAY,TRIM1# |
33550-BZ370-B0 |
— | ||
|
33820B
|
33820B
33820-BZ300
Cable Assy, Transmission Control
[04.2017 -] B101..ATM |
33820-BZ300 |
— | ||
|
33821E
|
33821E
33567-B1010 Clamp, Control Shaft TubeCONTROL SHAFT TUBE [04.2017 -] B10#..ATM |
33567-B1010 |
US $4.30 |
||
|
33821G
|
33821G
90179-06274 Nut[04.2017 -] B10#..ATM |
90179-06274 |
from US $0.68 |
||
|
33823
|
33823
33524-BZ030
Bracket, Control Cable
[04.2017 -] B10#..ATM |
33524-BZ030 |
— | ||
|
9004A11274
|
9004A11274
9004A-11274
Bolt, W/washer (For Floor Shift)
|
9004A-11274 |
— | ||
|
9004468075
|
9004468075
90044-68075 Bracket, Transfer Control Cable |
90044-68075 |
US $3.67 |
||
|
9167180616
|
9167180616
91671-80616 BOLT FLANGE |
91671-80616 |
from US $0.63 |
||
|
9418560800
|
9418560800
94185-60800 NUT |
94185-60800 |
from US $0.80 |
