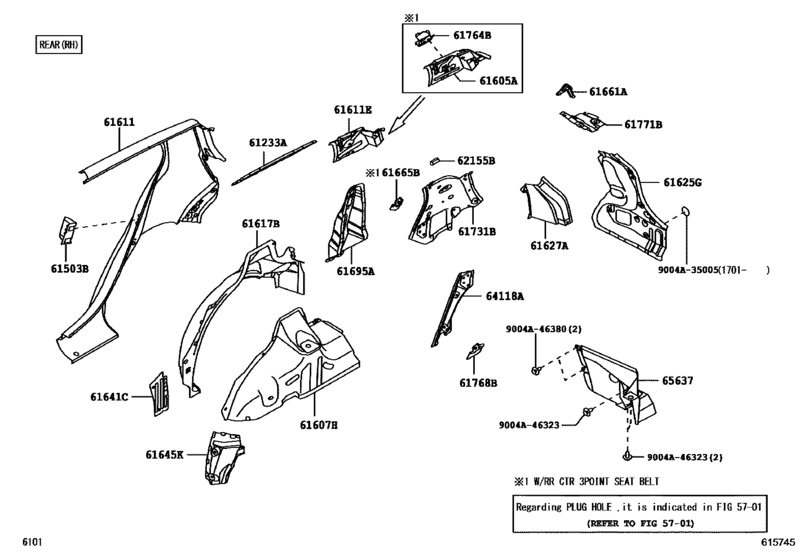

Side Member ([12.2012 - ] (1212- )) Diagram Toyota AGYA/ WIGO
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- B101
- grade
- HIS
- ENGINE
- 3NRVE
- TRANSMISSION
- ATM
- Model
- AGYA
- From
- 04.2017
- No.of Doors
- 5D
- Vehicle Model
- AGYA
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61233A
|
61233A
61233-BZ050
Rail, Roof Side, Inner No.2 Rh
[04.2017 -] B10# |
61233-BZ050 |
— | ||
|
61503B
|
61503B
61503-BZ090
Reinforcement Sub-Assy, Quarter Lock Pillar, Rh
[04.2017 -] B10# |
61503-BZ090 |
— | ||
|
61605A
|
61605A
61605-BZ080
Reinforcement Sub-Assy, Quarter Panel, Rh
[04.2017 -] B10# |
61605-BZ080 |
— | ||
|
61607H
|
61607H
61607-BZ110
Panel Sub-Assy, Quarter Wheel House, Inner Rh
[04.2017 -] B10# |
61607-BZ110 |
— | ||
|
61611
|
61611
61611-BZ420
Panel, Quarter, Rh
[04.2017 -] B10#..AGYA |
61611-BZ420 |
— | ||
|
61617B
|
61617B
61617-BZ091
Panel, Quarter Inner, Lower Rh
[04.2017 -] B10# |
61617-BZ091 |
— | ||
|
61625G
|
61625G
61625-BZ120
Extension, Quarter Panel, Rear Rh
[04.2017 -] B10# |
61625-BZ120 |
— | ||
|
61627A
|
61627A
61621-BZ050
Extension, Quarter Panel, Lower Rh
[04.2017 -] B10# |
61621-BZ050 |
— | ||
|
61645K
|
61645K
61645-BZ051
Gusset, Quarter Wheel House Inner, Rh
[04.2017 -] B10# |
61645-BZ051 |
— | ||
|
61665B
|
61665B
61665-BZ050
Reinforce, Seat Belt Anchorage To Quarter Wheel House, Rh
[04.2017 -] B10# |
61665-BZ050 |
— | ||
|
61695A
|
61695A
61637-BZ040
Brace, Quarter Panel, Rh
[04.2017 -] B10# |
61637-BZ040 |
— | ||
|
61731B
|
61731B
61731-BZ180
Panel, Roof Side, Inner Rh
[04.2017 -] B10# |
61731-BZ180 |
— | ||
|
61764B
|
61764B
61765-BZ030
Reinforcement, Seat Belt Anchor, No.2 Rh
[04.2017 -] B10# |
61765-BZ030 |
— | ||
|
61768B
|
61768B
61768-BZ090
Reinforce, Belt Anchor To Roof Side, Inner Rear Rh
[04.2017 -] B10# |
61768-BZ090 |
— | ||
|
61771B
|
61771B
61771-BZ060
Frame, Back Door Opening Upper Corner, Rh
[04.2017 -] B10# |
61771-BZ060 |
— | ||
|
64118A
|
64118A
64118-BZ050
Reinforcement, Upper Back, No.4 Rh
[04.2017 -] B10# |
64118-BZ050 |
— | ||
|
65637
|
65637
65637-BZ240
Liner, Rear Wheel House, Rh
[04.2017 -] B10# |
65637-BZ240 |
— | ||
|
9004A35005
|
9004A35005
9004A-35005 Plug, Hole(For Floor Pan) |
9004A-35005 |
US $2.15 |
||
|
9004A46323
|
9004A46323
9004A-46323 Piece, Rear Bumper |
9004A-46323 |
US $3.40 |
||
|
9004A46380
|
9004A46380
9004A-46380
Clip(For Front Bumper Retainer)
|
9004A-46380 |
— |
