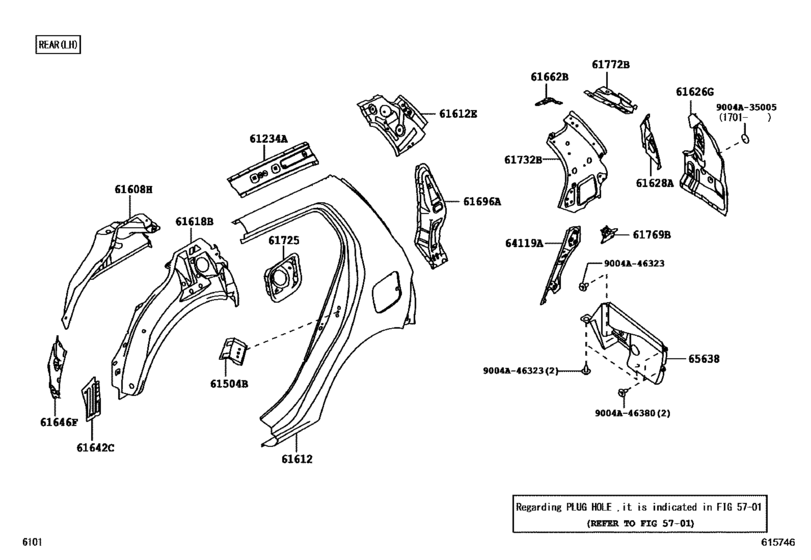

Side Member ([12.2012 - ] (1212- )) Diagram Toyota AGYA/ WIGO
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- B101
- grade
- HIS
- ENGINE
- 3NRVE
- TRANSMISSION
- ATM
- Model
- AGYA
- From
- 04.2017
- No.of Doors
- 5D
- Vehicle Model
- AGYA
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61234A
|
61234A
61234-BZ050
Rail, Roof Side, Inner No.2 Lh
[04.2017 -] B10# |
61234-BZ050 |
— | ||
|
61504B
|
61504B
61504-BZ080
Reinforcement Sub-Assy, Quarter Lock Pillar, Lh
[04.2017 -] B10# |
61504-BZ080 |
— | ||
|
61608H
|
61608H
61608-BZ110
Panel Sub-Assy, Quarter Wheel House, Inner Lh
[04.2017 -] B10# |
61608-BZ110 |
— | ||
|
61612
|
61612
61612-BZ460
Panel, Quarter, Lh
[04.2017 -] B10#..AGYA |
61612-BZ460 |
— | ||
|
61612E
|
61612E
61636-BZ020
Reinforcement, Quarter Panel, Lh
[04.2017 -] B10# |
61636-BZ020 |
— | ||
|
61618B
|
61618B
61618-BZ081
Panel, Quarter, Inner Lower Lh
[04.2017 -] B10# |
61618-BZ081 |
— | ||
|
61626G
|
61626G
61626-BZ121
Extension, Quarter Panel, Rear Lh
[04.2017 -] B10# |
61626-BZ121 |
— | ||
|
61628A
|
61628A
61622-BZ040
Extension, Quarter Panel, Lower Lh
[04.2017 -] B10# |
61622-BZ040 |
— | ||
|
61646F
|
61646F
61646-BZ071
Gusset, Quarter Wheel House Inner, Lh
[04.2017 -] B10# |
61646-BZ071 |
— | ||
|
61662B
|
61662B
61662-BZ050
Extension, Quarter Panel To Upper Back, Lh
[04.2017 -] B10# |
61662-BZ050 |
— | ||
|
61696A
|
61696A
61638-BZ020
Brace, Quarter Panel, Lh
[04.2017 -] B10# |
61638-BZ020 |
— | ||
|
61725
|
61725
61725-BZ120
Box, Fuel Inlet
[04.2017 -] B10# |
61725-BZ120 |
— | ||
|
61732B
|
61732B
61732-BZ170
Panel, Roof Side, Inner Lh
[04.2017 -] B10# |
61732-BZ170 |
— | ||
|
61769B
|
61769B
61769-BZ080
Reinforce, Belt Anchor To Roof Side, Inner Rear Lh
[04.2017 -] B10# |
61769-BZ080 |
— | ||
|
61772B
|
61772B
61772-BZ040
Frame, Back Door Opening Upper Corner, Lh
[04.2017 -] B10# |
61772-BZ040 |
— | ||
|
64119A
|
64119A
64119-BZ040
Reinforcement, Upper Back, No.4 Lh
[04.2017 -] B10# |
64119-BZ040 |
— | ||
|
65638
|
65638
65638-BZ240
Liner, Rear Wheel House, Lh
[04.2017 -] B10# |
65638-BZ240 |
— | ||
|
9004A35005
|
9004A35005
9004A-35005 Plug, Hole(For Floor Pan) |
9004A-35005 |
US $2.15 |
||
|
9004A46323
|
9004A46323
9004A-46323 Piece, Rear Bumper |
9004A-46323 |
US $3.40 |
||
|
9004A46380
|
9004A46380
9004A-46380
Clip(For Front Bumper Retainer)
|
9004A-46380 |
— |
