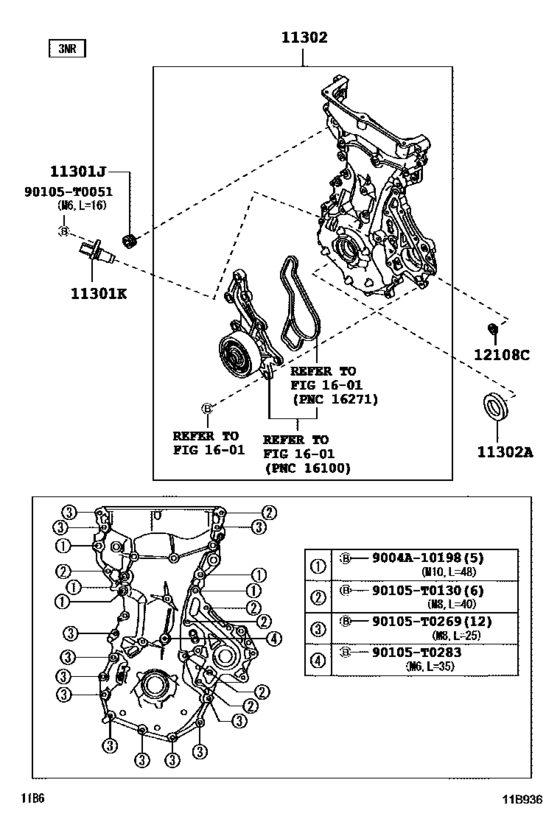

Timing Gear Cover & Rear End Plate ([04.2017 - ] (1704- )3NRVE) Diagram Toyota AGYA/ WIGO
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- B101
- grade
- HIS
- ENGINE
- 3NRVE
- TRANSMISSION
- ATM
- Model
- AGYA
- From
- 04.2017
- No.of Doors
- 5D
- Vehicle Model
- AGYA
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11301J
|
11301J
90043-44022
Plug, W/head Straight Screw(For Timing Gear Case)
[04.2017 -] 3NRVE..B101 |
90043-44022 |
— | ||
|
11301K
|
11301K
90919-T5001
Sensor, Crank Position
[04.2017 -] 3NRVE..B101 |
90919-T5001 |
— | ||
|
11302
|
11302
11310-BZ150
Cover Sub-Assy, Timing Chain Or Belt
[04.2017 -] 3NRVE..B101 |
11310-BZ150 |
— | ||
|
11302A
|
11302A
90311-T0076 Seal, Oil(For Timing Chain Or Belt Cover)[04.2017 -] 3NRVE..B101 |
90311-T0076 |
from US $6.27 |
||
|
12108C
|
12108C
16258-0Y010
Gasket
[04.2017 -] 3NRVE..B101 |
16258-0Y010 |
— | ||
|
90105T0051
|
90105T0051
90105-T0051
New Genuine Part
|
90105-T0051 |
— | ||
|
90105T0130
|
90105T0130
90105-T0130
Bolt(For Head To Camshaft Bearing Cap)
|
90105-T0130 |
— | ||
|
90105T0269
|
90105T0269
90105-T0269
New Genuine Part
|
90105-T0269 |
— | ||
|
90105T0283
|
90105T0283
90105-T0283
Bolt(For Head To Camshaft Bearing Cap)
|
90105-T0283 |
— |
