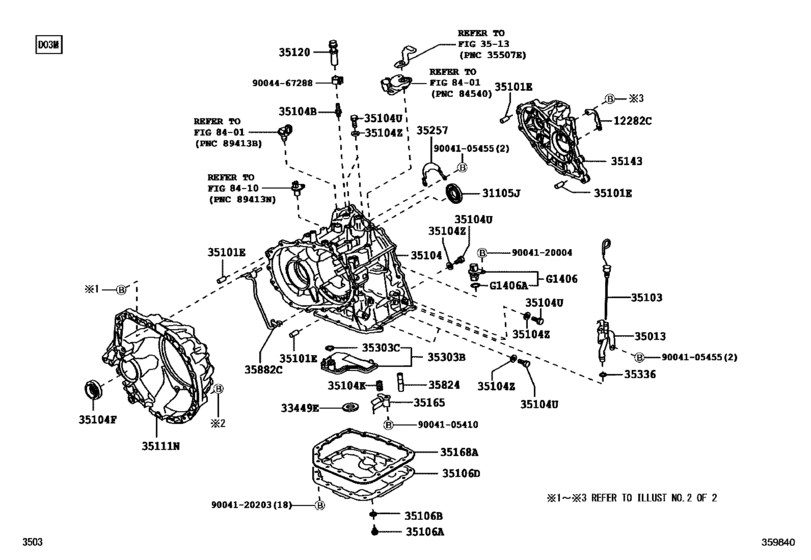

Transmission Case & Oil Pan (Atm) ([04.2017 - ] (1704- )ATM) Diagram Toyota AGYA/ WIGO
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- B101
- grade
- HIS
- ENGINE
- 3NRVE
- TRANSMISSION
- ATM
- Model
- AGYA
- From
- 04.2017
- No.of Doors
- 5D
- Vehicle Model
- AGYA
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12282C
|
12282C
12282-B1030 Hanger, Engine, No.2[04.2017 -] 1KRVE,3NRVE..B10#..ATM |
12282-B1030 |
US $3.64 |
||
|
31105J
|
31105J
90043-11316 Seal, Oil, No.2(For Transaxle Case)[04.2017 -] B10#..ATM |
90043-11316 |
from US $13.87 |
||
|
33449E
|
33449E
33449-B2010 Magnet, TransaxleOIL CLEANER (FOR TRANSMISSION) [04.2017 -] B10#..ATM |
33449-B2010 |
from US $3.58 |
||
|
35013
|
35013
35013-B1080
Tube Sub-Assy, Transmission Oil Filler
[04.2017 -] B10#..ATM |
35013-B1080 |
— | ||
|
35101E
|
35101E
90042-50157 Pin, Straight(For Manual Transmission Case)[04.2017 -] B10#..ATM |
90042-50157 |
from US $1.12 |
||
|
35103
|
35103
35103-B1030
Gage Sub-Assy, Transmission Oil Level
[04.2017 -] B10#..ATM |
35103-B1030 |
— | ||
|
35104
|
35104
35141-B1030 Case Sub-Assy, Automatic Transmission[04.2017 -] B10#..ATM |
35141-B1030 |
US $1,008.13 |
||
|
35104B
|
35104B
31477-B0010 Plug, Breather, No.1 (Atm)[04.2017 -] B10#..ATM |
31477-B0010 |
US $6.12 |
||
|
35104F
|
35104F
90043-11317 Seal, Oil, No.1(For Front Transaxle Case)[04.2017 -] B10#..ATM |
90043-11317 |
US $13.26 |
||
|
35104K
|
35104K
90045-01939
Compression Spring, Transaxle Case
[04.2017 -] B10#..ATM |
90045-01939 |
— | ||
|
35104U
|
35104U
90041-05404 Bolt (For Transaxle Case)[04.2017 -] B10#..ATM |
90041-05404 |
US $3.20 |
||
|
35104Z
|
35104Z
90044-30317 Gasket (For Transaxle Case)[04.2017 -] B10#..ATM |
90044-30317 |
US $1.75 |
||
|
35106A
|
35106A
90043-41041 Plug, Water Drain Cock(For Cylinder Block)[04.2017 -] B10#..ATM |
90043-41041 |
from US $1.48 |
||
|
35106B
|
35106B
90044-30281 Gasket(For Oil Pan Drain Plug)[04.2017 -] B10#..ATM |
90044-30281 |
from US $0.63 |
||
|
35106D
|
35106D
35106-B1070
Pan Sub-Assy, Automatic Transaxle Oil
[04.2017 -] B10#..ATM |
35106-B1070 |
— | ||
|
35111N
|
35111N
35111-B1060
Transaxle Housing (Atm)
[04.2017 -] B101..ATM |
35111-B1060 |
— | ||
|
35120
|
35120
35120-B0010
Plug (For Automatic Extension Housing)
[04.2017 -] B10#..ATM |
35120-B0010 |
— | ||
|
35143
|
35143
35143-B1020 Cover, Transmission Case, Rear[04.2017 -] B101..ATM |
35143-B1020 |
US $174.72 |
||
|
35165
|
35165
45477-B1020
Plate, Transmission Case, No.1
[04.2017 -] B10#..ATM |
45477-B1020 |
— | ||
|
35168A
|
35168A
35168-B1050 Gasket, Automatic Transaxle Oil Pan[04.2017 -] B10#..ATM |
35168-B1050 |
US $19.36 |
||
|
35257
|
35257
35345-B1030
Plate, Oil Guide
[04.2017 -] B10#..ATM |
35345-B1030 |
— | ||
|
35303B
|
35303B
35303-B1020
Strainer Sub-Assy,oil
[04.2017 -] B10#..ATM |
35303-B1020 |
— | ||
|
35303C
|
35303C
90043-01364 Ring,o(For Oil Strainer)[04.2017 -] B10#..ATM |
90043-01364 |
from US $2.15 |
||
|
35336
|
35336
90043-01160 Ring, O(For Transmission Oil Filler Tube)[04.2017 -] B10#..ATM |
90043-01160 |
US $3.23 |
||
|
35824
|
35824
35638-B1020 Seal, Brake Cylinder[04.2017 -] B10#..ATM |
35638-B1020 |
US $6.45 |
||
|
35882C
|
35882C
35882-B1010 Tube, Differential Gear Lube Apply[04.2017 -] B10#..ATM |
35882-B1010 |
US $18.49 |
||
|
9004105410
|
9004105410
90041-05410 New Genuine Part |
90041-05410 |
US $1.60 |
||
|
9004105455
|
9004105455
90041-05455 New Genuine Part |
90041-05455 |
US $1.60 |
||
|
9004120004
|
9004120004
90041-20004 New Genuine Part |
90041-20004 |
US $2.18 |
||
|
9004120203
|
9004120203
90041-20203 Bolt (For Automatic Transmission Oil Pan) |
90041-20203 |
US $2.15 |
||
|
9004467288
|
9004467288
90044-67288 CLIP |
90044-67288 |
from US $0.82 |
||
|
G1406
|
G1406
G1406-B1010 Connector Sub-Assy, Trans Solenoid[04.2017 -] B10#..ATM |
G1406-B1010 |
US $36.69 |
||
|
G1406A
|
G1406A
44618-B1010 Ring, O(For Trans Solenoid Connector)[04.2017 -] B10#..ATM |
44618-B1010 |
US $4.30 |
