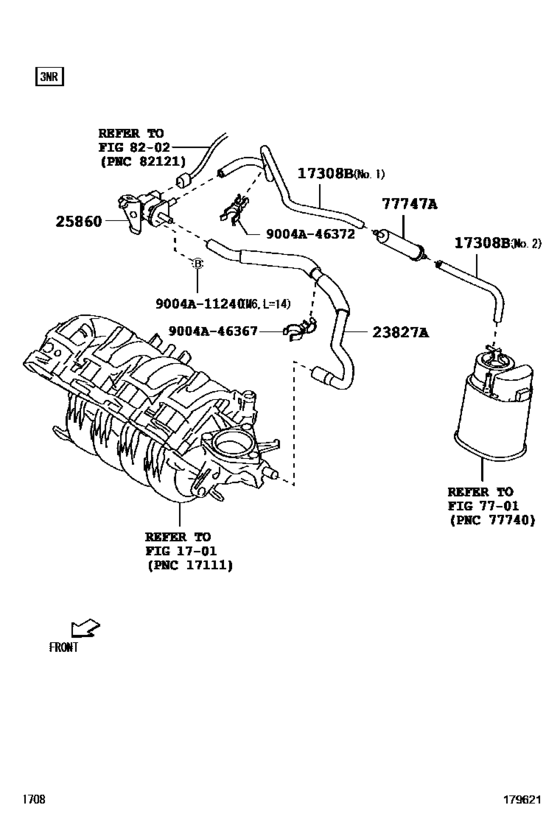

Vacuum Piping ([04.2017 - ] (1704- )3NRVE) Diagram Toyota AGYA/ WIGO
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- B101
- grade
- HIS
- ENGINE
- 3NRVE
- TRANSMISSION
- ATM
- Model
- AGYA
- From
- 04.2017
- No.of Doors
- 5D
- Vehicle Model
- AGYA
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17308B
|
17308B
77754-BZ240
Hose Sub-Assy, Vacuum
[04.2017 -] 3NRVE..B101 NO.2 |
77754-BZ240 |
— | ||
|
17308B
|
17308B
77754-BZ260
Hose Sub-Assy, Vacuum
[04.2017 -] 3NRVE..B101 NO.1 |
77754-BZ260 |
— | ||
|
23827A
|
23827A
23827-BZ080
Hose, Fuel Vapor Feed, No.2
[04.2017 -] 3NRVE..B101 |
23827-BZ080 |
— | ||
|
25860
|
25860
25860-BZ020
Valve Assy, Vacuum Switching, No.1
[04.2017 -] 3NRVE..B101 |
25860-BZ020 |
— | ||
|
77747A
|
77747A
77747-BZ050
Tube, Charcoal Canister, No.1
[04.2017 -] B10# |
77747-BZ050 |
— | ||
|
9004A11240
|
9004A11240
9004A-11240
New Genuine Part
|
9004A-11240 |
— |
