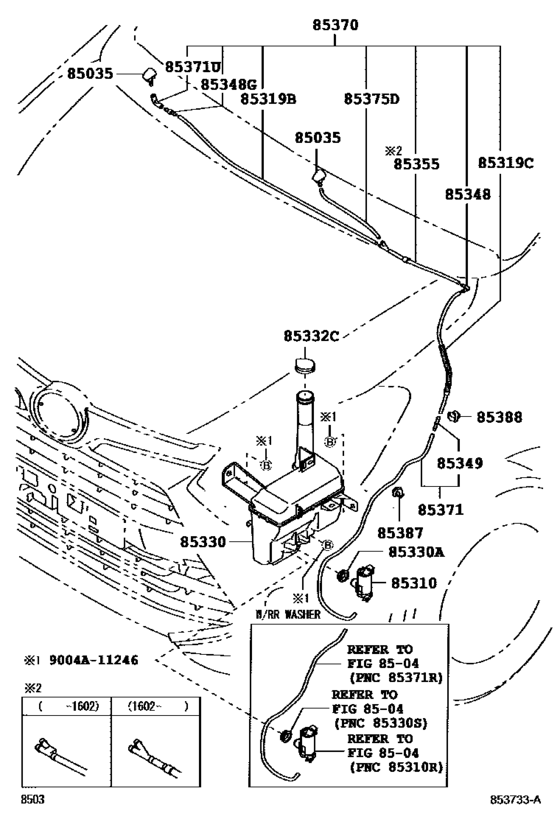

Windshield Washer ([10.2014 - ] (1410- )AGYA) Diagram Toyota AGYA/ WIGO
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- B101
- grade
- HIS
- ENGINE
- 3NRVE
- TRANSMISSION
- ATM
- Model
- AGYA
- From
- 04.2017
- No.of Doors
- 5D
- Vehicle Model
- AGYA
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85035
|
85035
85381-BZ181
Nozzle Sub-Assy, Washer
[04.2017 -] B10# |
85381-BZ181 |
— | ||
|
85319B
|
85319B
85374-BZ520
Hose, Window Washer
[04.2017 -] B10#..AGYA |
85374-BZ520 |
— | ||
|
85319C
|
85319C
85374-BZD90
Hose, Washer
[04.2017 -] B10# |
85374-BZD90 |
— | ||
|
85330
|
85330
85315-BZ140
Jar Assy, Windshield Washer
[04.2017 -] B10#..HIS;B100..MIDS..WIGO |
85315-BZ140 |
— | ||
|
85330A
|
85330A
85336-BZ020
Bush, Windshield Washer Jar
[04.2017 -] B10# |
85336-BZ020 |
— | ||
|
85332C
|
85332C
85332-BZ030 Cap, Front Washer Tank[04.2017 -] B10# |
85332-BZ030 |
US $3.93 |
||
|
85348
|
85348
85317-BZ040
Joint, Windshield Washer Hose, No.1
[04.2017 -] B10# |
85317-BZ040 |
— | ||
|
85348G
|
85348G
85317-BZ020
Joint, Windshield Washer Hose, No.2
[04.2017 -] B10#..AGYA |
85317-BZ020 |
— | ||
|
85349
|
85349
85317-BZ070
Joint, Windshield Washer Hose, No.2
[04.2017 -] B10# |
85317-BZ070 |
— | ||
|
85355
|
85355
85374-BZE10
Valve, Windshield Washer Hose
[04.2017 -] B10# |
85374-BZE10 |
— | ||
|
85370
|
85370
85370-BZ622
Hose Assy, Windshield Washer
[04.2017 -] B10#..AGYA |
85370-BZ622 |
— | ||
|
85371
|
85371
85370-BZ790
Hose, Windshield Washer (From Motor To Joint)
[04.2017 -] B10# H,L=670 |
85370-BZ790 |
— | ||
|
85371U
|
85371U
85317-BZ060
Tube, Rubber
[04.2017 -] B10# |
85317-BZ060 |
— | ||
|
85375D
|
85375D
85374-BZ510
Tube,rubber
[04.2017 -] B10#..AGYA |
85374-BZ510 |
— | ||
|
85387
|
85387
82711-1E340 Clamp, Hood Lock Control Cable[04.2017 -] B10# |
82711-1E340 |
from US $1.22 |
||
|
85388
|
85388
82711-BZ100 Clamp, Rear Washer Hose[04.2017 -] B10# |
82711-BZ100 |
US $1.08 |
||
|
9004A11246
|
9004A11246
9004A-11246
New Genuine Part
|
9004A-11246 |
— |
