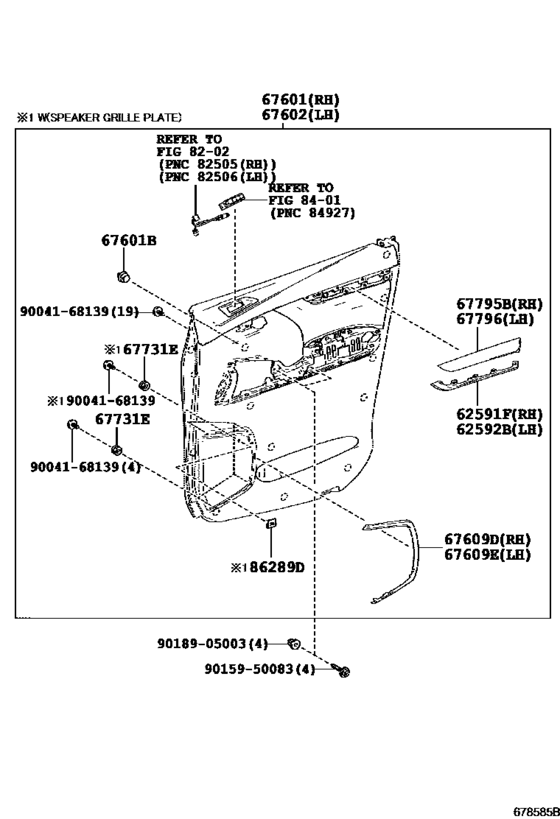

Front Door Panel & Glass ([01.2015 - ] DOOR TRIM (1501- )L,Q,V) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- AGH30
- ENGINE
- 2ARFE
- TRANSMISSION
- CVT
- Model
- Vellfire III
- From
- 01.2015
- Seating Capacity
- 07S
- Vehicle Model
- Vellfire
- Model Mark
- L
- Driver's Position
- RHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62591F
|
62591F
62591-58010-B0 Plate, Side Trim Base, No.1[01.2015 -] GGH30..V SATIN CHROME,TRIM0#,2#; AGH30,GGH30..VFIRE SATIN CHROME,TRIM2#; AGH30,AYH30,GGH30..RHD..ALPHD..(L,Q) SATIN CHROME,TRIM0# |
62591-58010-B0 |
US $44.26 |
||
|
62592B
|
62592B
62592-58010-B0 Plate, Side Trim Base, No.2[01.2015 -] GGH30..V SATIN CHROME,TRIM0#,2#; AGH30,GGH30..VFIRE SATIN CHROME,TRIM2#; AGH30,AYH30,GGH30..RHD..ALPHD..(L,Q) SATIN CHROME,TRIM0# |
62592-58010-B0 |
US $44.26 |
||
|
67601
|
67601
67610-58590-C2 Board Sub-Assy, Front Door Trim, Rh[01.2015 -] AGH30,GGH30..VFIRE BLACK,TRIM2# |
67610-58590-C2 |
US $640.64 |
||
|
67601
|
67601
67610-58600-C2 Board Sub-Assy, Front Door Trim, Rh[01.2015 -] AGH30..VFIRE AUDIO-AVN(8INCH),17SPEKAER,JBL,BLACK,TRIM2# |
67610-58600-C2 |
US $642.10 |
||
|
67601B
|
67601B
90467-09206 Clip, Front Air Shutter Seal[01.2015 -] GGH30..LHD..V;AGH30,AYH30,GGH30..RHD |
90467-09206 |
from US $0.49 |
||
|
67602
|
67602
67620-58510-C4 Board Sub-Assy, Front Door Trim, Lh[01.2015 -] AGH30,GGH30..VFIRE BLACK,TRIM2# |
67620-58510-C4 |
US $583.86 |
||
|
67602
|
67602
67620-58520-C4 Board Sub-Assy, Front Door Trim, Lh[01.2015 -] AGH30..VFIRE AUDIO-AVN(8INCH),17SPEKAER,JBL,BLACK,TRIM2# |
67620-58520-C4 |
US $585.31 |
||
|
67609D
|
67609D
67609-58050-B0 Grille Sub-Assy, Front Door Speaker, Rh[01.2015 -] GGH30..V SATIN CHROME,TRIM0#,2#; AGH30,GGH30..VFIRE SATIN CHROME,TRIM2#; AGH30,AYH30,GGH30..RHD..ALPHD..(L,Q) SATIN CHROME,TRIM0# |
67609-58050-B0 |
US $65.96 |
||
|
67609E
|
67609E
67709-58050-B0 Grille Sub-Assy, Front Door Speaker, Lh[01.2015 -] GGH30..V SATIN CHROME,TRIM0#,2#; AGH30,GGH30..VFIRE SATIN CHROME,TRIM2#; AGH30,AYH30,GGH30..RHD..ALPHD..(L,Q) SATIN CHROME,TRIM0# |
67709-58050-B0 |
US $65.96 |
||
|
67731E
|
67731E
67731-58010 Spacer, Side Trim, No.1[01.2015 -] AGH30,AYH30,GGH30..RHD..(L,Q); GGH30..LHD..L PHILIPPINES SPEC&AUDIO-RADIO LESS, 8SPEAKER, WITH(COVER); GGH30..LHD..L RUSSIA SPEC&AUDIO-*DA(8INCH),8SPEAKER |
67731-58010 |
US $1.76 |
||
|
67795B
|
67795B
67795-58020-C0 Base, Door Trim Ornament, Front No.1[01.2015 -] AGH30,GGH30..VFIRE DARK GRAY,TRIM2# |
67795-58020-C0 |
US $58.39 |
||
|
67796
|
67796
67796-58020-C0 Base, Door Trim Ornament, Front No.2[01.2015 -] AGH30,GGH30..VFIRE DARK GRAY,TRIM2# |
67796-58020-C0 |
US $58.39 |
||
|
86289D
|
86289D
86289-58020-C0 Plate, Speaker Grille[01.2015 -] GGH30..LHD..V BLACK,TRIM0#,2#; GGH30..RHD..V THAILAND SPEC,BLACK,TRIM0#,2#; GGH30..RHD..V INDONESIA SPEC,BLACK,TRIM0#,2#; AGH30..VFIRE AUDIO-AVN(8INCH),17SPEKAER,JBL,BLACK,TRIM2#; AGH30..ALPHD AUDIO-AVN(8INCH),17SPEKAER,JBL,BLACK,TRIM0# |
86289-58020-C0 |
US $3.20 |
||
|
9004168139
|
9004168139
90041-68139 New Genuine Part |
90041-68139 |
US $0.96 |
||
|
9015950083
|
9015950083
90159-50083 SCREW |
90159-50083 |
from US $0.76 |
||
|
9018905003
|
9018905003
90189-05003 CLIP |
90189-05003 |
from US $1.19 |
