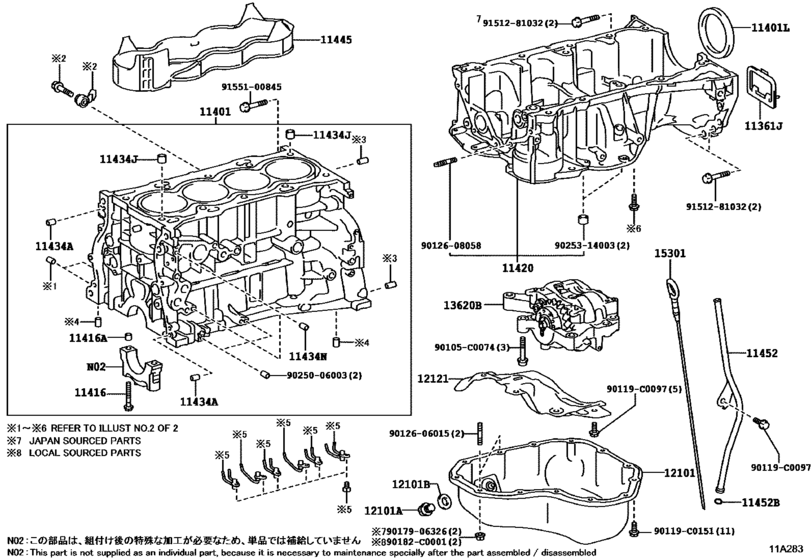

Cylinder Block ([01.2015 - ] CYLINDER BLOCK (1501- )2AR#) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- AGH30
- ENGINE
- 2ARFE
- TRANSMISSION
- CVT
- Model
- Alphard III
- From
- 01.2015
- Seating Capacity
- 07S
- Vehicle Model
- ALPHD
- Model Mark
- G
- Driver's Position
- RHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11361J
|
11361J
11361-28010 Cover, Flywheel Housing Under[01.2015 -] 2AR#..AGH30,AYH30 |
11361-28010 |
from US $5.28 |
||
|
11401
|
11401
11410-09570
Block Sub-Assy, Cylinder
[01.2015 -] 2AR#..AGH30,AYH30 *347 |
11410-09570 |
— | ||
|
11401L
|
11401L
90311-C0041
Seal, Engine Rear Oil
[01.2015 -] 2ARFE..AGH30 *347 |
90311-C0041 |
— | ||
|
11416
|
11416
90910-02173 Bolt(For Crankshaft Bearing Cap Set)[01.2015 -] 2AR#..AGH30,AYH30 (J),*347 |
90910-02173 |
US $3.84 |
||
|
11416
|
11416
90910-C2005
Bolt(For Crankshaft Bearing Cap Set)
[01.2015 -] 2AR#..AGH30,AYH30 (L),*347 |
90910-C2005 |
— | ||
|
11416A
|
11416A
90253-13017 Pin, Ring W/head[01.2015 -] 2AR#..AGH30,AYH30 (J),*347 |
90253-13017 |
from US $1.40 |
||
|
11416A
|
11416A
90253-C0006
Pin, Ring(For Crankshaft Bearing Cap Set)
[01.2015 -] 2AR#..AGH30,AYH30 (L),*347 |
90253-C0006 |
— | ||
|
11420
|
11420
11420-0V020
Crankcase Assy, Stiffening
[01.2015 -] 2AR#..AGH30,AYH30 *347 |
11420-0V020 |
— | ||
|
11434A
|
11434A
90250-06003 Pin, Straight[01.2015 -] 2AR#..AGH30,AYH30 L=14,OD=6,*347 |
90250-06003 |
US $1.44 |
||
|
11434J
|
11434J
90253-15001 Pin, Straight(For Clutch Housing Set)[01.2015 -] 2AR#..AGH30,AYH30 *347 |
90253-15001 |
from US $1.17 |
||
|
11434N
|
11434N
90250-06003 Pin, Straight[01.2015 -] 2AR#..AGH30,AYH30 *347 |
90250-06003 |
US $1.44 |
||
|
11445
|
11445
11445-0V020
Spacer, Cylinder Block Water Jacket
[01.2015 -] 2AR#..AGH30,AYH30 (L),*347 |
11445-0V020 |
— | ||
|
11445
|
11445
11445-36010 Spacer, Cylinder Block Water Jacket[01.2015 -] 2AR#..AGH30,AYH30 (J),*347 |
11445-36010 |
US $22.19 |
||
|
11452
|
11452
11452-0V020
Guide, Oil Level Gage
[01.2015 -] 2ARFE..AGH30 *347 |
11452-0V020 |
— | ||
| replacement | |||||
|
11452
|
11452
11452-36021 Guide, Oil Level Gage[01.2015 -] 2ARFE..AGH30 *347 |
11452-36021 |
US $22.54 |
||
|
11452B
|
11452B
90301-C0037
Ring, O(For Oil Level Gage Guide)
[01.2015 -] 2AR#..AGH30,AYH30 (L),*347 |
90301-C0037 |
— | ||
|
11452B
|
11452B
96741-19010 Ring, O(For Oil Level Gage Guide)[01.2015 -] 2AR#..AGH30,AYH30 (J),*347 |
96741-19010 |
from US $2.32 |
||
|
12101
|
12101
12101-0V040
Pan Sub-Assy, Oil
[01.2015 -] 2AR#..AGH30,AYH30 (L),*347 |
12101-0V040 |
— | ||
|
12101
|
12101
12101-36050 Pan Sub-Assy, OilOIL [01.2015 -] 2AR#..AGH30,AYH30 (J),*347 |
12101-36050 |
from US $108.21 |
||
|
12101A
|
12101A
90341-12012 Plug(For Oil Pan Drain)[01.2015 -] 2GRFE..GGH30; 2AR#..AGH30,AYH30 *347 |
90341-12012 |
from US $2.56 |
||
| replacement | |||||
|
12101A
|
12101A
90341-T0004 Plug(For Oil Pan Drain)[01.2015 -] 2GRFE..GGH30; 2AR#..AGH30,AYH30 *347 |
90341-T0004 |
US $4.49 |
||
|
12101B
|
12101B
90430-12031 Gasket (For Oil Pan Drain Plug)[01.2015 -] 2GRFE..GGH30; 2AR#..AGH30,AYH30 (J),*347 |
90430-12031 |
from US $0.88 |
||
|
12101B
|
12101B
90430-C0005
Gasket(For Oil Pan Drain Plug)
[01.2015 -] 2AR#..AGH30,AYH30 (L),*347 |
90430-C0005 |
— | ||
|
12121
|
12121
12121-0V020
Plate, Oil Pan Baffle, No.1
[01.2015 -] 2AR#..AGH30,AYH30 *347 |
12121-0V020 |
— | ||
|
13620B
|
13620B
13620-0V040
Balancer Assy, Engine
[01.2015 -] 2ARFE..AGH30 (L),*347 |
13620-0V040 |
— | ||
|
13620B
|
13620B
13620-36060 Balancer Assy, Engine[01.2015 -] 2ARFE..AGH30 (J),*347 |
13620-36060 |
from US $298.88 |
||
|
15301
|
15301
15301-0V010 Gage Sub-Assy, Oil Level[01.2015 -] 2AR#..AGH30,AYH30 *347 |
15301-0V010 |
US $15.84 |
||
|
90105C0074
|
90105C0074
90105-C0074
Bolt(For Camshaft Housing Set)
|
90105-C0074 |
— | ||
|
90119C0097
|
90119C0097
90119-C0097
New Genuine Part
|
90119-C0097 |
— | ||
|
90119C0151
|
90119C0151
90119-C0151
New Genuine Part
|
90119-C0151 |
— | ||
|
90182C0001
|
90182C0001
90182-C0001
New Genuine Part
|
90182-C0001 |
— | ||
|
9012606015
|
9012606015
90126-06015 Bolt, Stud(For Oil Pan) |
90126-06015 |
from US $1.76 |
||
|
9012608058
|
9012608058
90126-08058 New Genuine Part |
90126-08058 |
US $1.02 |
||
|
9017906326
|
9017906326
90179-06326 NUT W-WASHER |
90179-06326 |
from US $0.70 |
||
| replacement | |||||
|
9017906326
|
9017906326
90182-A0010 New Genuine Part |
90182-A0010 |
US $2.13 |
||
|
9025006003
|
9025006003
90250-06003 Pin, Straight |
90250-06003 |
US $1.44 |
||
|
9025314003
|
9025314003
90253-14003 Pin, Ring(For Crankshaft Bearing Cap Set) |
90253-14003 |
from US $1.37 |
||
|
9151281032
|
9151281032
91512-81032 New Genuine Part |
91512-81032 |
US $1.76 |
||
|
9155100845
|
9155100845
91551-00845 Bolt (For Transfer Case) |
91551-00845 |
US $1.60 |
||
