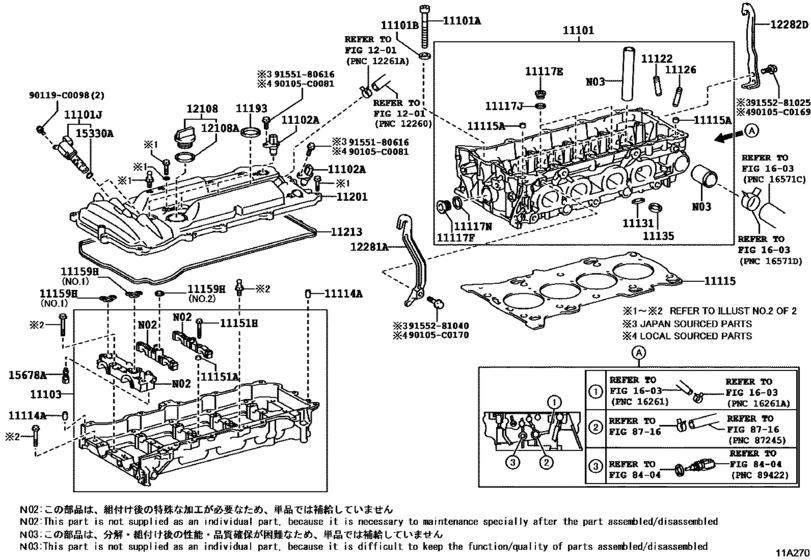

Cylinder Head ([01.2015 - ] CYLINDER HEAD (1501- )2ARFE) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- AGH30
- ENGINE
- 2ARFE
- TRANSMISSION
- CVT
- Model
- Alphard III
- From
- 01.2015
- Seating Capacity
- 07S
- Vehicle Model
- ALPHD
- Model Mark
- G
- Driver's Position
- RHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-09451
Head Sub-Assy, Cylinder
[01.2015 -] 2AR#..AGH30,AYH30 *347 |
11101-09451 |
— | ||
|
11101A
|
11101A
90910-02164 Bolt(For Cylinder Head Set)[01.2015 -] 2AR#..AGH30,AYH30 (J),*347 |
90910-02164 |
from US $4.96 |
||
|
11101A
|
11101A
90910-C2006
Bolt(For Cylinder Head Set)
[01.2015 -] 2AR#..AGH30,AYH30 (L),*347 |
90910-C2006 |
— | ||
|
11101B
|
11101B
90201-11034 Washer, Plate(For Cylinder Head Set)[01.2015 -] 2AR#..AGH30,AYH30 *347 |
90201-11034 |
US $1.76 |
||
|
11101J
|
11101J
15330-0T030
Valve Assy, Camshaft Timing Oil Control
[01.2015 -] 2ARFE..AGH30 *347 |
15330-0T030 |
— | ||
|
11102A
|
11102A
90919-05060 Sensor, Cam Position[01.2015 -] 2ARFE..AGH30 *347 |
90919-05060 |
from US $62.78 |
||
|
11103
|
11103
11103-0V021
Housing Sub-Assy, Camshaft
[01.2015 -] 2ARFE..AGH30 *347 |
11103-0V021 |
— | ||
|
11114A
|
11114A
90250-06003 Pin, Straight[01.2015 -] 2AR#..AGH30,AYH30 L=14,OD=6,*347 |
90250-06003 |
US $1.44 |
||
|
11115
|
11115
11115-0V031
Gasket, Cylinder Head
[01.2015 -] 2ARFE..AGH30 (L),*347 |
11115-0V031 |
— | ||
|
11115
|
11115
11115-36031 Gasket, Cylinder Head[01.2015 -] 2ARFE..AGH30 (J),*347 |
11115-36031 |
from US $63.71 |
||
|
11115A
|
11115A
90253-12002 Pin, Ring[01.2015 -] 2AR#..AGH30,AYH30 (J),*347 |
90253-12002 |
from US $0.64 |
||
|
11115A
|
11115A
90253-C0002
Pin, Ring
[01.2015 -] 2AR#..AGH30,AYH30 (L),*347 |
90253-C0002 |
— | ||
|
11117E
|
11117E
90341-20002 Plug, W/head Taper Screw, No.1[01.2015 -] 2AR#..AGH30,AYH30 *347 |
90341-20002 |
from US $2.88 |
||
|
11117F
|
11117F
90341-24011 Plug, W/head Taper Screw, No.1[01.2015 -] 2AR#..AGH30,AYH30 *347 |
90341-24011 |
US $3.84 |
||
|
11117J
|
11117J
90430-20004 Gasket(For Cylinder Head Screw Plug)[01.2015 -] 2AR#..AGH30,AYH30 (J),*347 |
90430-20004 |
from US $1.01 |
||
|
11117J
|
11117J
90430-C0001
Gasket(For Cylinder Head Screw Plug)
[01.2015 -] 2AR#..AGH30,AYH30 (L),*347 |
90430-C0001 |
— | ||
|
11117N
|
11117N
90430-24246 Gasket(For Cylinder Head Screw Plug)[01.2015 -] 2AR#..AGH30,AYH30 *347 |
90430-24246 |
from US $1.15 |
||
|
11122
|
11122
11122-31050 Bush, Intake Valve Guide[01.2015 -] 2AR#..AGH30,AYH30 STD,*347 |
11122-31050 |
US $7.16 |
||
|
11122
|
11122
11123-31050 Bush, Intake Valve Guide[01.2015 -] 2AR#..AGH30,AYH30 O/S 0.05,*347 |
11123-31050 |
from US $7.02 |
||
|
11126
|
11126
11126-31030 Bush, Exhaust Valve Guide[01.2015 -] 2AR#..AGH30,AYH30 STD,*347 |
11126-31030 |
US $7.02 |
||
|
11126
|
11126
11127-31030 Bush, Exhaust Valve Guide[01.2015 -] 2AR#..AGH30,AYH30 O/S 0.05,*347 |
11127-31030 |
US $7.02 |
||
|
11131
|
11131
11131-0V030
Seat, Intake Valve
[01.2015 -] 2AR#..AGH30,AYH30 STD,*347 |
11131-0V030 |
— | ||
|
11131
|
11131
11132-0V030
Seat, Intake Valve
[01.2015 -] 2AR#..AGH30,AYH30 O/S 0.03,*347 |
11132-0V030 |
— | ||
|
11135
|
11135
11135-0V020
Seat, Exhaust Valve
[01.2015 -] 2AR#..AGH30,AYH30 STD,*347 |
11135-0V020 |
— | ||
|
11135
|
11135
11136-36010
Seat, Exhaust Valve
[01.2015 -] 2AR#..AGH30,AYH30 O/S 0.03,*347 |
11136-36010 |
— | ||
|
11151A
|
11151A
90253-13005 Pin, Ring(For Camshaft Bearing Cap Setting)[01.2015 -] 2AR#..AGH30,AYH30 L=12.5,OD=8,(J),*347 |
90253-13005 |
from US $0.60 |
||
|
11151A
|
11151A
90253-C0004
Pin, Ring(For Camshaft Bearing Cap Setting)
[01.2015 -] 2AR#..AGH30,AYH30 L=12.5,OD=8,(L),*347 |
90253-C0004 |
— | ||
|
11151H
|
11151H
90119-07009 Bolt(For Camshaft Housing Set)[01.2015 -] 2AR#..AGH30,AYH30 (J),*347 |
90119-07009 |
from US $0.86 |
||
|
11151H
|
11151H
90119-C0469
Bolt(For Camshaft Bearing Cap To Housing)
[01.2015 -] 2AR#..AGH30,AYH30 (L),*347 |
90119-C0469 |
— | ||
|
11159H
|
11159H
11159-0V020
Gasket, Camshaft Bearing Cap Oil Hole
[01.2015 -] 2ARFE..AGH30 *347,NO.1 |
11159-0V020 |
— | ||
|
11159H
|
11159H
90430-C0006
Gasket, Camshaft Bearing Cap Oil Hole
[01.2015 -] 2AR#..AGH30,AYH30 *347,NO.2 |
90430-C0006 |
— | ||
|
11193
|
11193
11193-0V020
Gasket, Spark Plug Tube
[01.2015 -] 2AR#..AGH30,AYH30 *347 |
11193-0V020 |
— | ||
|
11201
|
11201
11201-0V040 Cover Sub-Assy, Cylinder Head[01.2015 -] 2ARFE..AGH30 *347 |
11201-0V040 |
US $222.77 |
||
|
11213
|
11213
11213-0V010
Gasket, Cylinder Head Cover
[01.2015 -] 2AR#..AGH30,AYH30 (L),*347 |
11213-0V010 |
— | ||
|
11213
|
11213
11213-36020 Gasket, Cylinder Head CoverCYLINDER HEAD COVER [01.2015 -] 2AR#..AGH30,AYH30 (J),*347 |
11213-36020 |
from US $14.40 |
||
|
12108
|
12108
12180-0V010
Cap Sub-Assy, Oil Filler
[01.2015 -] 2AR#..AGH30,AYH30 (L),*347 |
12180-0V010 |
— | ||
|
12108
|
12108
12180-38010 Cap Sub-Assy, Oil Filler[01.2015 -] 2AR#..AGH30,AYH30 (J),*347 |
12180-38010 |
from US $10.24 |
||
|
12108A
|
12108A
90430-35001 Gasket(For Oil Filler Cap)[01.2015 -] 2AR#..AGH30,AYH30 *347 |
90430-35001 |
from US $1.21 |
||
|
12281A
|
12281A
12281-0V010
Hanger, Engine, No.1
[01.2015 -] 2AR#..AGH30,AYH30 *347 |
12281-0V010 |
— | ||
|
12282D
|
12282D
12282-0V030
Hanger, Engine, No.2
[01.2015 -] 2AR#..AGH30,AYH30 *347 |
12282-0V030 |
— | ||
|
15330A
|
15330A
90068-14032
Ring, O(For Cam Timing Oil Control Valve)
[01.2015 -] 2ARFE..AGH30 *347 |
90068-14032 |
— | ||
|
15678A
|
15678A
15678-37010 Filter, Oil Control Valve[01.2015 -] 2AR#..AGH30,AYH30 *347 |
15678-37010 |
from US $5.44 |
||
|
90105C0081
|
90105C0081
90105-C0081
New Genuine Part
|
90105-C0081 |
— | ||
|
90105C0169
|
90105C0169
90105-C0169
New Genuine Part
|
90105-C0169 |
— | ||
|
90105C0170
|
90105C0170
90105-C0170
Bolt, No.1(For Alternator)
|
90105-C0170 |
— | ||
|
90119C0098
|
90119C0098
90119-C0098
New Genuine Part
|
90119-C0098 |
— | ||
|
9155180616
|
9155180616
91551-80616 BOLT FLANGE |
91551-80616 |
from US $0.72 |
||
|
9155281025
|
9155281025
91552-81025 BOLT TLANGE |
91552-81025 |
US $1.60 |
||
|
9155281040
|
9155281040
91552-81040 Bolt(For Alternator) |
91552-81040 |
from US $1.21 |
