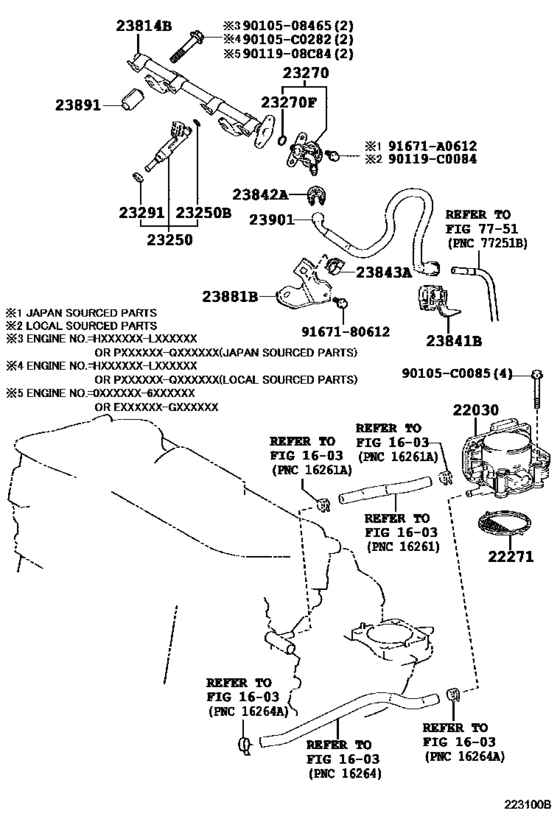

Fuel Injection System ([01.2015 - ] (1501- )2ARFE) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- AGH30
- ENGINE
- 2ARFE
- TRANSMISSION
- CVT
- Model
- Alphard III
- From
- 01.2015
- Seating Capacity
- 07S
- Vehicle Model
- ALPHD
- Model Mark
- G
- Driver's Position
- RHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22030
|
22030
22030-0V040
Body Assy, Throttle W/motor
[01.2015 -] 2ARFE..AGH30 *347 |
22030-0V040 |
— | ||
|
22271
|
22271
22271-36010
Gasket, Throttle Body
[01.2015 -] 2ARFE..AGH30 *347 |
22271-36010 |
— | ||
|
23250
|
23250
23209-09230
Injector Assy, Fuel
[01.2015 -] 2AR#..AGH30,AYH30 *347 |
23209-09230 |
— | ||
|
23250B
|
23250B
90301-07037 Ring, O(For Fuel Injector)[01.2015 - 12.2015] 2AR#..AGH30,AYH30 *347 |
90301-07037 |
from US $2.24 |
||
|
23250B
|
23250B
90301-C0072
Ring, O(For Fuel Injector)
[12.2015 -] 2AR#..AGH30,AYH30 (L),*347 |
90301-C0072 |
— | ||
|
23270
|
23270
23270-36031
Damper Assy, Fuel Pressure Pulsation
[01.2015 -] 2ARFE..AGH30 |
23270-36031 |
— | ||
|
23270F
|
23270F
90301-07037 Ring, O(For Fuel Injector)[01.2015 -] 2ARFE..AGH30 |
90301-07037 |
from US $2.24 |
||
|
23291
|
23291
23291-0V010
Insulator, Injector Vibration
[01.2015 -] 2AR#..AGH30,AYH30 (L),*347 |
23291-0V010 |
— | ||
|
23291
|
23291
23291-28020 Insulator, Injector Vibration[01.2015 -] 2AR#..AGH30,AYH30 (J),*347 |
23291-28020 |
from US $3.65 |
||
|
23814B
|
23814B
23814-0V050
Pipe, Fuel Delivery
[05.2016 -] 2ARFE..AGH30 (L),*347 |
23814-0V050 |
— | ||
|
23814B
|
23814B
23814-36040 Pipe Sub-Assy, Fuel Delivery[01.2015 - 05.2016] 2ARFE..AGH30 *347 |
23814-36040 |
US $94.64 |
||
|
23841B
|
23841B
23841-28020 Clamp, Fuel Pipe, No.1(For Efi)[01.2015 -] 2GRFE..GGH30; 2AR#..AGH30,AYH30 |
23841-28020 |
US $11.20 |
||
|
23842A
|
23842A
23842-22020 Clamp, Fuel Pipe, No.1(For Efi)[01.2015 -] 2AR#..AGH30,AYH30 |
23842-22020 |
US $8.80 |
||
|
23843A
|
23843A
23847-28010 Clamp,fuel Pipe, No.3(For Efi)[01.2015 -] 2ARFE..AGH30 |
23847-28010 |
US $2.91 |
||
|
23881B
|
23881B
23881-36060 Bracket, Fuel Hose[01.2015 -] 2ARFE..AGH30 |
23881-36060 |
US $4.51 |
||
|
23891
|
23891
23891-36010 Spacer, No.1(For Delivery Pipe)[01.2015 -] 2AR#..AGH30,AYH30 *347 |
23891-36010 |
US $3.84 |
||
|
23901
|
23901
23901-36150 Tube Sub-Assy, Fuel[01.2015 -] 2ARFE..AGH30 |
23901-36150 |
US $49.21 |
||
|
90105C0085
|
90105C0085
90105-C0085
New Genuine Part
|
90105-C0085 |
— | ||
|
90105C0282
|
90105C0282
90105-C0282
Bolt(For Camshaft Housing To Cylinder Head, Rh)
|
90105-C0282 |
— | ||
|
90119C0084
|
90119C0084
90119-C0084
New Genuine Part
|
90119-C0084 |
— | ||
|
91671A0612
|
91671A0612
91671-A0612 BOLT FLANGE |
91671-A0612 |
from US $0.66 |
||
|
9011908C84
|
9011908C84
90119-08C84 Bolt(For Camshaft Housing To Cylinder Head, Rh) |
90119-08C84 |
US $0.87 |
||
|
9010508465
|
9010508465
90105-08465 Bolt(For Camshaft Housing To Cylinder Head, Rh) |
90105-08465 |
US $1.31 |
||
|
9167180612
|
9167180612
91671-80612 Bolt |
91671-80612 |
from US $0.68 |
