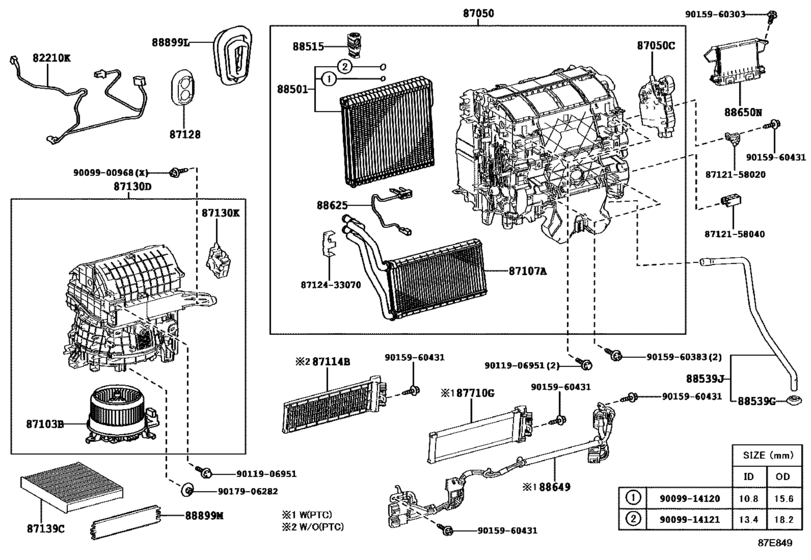

Heating & Air Conditioning - Cooler Unit ([01.2015 - ] FRONT (1501- )AGH30,GGH30..RHD) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- AGH30
- ENGINE
- 2ARFE
- TRANSMISSION
- CVT
- Model
- Alphard III
- From
- 01.2015
- Seating Capacity
- 07S
- Vehicle Model
- ALPHD
- Model Mark
- G
- Driver's Position
- RHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82210K
|
82210K
82212-58030
Harness Assy, Air Conditioner
[01.2015 -] AGH30,GGH30..RHD |
82212-58030 |
— | ||
|
87050
|
87050
87050-58090 Radiator Assy, Air Conditioner[01.2015 -] AGH30 |
87050-58090 |
US $960.96 |
||
|
87050C
|
87050C
87106-48170 Damper Servo Sub-Assy, Air Conditioner Radiator, No.1[01.2015 -] AGH30,AYH30,GGH30 |
87106-48170 |
from US $101.34 |
||
|
87103B
|
87103B
87103-58060
Motor Sub-Assy, Blower W/fan
[01.2015 -] AGH30,GGH30..RHD |
87103-58060 |
— | ||
|
87107A
|
87107A
87107-58050
Unit Sub-Assy, Heater Radiator
[01.2015 -] AGH30,AYH30,GGH30..RHD |
87107-58050 |
— | ||
|
87114B
|
87114B
87114-58050
Cover, Heater
[01.2015 -] AGH30,AYH30,GGH30..RHD; GGH30..LHD WITHOUT(COLD SPEC) |
87114-58050 |
— | ||
|
87128
|
87128
87128-58030 Grommet, Heater[01.2015 -] AGH30,AYH30,GGH30 |
87128-58030 |
US $5.53 |
||
|
87130D
|
87130D
87130-58080
Blower Assy
[01.2015 -] AGH30,GGH30..RHD |
87130-58080 |
— | ||
|
87130K
|
87130K
87106-28240 Damper Servo Sub-Assy, Blower, No.1[01.2015 -] AGH30,GGH30..RHD |
87106-28240 |
from US $101.34 |
||
|
87139C
|
87139C
87139-58010 Filter, Clean Air (Charcoal)[01.2015 -] AGH30,AYH30,GGH30 |
87139-58010 |
from US $60.80 |
||
| replacement | |||||
|
87139C
|
87139C
87139-YZZ49 Filter, Cabin (Charcoal)[01.2015 -] AGH30,AYH30,GGH30 |
87139-YZZ49 |
US $155.18 |
||
|
88501
|
88501
88501-58060
Evaporator Sub-Assy, Cooler, No.1
[01.2015 -] AGH30 |
88501-58060 |
— | ||
|
88515
|
88515
88515-48110 Valve, Cooler Expansion[01.2015 -] AGH30,AYH30,GGH30 |
88515-48110 |
from US $93.24 |
||
|
88539G
|
88539G
90480-26022 Grommet (For Cooler Unit)[01.2015 -] AGH30,AYH30,GGH30 |
90480-26022 |
US $2.45 |
||
|
88539J
|
88539J
88539-58080
Hose, Drain Cooler
[01.2015 -] AGH30,AYH30,GGH30..RHD |
88539-58080 |
— | ||
|
88625
|
88625
88620-28060 Thermistor, Cooler, No.1[01.2015 -] AGH30 |
88620-28060 |
US $26.21 |
||
|
88650N
|
88650N
88650-58210 Amplifier Assy, Air Conditioner[01.2015 - 07.2016] AGH30,GGH30 |
88650-58210 |
US $267.90 |
||
|
88650N
|
88650N
88650-58211
Amplifier Assy, Air Conditioner
[07.2016 -] AGH30,GGH30 |
88650-58211 |
— | ||
|
88899L
|
88899L
88899-58040
Parts, Cooling Unit
[01.2015 -] AGH30,AYH30,GGH30 |
88899-58040 |
— | ||
|
88899M
|
88899M
88899-28620
Plate, Cover
[01.2015 -] AGH30,AYH30,GGH30 |
88899-28620 |
— | ||
|
8712158020
|
8712158020
87121-58020
Bracket, Heater, Front Rh
|
87121-58020 |
— | ||
|
8712158040
|
8712158040
87121-58040 Bracket, Heater, Front Rh |
87121-58040 |
US $10.05 |
||
|
8712433070
|
8712433070
87124-33070 Clamp, Heater |
87124-33070 |
from US $1.12 |
||
|
9009900968
|
9009900968
90099-00968 Screw(For Air Conditioner Unit) |
90099-00968 |
US $0.82 |
||
|
9009914120
|
9009914120
90099-14120 O-Ring, Cooler Evaporator No.1(Discharge) |
90099-14120 |
from US $2.13 |
||
|
9009914121
|
9009914121
90099-14121 O-Ring, Cooler Evaporator No.1(Suction) |
90099-14121 |
from US $2.18 |
||
|
9011906951
|
9011906951
90119-06951 BOLT WWASHER |
90119-06951 |
from US $0.82 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
US $1.12 |
||
|
9015960383
|
9015960383
90159-60383 SCREW WWASHER |
90159-60383 |
from US $0.78 |
||
| replacement | |||||
|
9015960383
|
9015960383
90159-A0010 SCREW WWASHER TAPP |
90159-A0010 |
from US $2.38 |
||
|
9015960431
|
9015960431
90159-60431 SCREW |
90159-60431 |
from US $0.78 |
||
|
9017906282
|
9017906282
90179-06282 New Genuine Part |
90179-06282 |
US $0.67 |
||
