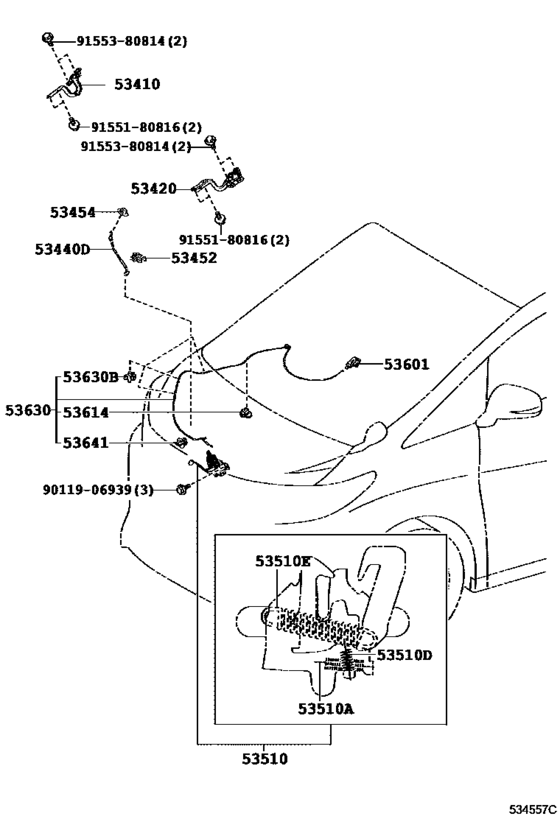

Hood Lock & Hinge ([01.2015 - ] (1501- )) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- AGH30
- ENGINE
- 2ARFE
- TRANSMISSION
- CVT
- Model
- Alphard III
- From
- 01.2015
- Seating Capacity
- 07S
- Vehicle Model
- ALPHD
- Model Mark
- G
- Driver's Position
- RHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53410
|
53410
53410-58060 Hinge Assy, Hood, Rh[01.2015 -] AGH30,AYH30,GGH30 |
53410-58060 |
from US $26.30 |
||
|
53420
|
53420
53420-58080 Hinge Assy, Hood, Lh[01.2015 -] AGH30,AYH30,GGH30 |
53420-58080 |
from US $26.30 |
||
|
53440D
|
53440D
53440-58050 Support Assy, Hood[01.2015 -] AGH30,AYH30,GGH30 |
53440-58050 |
US $14.24 |
||
|
53452
|
53452
53452-58010 Holder, Hood Stay[01.2015 -] AGH30,AYH30,GGH30 |
53452-58010 |
US $10.40 |
||
|
53454
|
53454
53454-52020 Clip, Hood Support Rod[01.2015 -] AGH30,AYH30,GGH30 |
53454-52020 |
from US $1.79 |
||
|
53510
|
53510
53510-58070 Lock Assy, Hood[01.2015 -] AGH30,AYH30,GGH30..RHD..ALPHD |
53510-58070 |
US $49.10 |
||
|
53510A
|
53510A
90506-09055 Spring, Tension(For Hood Lock)[01.2015 -] AGH30,AYH30,GGH30 WD=0.9,CW=21 |
90506-09055 |
from US $1.44 |
||
|
53510D
|
53510D
90506-12063 Spring, Tension(For Hood Lock)[01.2015 -] AGH30,AYH30,GGH30 WD=1.2,CW=8.5 |
90506-12063 |
from US $1.44 |
||
|
53510E
|
53510E
90506-18067 Spring, Tension(For Hood Lock)[01.2015 -] AGH30,AYH30,GGH30 WD=1.8,CW=13 |
90506-18067 |
US $1.44 |
||
|
53601
|
53601
53601-52010-C0
Lever Sub-Assy, Hood Lock Control
[01.2015 - 12.2016] GGH30..V BLACK,TRIM0#,2#; AGH30,GGH30..VFIRE BLACK,TRIM2#; AGH30,AYH30,GGH30..ALPHD..(G,L,Q) BLACK,TRIM0# |
53601-52010-C0 |
— | ||
| replacement | |||||
|
53601
|
53601
53601-52010-C1 Lever Sub-Assy, Hood Lock Control[01.2015 - 12.2016] GGH30..V BLACK,TRIM0#,2#; AGH30,GGH30..VFIRE BLACK,TRIM2#; AGH30,AYH30,GGH30..ALPHD..(G,L,Q) BLACK,TRIM0# |
53601-52010-C1 |
from US $21.43 |
||
|
53601
|
53601
53601-52010-C1 Lever Sub-Assy, Hood Lock Control[12.2016 -] GGH30..V BLACK,TRIM0#,2#; AGH30,GGH30..VFIRE BLACK,TRIM2#; AGH30,AYH30,GGH30..ALPHD..(G,L,Q) BLACK,TRIM0# |
53601-52010-C1 |
from US $21.43 |
||
|
53614
|
53614
82711-3F440 Clamp, Hood Lock Control Cable[01.2015 -] AGH30,AYH30,GGH30 |
82711-3F440 |
US $1.92 |
||
|
53630
|
53630
53630-58050 Cable Assy, Hood Lock Control[01.2015 -] AGH30,AYH30,GGH30..RHD |
53630-58050 |
US $16.57 |
||
|
53630B
|
53630B
90469-06005 Clamp(For Hood Lock Control Cable)[01.2015 -] AGH30,AYH30,GGH30 |
90469-06005 |
from US $1.28 |
||
|
53641
|
53641
82711-16820 Clamp, Hood Lock Control Wire[01.2015 -] AGH30,AYH30,GGH30..RHD |
82711-16820 |
US $1.60 |
||
|
9011906939
|
9011906939
90119-06939 Bolt, Hood Lock |
90119-06939 |
US $0.96 |
||
|
9155180816
|
9155180816
91551-80816 Bolt(For Manual Transmission Oil Separator) |
91551-80816 |
from US $0.99 |
||
|
9155380814
|
9155380814
91553-80814 BOLT FLANGE |
91553-80814 |
US $1.28 |
||
