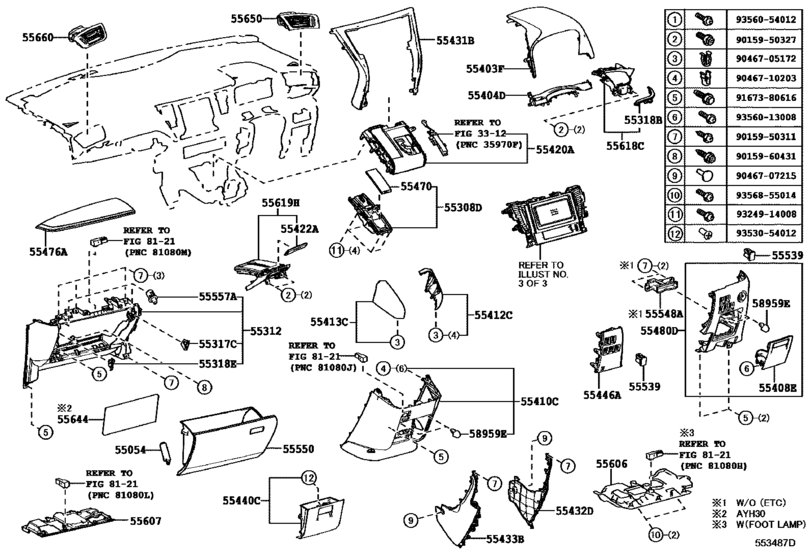

Instrument Panel & Glove Compartment ([01.2015 - ] (1501- )RHD) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- AGH30
- ENGINE
- 2ARFE
- TRANSMISSION
- CVT
- Model
- Alphard III
- From
- 01.2015
- Seating Capacity
- 07S
- Vehicle Model
- ALPHD
- Model Mark
- G
- Driver's Position
- RHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55054
|
55054
55054-47010 Stopper Sub-Assy, Glove Compartment Door[01.2015 -] AGH30,AYH30,GGH30 |
55054-47010 |
from US $15.96 |
||
|
55308D
|
55308D
55308-58110 Box Sub-Assy, Instrument Panel, Center[01.2015 -] AGH30,AYH30,GGH30..RHD..ALPHD..(G,L,Q) |
55308-58110 |
US $131.04 |
||
|
55312
|
55312
55312-58050-C0 Panel, Instrument, Lower[01.2015 - 05.2016] AGH30,GGH30..VFIRE BLACK,TRIM2#; GGH30..RHD..V BLACK,TRIM0#,2#; AGH30,AYH30,GGH30..RHD..ALPHD..(G,L,Q) BLACK,TRIM0# |
55312-58050-C0 |
US $119.39 |
||
| replacement | |||||
|
55312
|
55312
55312-58051-C0 Panel, Instrument, Lower[01.2015 - 05.2016] AGH30,GGH30..VFIRE BLACK,TRIM2#; GGH30..RHD..V BLACK,TRIM0#,2#; AGH30,AYH30,GGH30..RHD..ALPHD..(G,L,Q) BLACK,TRIM0# |
55312-58051-C0 |
US $107.74 |
||
|
55312
|
55312
55312-58051-C0 Panel, Instrument, Lower[06.2016 -] AGH30,GGH30..VFIRE BLACK,TRIM2#; GGH30..RHD..V BLACK,TRIM0#,2#; AGH30,AYH30,GGH30..RHD..ALPHD..(G,L,Q) BLACK,TRIM0# |
55312-58051-C0 |
US $107.74 |
||
|
55317C
|
55317C
55317-58030-C0 Patch, Instrument Side, Lower Rh[01.2015 -] AGH30,GGH30..VFIRE BLACK,TRIM2#; GGH30..RHD..V BLACK,TRIM0#,2#; AGH30,AYH30,GGH30..RHD..ALPHD..(G,L,Q) BLACK,TRIM0# |
55317-58030-C0 |
US $2.33 |
||
|
55318B
|
55318B
55318-58030 Extension, Instrument Panel[01.2015 -] AGH30..G |
55318-58030 |
US $22.13 |
||
|
55318E
|
55318E
55318-58060-C0 Patch, Instrument Side, Lower Lh[01.2015 -] AGH30,GGH30..VFIRE BLACK,TRIM2#; GGH30..RHD..V BLACK,TRIM0#,2#; AGH30,AYH30,GGH30..RHD..ALPHD..(G,L,Q) BLACK,TRIM0# |
55318-58060-C0 |
US $2.33 |
||
|
55403F
|
55403F
55403-58140-C0 Panel Sub-Assy, Instrument Panel Finish[01.2015 -] AGH30,GGH30..VFIRE BLACK,TRIM2#; GGH30..RHD..V BLACK,TRIM0#,2#; AGH30,AYH30,GGH30..RHD..ALPHD..(G,L,Q) BLACK,TRIM0# |
55403-58140-C0 |
US $154.08 |
||
|
55404D
|
55404D
55404-58050 Panel Sub-Assy, Instrument Cluster Finish[01.2015 -] AGH30,AYH30,GGH30..RHD |
55404-58050 |
US $36.55 |
||
|
55408E
|
55408E
55408-58030-C0 Box Sub-Assy, Instrument Panel Coin[01.2015 -] AGH30..G BLACK,TRIM0# |
55408-58030-C0 |
US $32.14 |
||
|
55410C
|
55410C
55410-58080-C0 Panel Assy, Instrument Cluster Finish[01.2015 -] AGH30..G BLACK,TRIM0#; GGH30..Q BLACK,TRIM2# |
55410-58080-C0 |
US $115.02 |
||
|
55412C
|
55412C
55412-58180-C0 Panel, Instrument Cluster Finish, Center No.1[01.2015 -] AGH30..G BLACK,TRIM0# |
55412-58180-C0 |
US $25.92 |
||
|
55413C
|
55413C
55413-58020-C0 Panel, Instrument Cluster Finish, Center No.2[01.2015 -] AGH30..G BLACK,TRIM0# |
55413-58020-C0 |
US $25.92 |
||
|
55420A
|
55420A
55420-58150 Panel Assy, Instrument Cluster Finish, Center[01.2015 -] AGH30..G |
55420-58150 |
US $189.28 |
||
|
55422A
|
55422A
55422-58010 Panel, Instrument Cluster Finish, Lower[01.2015 -] AGH30,AYH30,GGH30..RHD |
55422-58010 |
US $14.85 |
||
|
55431B
|
55431B
55431-58010 Panel, Instrument Panel Finish, Upper[01.2015 -] AGH30,AYH30,GGH30 |
55431-58010 |
US $257.76 |
||
|
55432D
|
55432D
55432-58060-C0 Panel, Instrument Panel Finish, Lower No.1[01.2015 -] AGH30,GGH30..VFIRE BLACK,TRIM2#; GGH30..RHD..V BLACK,TRIM0#,2#; AGH30,AYH30,GGH30..RHD..ALPHD..(G,L,Q) BLACK,TRIM0# |
55432-58060-C0 |
US $52.42 |
||
|
55433B
|
55433B
55433-58030-C0 Panel, Instrument Panel Finish, Lower No.2[01.2015 -] AGH30,GGH30..VFIRE BLACK,TRIM2#; GGH30..RHD..V BLACK,TRIM0#,2#; AGH30,AYH30,GGH30..RHD..ALPHD..(G,L,Q) BLACK,TRIM0# |
55433-58030-C0 |
US $58.68 |
||
|
55440C
|
55440C
55440-58060-C0 Box Assy, Instrument Panel[01.2015 -] AGH30..G BLACK,TRIM0# |
55440-58060-C0 |
US $48.34 |
||
|
55446A
|
55446A
55446-58070-C0 Base, Switch Hole, No.1[01.2015 -] AGH30,GGH30..VFIRE BLACK,TRIM2#; GGH30..RHD..V BLACK,TRIM0#,2#; AGH30,AYH30,GGH30..RHD..ALPHD..(G,L,Q) BLACK,TRIM0# |
55446-58070-C0 |
US $19.44 |
||
|
55470
|
55470
55470-58010 Garnish Assy, Instrument Cluster Finish Panel[01.2015 -] AGH30,AYH30,GGH30..RHD..ALPHD..(G,L,Q) |
55470-58010 |
US $58.39 |
||
|
55476A
|
55476A
55476-58150 Garnish, Instrument Cluster Finish Panel, No.3[01.2015 -] AGH30..G |
55476-58150 |
US $122.30 |
||
|
55480D
|
55480D
55480-58050-C0 Panel Assy, Instrument Panel Finish, Lwr[01.2015 -] AGH30..G BLACK,TRIM0# |
55480-58050-C0 |
US $72.60 |
||
|
55539
|
55539
55539-58130-C0 Cover, Spare Switch Hole[01.2015 -] GGH30..V BLACK,TRIM0#,2#; AGH30,GGH30..VFIRE BLACK,TRIM2#; AGH30,AYH30,GGH30..ALPHD..(G,L,Q) BLACK,TRIM0# |
55539-58130-C0 |
US $5.60 |
||
|
55548A
|
55548A
55548-47020-C0 Cover, Instrument Panel HoleINSTRUMENT PANEL HOLE [01.2015 -] AGH30,GGH30..VFIRE BLACK,TRIM2#; GGH30..RHD..V BLACK,TRIM0#,2#; AGH30,AYH30,GGH30..RHD..ALPHD..(G,L,Q) BLACK,TRIM0# |
55548-47020-C0 |
US $13.21 |
||
|
55550
|
55550
55550-58100-C0 Door Assy, Glove Compartment[01.2015 -] AGH30..G BLACK,TRIM0# |
55550-58100-C0 |
US $163.20 |
||
|
55557A
|
55557A
55557-78010 Cushion(For Glove Compartment Door)[01.2015 -] AGH30,AYH30,GGH30 |
55557-78010 |
US $2.62 |
||
|
55606
|
55606
55606-58030 Cover Sub-Assy, Instrument Panel Under, No.1[01.2015 -] AGH30,AYH30,GGH30..RHD |
55606-58030 |
US $41.60 |
||
|
55607
|
55607
55607-58030 Cover Sub-Assy, Instrument Panel Under, No.2[01.2015 -] AGH30,GGH30..RHD |
55607-58030 |
US $34.80 |
||
|
55618C
|
55618C
55618-58030-C0 Holder, Instrument Panel Cup[01.2015 -] AGH30..G BLACK,TRIM0# |
55618-58030-C0 |
US $123.76 |
||
|
55619H
|
55619H
55619-58010-C0 Holder, Instrument Panel Cup, No.2[01.2015 -] AGH30,GGH30..VFIRE BLACK,TRIM2#; GGH30..RHD..V BLACK,TRIM0#,2#; AGH30,AYH30,GGH30..RHD..ALPHD..(G,L,Q) BLACK,TRIM0# |
55619-58010-C0 |
US $97.68 |
||
|
55650
|
55650
55650-58110-C0 Register Assy, Instrument Panel, No.1[01.2015 - 01.2017] AGH30,GGH30..VFIRE BLACK,TRIM2#; GGH30..RHD..V BLACK,TRIM0#,2#; AGH30,AYH30,GGH30..RHD..ALPHD..(G,L,Q) BLACK,TRIM0# |
55650-58110-C0 |
US $87.36 |
||
|
55650
|
55650
55650-58111-C0 Register Assy, Instrument Panel, No.1[01.2017 -] AGH30,GGH30..VFIRE BLACK,TRIM2#; GGH30..RHD..V BLACK,TRIM0#,2#; AGH30,AYH30,GGH30..RHD..ALPHD..(G,L,Q) BLACK,TRIM0# |
55650-58111-C0 |
US $96.20 |
||
|
55660
|
55660
55660-58100-C0 Register Assy, Instrument Panel, No.2[01.2015 -] AGH30,GGH30..VFIRE BLACK,TRIM2#; GGH30..RHD..V BLACK,TRIM0#,2#; AGH30,AYH30,GGH30..RHD..ALPHD..(G,L,Q) BLACK,TRIM0# |
55660-58100-C0 |
US $96.20 |
||
|
58959E
|
58959E
58959-60060 Cushion, Instrument Panel[01.2015 -] AGH30,AYH30,GGH30 |
58959-60060 |
from US $1.31 |
||
|
9015950311
|
9015950311
90159-50311 SCREW |
90159-50311 |
from US $0.84 |
||
| replacement | |||||
|
9015950311
|
9015950311
90159-A0034 SCREW WWASHER |
90159-A0034 |
US $22.20 |
||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
from US $0.72 |
||
|
9015960431
|
9015960431
90159-60431 SCREW |
90159-60431 |
from US $0.78 |
||
|
9046705172
|
9046705172
90467-05172 Clip, Instrument Panel, No.1 |
90467-05172 |
US $0.96 |
||
|
9046707215
|
9046707215
90467-07215 Clip |
90467-07215 |
from US $1.23 |
||
|
9046710203
|
9046710203
90467-10203 Direct |
90467-10203 |
from US $0.64 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
||
|
9324914008
|
9324914008
93249-14008 New Genuine Part |
93249-14008 |
US $1.12 |
||
|
9353054012
|
9353054012
93530-54012 New Genuine Part |
93530-54012 |
US $0.70 |
||
|
9356013008
|
9356013008
93560-13008 New Genuine Part |
93560-13008 |
US $2.72 |
||
|
9356054012
|
9356054012
93560-54012 Screw |
93560-54012 |
from US $0.66 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
