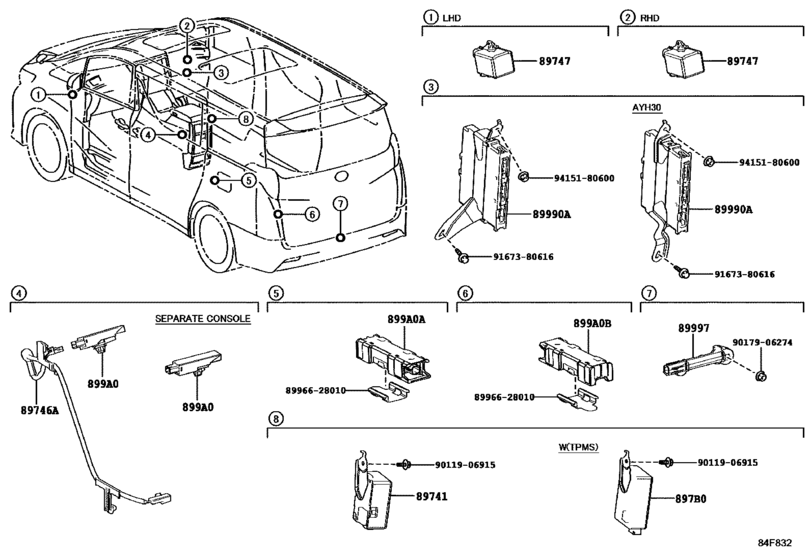

Wireless Door Lock ([01.2015 - ] (1501- )) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- AGH30
- ENGINE
- 2ARFE
- TRANSMISSION
- CVT
- Model
- Alphard III
- From
- 01.2015
- Seating Capacity
- 07S
- Vehicle Model
- ALPHD
- Model Mark
- G
- Driver's Position
- RHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
899A0
|
899A0
899A0-60010 Oscillator, Indoor Electrical KeyINDOOR ELECTRICAL KEY, NO.1 [01.2015 -] AGH30,GGH30..G,Q |
899A0-60010 |
from US $21.43 |
||
|
899A0A
|
899A0A
899A0-60020 Antenna Assy, Indoor Electrical Key, No.2INDOOR ELECTRICAL KEY, NO.2 [01.2015 -] AGH30,AYH30,GGH30 |
899A0-60020 |
from US $21.43 |
||
|
899A0B
|
899A0B
899A0-60020 Antenna Assy, Indoor Electrical Key, No.2INDOOR ELECTRICAL KEY, NO.2 [01.2015 -] AGH30,AYH30,GGH30 |
899A0-60020 |
from US $21.43 |
||
|
89741
|
89741
89740-58080
Receiver, Door Control
[01.2015 -] GGH30..RHD;AGH30,AYH30..G,Q |
89740-58080 |
— | ||
|
89741
|
89741
89740-58090
Receiver, Door Control
[01.2015 -] AGH30..L; AYH30,GGH30..RHD..ALPHD..(Q,V) THAILAND SPEC; AGH30,GGH30..RHD..(G,V) INDONESIA SPEC; AGH30..G SINGAPORE SPEC; GGH30..LHD..L PHILIPPINES SPEC; GGH30..LHD RUSSIA SPEC |
89740-58090 |
— | ||
|
89746A
|
89746A
89746-58040 Harness, Electrical Key Wire[01.2015 -] AGH30,GGH30..G,Q |
89746-58040 |
US $14.40 |
||
|
89747
|
89747
89747-30040 Buzzer, Wireless Door Lock[01.2015 -] AGH30,AYH30,GGH30 |
89747-30040 |
from US $44.08 |
||
|
89990A
|
89990A
89990-58200
Computer Assy, Smart Key
[01.2015 -] AGH30,GGH30..RHD |
89990-58200 |
— | ||
|
89997
|
89997
89997-30100 Antenna, Electrical Key[01.2015 -] AGH30,AYH30,GGH30 |
89997-30100 |
from US $25.31 |
||
|
8996628010
|
8996628010
89966-28010 Bracket,rear Floor Plate |
89966-28010 |
US $3.20 |
||
|
9011906915
|
9011906915
90119-06915 BOLT W-WASHER |
90119-06915 |
from US $0.66 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.70 |
