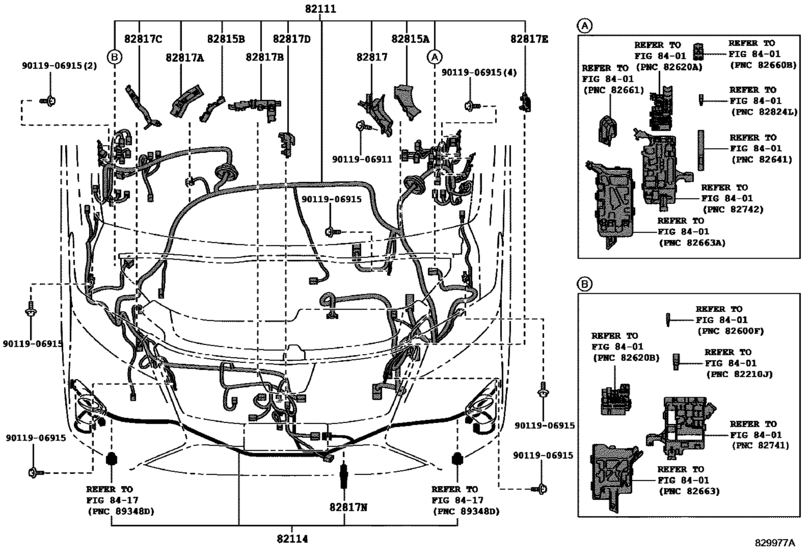

Wiring & Clamp ([01.2015 - ] ENGINE ROOM (1501- )AGH30,GGH30..RHD) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- AGH30
- ENGINE
- 2ARFE
- TRANSMISSION
- CVT
- Model
- Alphard III
- From
- 01.2015
- Seating Capacity
- 07S
- Vehicle Model
- ALPHD
- Model Mark
- G
- Driver's Position
- RHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82111
|
82111
82111-58590
Wire, Engine Room Main
[01.2015 - 05.2015] AGH30 |
82111-58590 |
— | ||
| replacement | |||||
|
82111
|
82111
82111-58591 Wire, Engine Room Main[01.2015 - 05.2015] AGH30 |
82111-58591 |
US $2,009.28 |
||
|
82111
|
82111
82111-58591 Wire, Engine Room Main[06.2015 -] AGH30 |
82111-58591 |
US $2,009.28 |
||
|
82111
|
82111
82111-58610 Wire, Engine Room Main[01.2015 - 05.2015] AGH30..G INDONESIA SPEC&AUDIO-AVN(8INCH),17SPEKAER,JBL; AGH30..G SINGAPORE SPEC&AUDIO-AVN(8INCH),17SPEKAER,JBL; AGH30..L AUDIO-AVN(8INCH),17SPEKAER,JBL |
82111-58610 |
US $2,373.28 |
||
| replacement | |||||
|
82111
|
82111
82111-58611 Wire, Engine Room Main[01.2015 - 05.2015] AGH30..G INDONESIA SPEC&AUDIO-AVN(8INCH),17SPEKAER,JBL; AGH30..G SINGAPORE SPEC&AUDIO-AVN(8INCH),17SPEKAER,JBL; AGH30..L AUDIO-AVN(8INCH),17SPEKAER,JBL |
82111-58611 |
US $2,154.88 |
||
|
82111
|
82111
82111-58611 Wire, Engine Room Main[06.2015 -] AGH30..G INDONESIA SPEC&AUDIO-AVN(8INCH),17SPEKAER,JBL; AGH30..G SINGAPORE SPEC&AUDIO-AVN(8INCH),17SPEKAER,JBL; AGH30..L AUDIO-AVN(8INCH),17SPEKAER,JBL |
82111-58611 |
US $2,154.88 |
||
|
82114
|
82114
82114-58300 Wire, Engine Room, No.4[01.2015 -] AGH30,AYH30,GGH30..ALPHD |
82114-58300 |
US $91.76 |
||
|
82815A
|
82815A
82815-58650 Cover, Wiring Harness Protector[01.2015 -] AGH30,AYH30,GGH30..RHD |
82815-58650 |
US $5.82 |
||
|
82815B
|
82815B
82815-28B20 Cover, Wiring Harness Protector[01.2015 -] AGH30,AYH30,GGH30 |
82815-28B20 |
US $8.01 |
||
|
82817
|
82817
82817-58D10 Protector, Wiring Harness, No.1[01.2015 -] AGH30,AYH30,GGH30..RHD |
82817-58D10 |
US $12.96 |
||
|
82817A
|
82817A
82817-28G20 Protector, Wiring Harness, No.2[01.2015 -] AGH30,AYH30,GGH30 |
82817-28G20 |
US $8.01 |
||
|
82817B
|
82817B
82817-58G60 Protector, Wiring Harness, No.3[01.2015 -] AGH30,AYH30,GGH30 |
82817-58G60 |
US $17.78 |
||
|
82817C
|
82817C
82817-58G80 Protector, Wiring Harness, No.4[01.2015 -] AGH30,AYH30,GGH30 |
82817-58G80 |
US $9.28 |
||
|
82817D
|
82817D
82817-58J00 Protector, Wiring Harness, No.5[01.2015 -] AGH30,AYH30,GGH30 |
82817-58J00 |
US $12.48 |
||
|
82817E
|
82817E
82817-58K40 Protector, Wiring Harness, No.6[01.2015 -] AGH30,GGH30 |
82817-58K40 |
US $6.12 |
||
|
82817N
|
82817N
82817-12G70 Protector, Wiring Harness, No.13[01.2015 -] AGH30,AYH30,GGH30 |
82817-12G70 |
US $2.33 |
||
|
9011906911
|
9011906911
90119-06911 BOLT WWASHER |
90119-06911 |
US $1.28 |
||
|
9011906915
|
9011906915
90119-06915 BOLT W-WASHER |
90119-06915 |
from US $0.70 |
||
