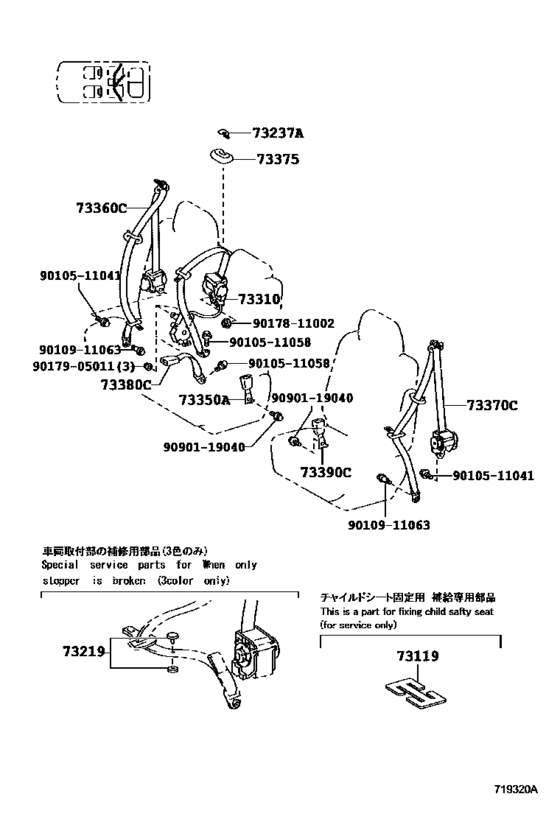

Seat Belt ([01.2015 - ] ﾘﾔNO.1ｼｰﾄ (1501- )08S) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2015 - 2018
- Sales region
- Japan
- Frame
- AGH30
- grade
- X
- ENGINE
- 2ARFE
- TRANSMISSION
- CVT
- Model
- Alphard III
- From
- 01.2015
- Seating Capacity
- 08S
- Vehicle Model
- ALPHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
73119
|
73119
73119-22010 Plate, Seat Belt Webbing Clip[01.2015 -] AGH3#,AYH30,GGH3# |
73119-22010 |
US $16.87 |
||
|
73219
|
73219
73219-33010 Stopper, Tongue Plate[01.2015 -] AGH3#,AYH30,GGH3# ブラック |
73219-33010 |
from US $0.90 |
||
|
73219
|
73219
73219-33020 Stopper, Tongue Plate[01.2015 -] AGH3#,AYH30,GGH3# グレー |
73219-33020 |
from US $0.98 |
||
|
73219
|
73219
73219-33030 Stopper, Tongue Plate[01.2015 -] AGH3#,AYH30,GGH3# ベージュ |
73219-33030 |
from US $0.96 |
||
|
73237A
|
73237A
73237-28020-A4 Cover, Shoulder Belt Anchor[01.2015 -] AGH3#,AYH30..08S FLAXEN,TRIM0# |
73237-28020-A4 |
US $2.91 |
||
|
73237A
|
73237A
73237-28020-C0 Cover, Shoulder Belt Anchor[01.2015 -] AGH3#,AYH30..08S BLACK,TRIM2# |
73237-28020-C0 |
US $25.84 |
||
|
73310
|
73310
73310-58050-A0 Belt Assy, Rear Seat 3 Point Type, Rh[01.2015 -] AGH3#,AYH30..08S FLAXEN,TRIM0# |
73310-58050-A0 |
US $200.93 |
||
|
73310
|
73310
73310-58050-C0 Belt Assy, Rear Seat 3 Point Type, Rh[01.2015 -] AGH3#,AYH30..08S BLACK,TRIM2# |
73310-58050-C0 |
US $200.93 |
||
|
73350A
|
73350A
73350-58030-A0 Belt Assy, Rear No.1 Seat Lap Type, Center[01.2015 -] AGH3#,AYH30..08S FLAXEN,TRIM0# |
73350-58030-A0 |
US $32.18 |
||
|
73350A
|
73350A
73350-58030-C0 Belt Assy, Rear No.1 Seat Lap Type, Center[01.2015 -] AGH3#,AYH30..08S BLACK,TRIM2# |
73350-58030-C0 |
US $32.18 |
||
|
73360C
|
73360C
73360-58030-A0 Belt Assy, Rear No.1 Seat, Outer Rh[01.2015 - 07.2016] AGH3#,AYH30..08S FLAXEN,TRIM0# |
73360-58030-A0 |
US $221.31 |
||
|
73360C
|
73360C
73360-58030-C0 Belt Assy, Rear No.1 Seat, Outer Rh[01.2015 - 07.2016] AGH3#,AYH30..08S BLACK,TRIM2# |
73360-58030-C0 |
US $221.31 |
||
|
73360C
|
73360C
73360-58031-A1 Belt Assy, Rear No.1 Seat, Outer Rh[07.2016 -] AGH3#,AYH30..08S..(G,V,X) FLAXEN,TRIM0# |
73360-58031-A1 |
US $200.93 |
||
|
73370C
|
73370C
73370-58050-A0 Belt Assy, Rear No.1 Seat, Outer Lh[01.2015 - 07.2016] AGH3#..X;AYH30..08S;AGH3#..08S..(G,S,V,Z) FLAXEN,TRIM0#; AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(G,GF,S,V,VL,Z) サイドリフトアップシート車（標準タイプ）,FLAXEN,TRIM0#; AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(GF,S,VL,Z) サイドリフトアップシート車（脱着タイプ）,FLAXEN,TRIM0# |
73370-58050-A0 |
US $221.31 |
||
|
73370C
|
73370C
73370-58050-C0 Belt Assy, Rear No.1 Seat, Outer Lh[01.2015 - 07.2016] AGH3#..X;AYH30..08S;AGH3#..08S..(G,S,V,Z) BLACK,TRIM2#; AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(G,GF,S,V,VL,Z) サイドリフトアップシート車（標準タイプ）,BLACK,TRIM2#; AYH30..07S..(SR,X,ZR);AGH3#,GGH3#..07S..(GF,S,VL,Z) サイドリフトアップシート車（脱着タイプ）,BLACK,TRIM2#; A |
73370-58050-C0 |
US $221.31 |
||
|
73370C
|
73370C
73370-58051-A1 Belt Assy, Rear No.1 Seat, Outer Lh[07.2016 -] AGH3#..X;AYH30..08S;AGH3#..08S..(G,V) FLAXEN,TRIM0#; AYH30..07S..X;AGH3#,GGH3#..07S..(G,GF,V,VL) サイドリフトアップシート車（標準タイプ）,FLAXEN,TRIM0#; AYH30,GGH3#..07S..(GF,VL,X) サイドリフトアップシート車（脱着タイプ）,FLAXEN,TRIM0#; AYH30,GGH3#..07S..(GF,VL,X) サイドリフトアップシート車（脱着，自 |
73370-58051-A1 |
US $200.93 |
||
|
73375
|
73375
73375-28020-A4 Cover, Rear Seat Shoulder Belt, Lh[01.2015 -] AGH3#,AYH30..08S FLAXEN,TRIM0# |
73375-28020-A4 |
US $20.68 |
||
|
73375
|
73375
73375-28020-C0 Cover, Rear Seat Shoulder Belt Hole[01.2015 -] AGH3#,AYH30..08S BLACK,TRIM2# |
73375-28020-C0 |
US $20.68 |
||
|
73380C
|
73380C
73380-58040-A0 Belt Assy, Rear No.1 Seat, Inner Rh[01.2015 -] AGH3#,AYH30..08S FLAXEN,TRIM0# |
73380-58040-A0 |
US $32.18 |
||
|
73380C
|
73380C
73380-58040-C0 Belt Assy, Rear No.1 Seat, Inner Rh[01.2015 -] AGH3#,AYH30..08S BLACK,TRIM2# |
73380-58040-C0 |
US $32.18 |
||
|
73390C
|
73390C
73390-58030-A0 Belt Assy, Rear No.1 Seat, Inner Lh[01.2015 -] AGH3#,AYH30..08S FLAXEN,TRIM0# |
73390-58030-A0 |
US $32.18 |
||
|
73390C
|
73390C
73390-58030-C0 Belt Assy, Rear No.1 Seat, Inner Lh[01.2015 -] AGH3#,AYH30..08S BLACK,TRIM2# |
73390-58030-C0 |
US $32.18 |
||
|
9010511041
|
9010511041
90105-11041 New Genuine Part |
90105-11041 |
US $1.60 |
||
|
9010511058
|
9010511058
90105-11058 BOLT FLANGE |
90105-11058 |
from US $1.07 |
||
|
9010911063
|
9010911063
90109-11063 Bolt |
90109-11063 |
US $5.12 |
||
|
9017811002
|
9017811002
90178-11002 NUT FLANGE |
90178-11002 |
US $1.60 |
||
|
9017905011
|
9017905011
90179-05011 NUT |
90179-05011 |
from US $0.78 |
||
| replacement | |||||
|
9017905011
|
9017905011
90178-A0005 New Genuine Part |
90178-A0005 |
US $3.02 |
||
|
9090119040
|
9090119040
90901-19040 BOLT WWASHER |
90901-19040 |
US $1.92 |
||
| replacement | |||||
|
9090119040
|
9090119040
90084-11055 New Genuine Part |
90084-11055 |
US $6.96 |
||
