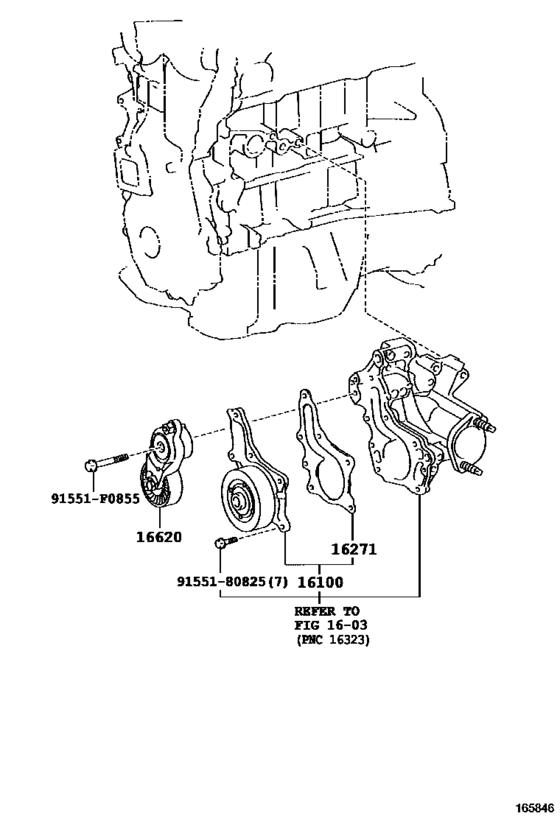

Water Pump ([01.2015 - ] *107 (1501- )2ARFE) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2015 - 2018
- Sales region
- Japan
- Frame
- AGH35
- grade
- X
- ENGINE
- 2ARFE
- TRANSMISSION
- CVT
- Model
- Alphard III
- From
- 01.2015
- Seating Capacity
- 07S
- Vehicle Model
- ALPHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16100
|
16100
16100-09600
Pump Assy, Engine Water
[01.2015 -] 2ARFE..AGH3# ＊３４７ |
16100-09600 |
— | ||
|
16271
|
16271
16271-36010 Gasket, Water PumpWATER PUMP [01.2015 -] 2ARFE..AGH3# ＊３４７; 2ARFE..AGH30 エンジン−２ＡＲ−ＦＥ，無し（ＳＴＯＰ＆ＳＴＡＲＴシステム）,＊１０７ |
16271-36010 |
from US $4.89 |
||
|
16620
|
16620
16620-0V042
Tensioner Assy, V-Ribbed Belt
[01.2015 -] 2AR#..AGH3#,AYH30 ＊３４７，ＴＹＰＥ Ａ：イラスト参照 |
16620-0V042 |
— | ||
|
16620
|
16620
16620-0V050 Tensioner Assy, V-Ribbed Belt[01.2015 - 08.2015] 2AR#..AGH3#,AYH30 ＊３４７，ＴＹＰＥ Ｂ：イラスト参照 |
16620-0V050 |
US $149.97 |
||
| replacement | |||||
|
16620
|
16620
16620-0V051 Tensioner Assy, V-Ribbed Belt[01.2015 - 08.2015] 2AR#..AGH3#,AYH30 ＊３４７，ＴＹＰＥ Ｂ：イラスト参照 |
16620-0V051 |
from US $194.40 |
||
|
16620
|
16620
16620-0V051 Tensioner Assy, V-Ribbed Belt[09.2015 -] 2AR#..AGH3#,AYH30 ＊３４７，ＴＹＰＥ Ｂ：イラスト参照 |
16620-0V051 |
from US $194.40 |
||
|
91551F0855
|
91551F0855
91551-F0855 Bolt(For Cylinder Head Set Sub) |
91551-F0855 |
from US $0.98 |
||
|
9155180825
|
9155180825
91551-80825 Bolt(For Cylinder Head Set Sub) |
91551-80825 |
from US $0.82 |
||
