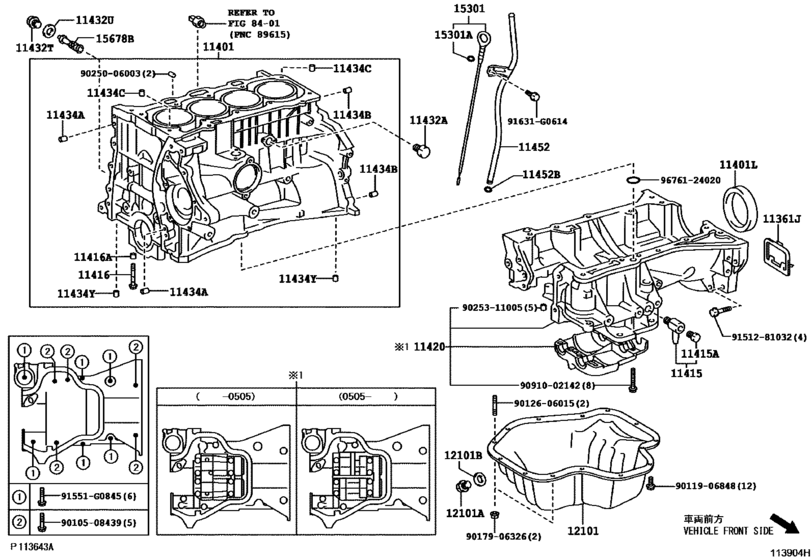

Cylinder Block ([05.2002 - ] (0205- )2AZFE) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2002 - 2008
- Sales region
- Japan
- Frame
- ANH10
- grade
- AX
- ENGINE
- 2AZFE
- Model
- Alphard I
- From
- 05.2002
- To
- 04.2008
- Gear Shift Type
- 4FC
- Seating Capacity
- 07S
- Vehicle Model
- Alphard G/V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11361J
|
11361J
11361-28010 Cover, Flywheel Housing Under[05.2002 - 04.2005] 2AZFE..ANH1# |
11361-28010 |
from US $5.17 |
||
|
11401
|
11401
11410-29105
Block Sub-Assy, Cylinder
[05.2002 - 02.2004] 2AZFE..ANH1# |
11410-29105 |
— | ||
| replacement | |||||
|
11401
|
11401
11410-29326 Block Sub-Assy, Cylinder[05.2002 - 02.2004] 2AZFE..ANH1# |
11410-29326 |
US $2,871.23 |
||
|
11401
|
11401
11410-29185 Block Sub-Assy, Cylinder[03.2004 - 04.2005] 2AZFE..ANH1# |
11410-29185 |
US $3,436.16 |
||
| replacement | |||||
|
11401
|
11401
11410-29326 Block Sub-Assy, Cylinder[03.2004 - 04.2005] 2AZFE..ANH1# |
11410-29326 |
US $2,871.23 |
||
|
11401
|
11401
11410-29325 Block Sub-Assy, Cylinder[10.2005 - 08.2006] 2AZFE..ANH1# |
11410-29325 |
US $3,436.16 |
||
| replacement | |||||
|
11401
|
11401
11410-29326 Block Sub-Assy, Cylinder[10.2005 - 08.2006] 2AZFE..ANH1# |
11410-29326 |
US $2,871.23 |
||
|
11401
|
11401
11410-29326 Block Sub-Assy, Cylinder[08.2006 -] 2AZFE..ANH1# |
11410-29326 |
US $2,871.23 |
||
|
11401L
|
11401L
90311-89003
Seal, Engine Rear Oil
[05.2002 - 04.2005] 2AZFE..ANH1# |
90311-89003 |
— | ||
| replacement | |||||
|
11401L
|
11401L
90311-89010 Seal, Engine Rear Oil[05.2002 - 04.2005] 2AZFE..ANH1# |
90311-89010 |
from US $23.35 |
||
|
11415
|
11415
90910-09120 Cock Sub-Assy, Water Drain(For Cylinder Block)[05.2002 - 04.2005] 2AZFE..ANH1# |
90910-09120 |
from US $9.28 |
||
|
11415A
|
11415A
90910-09087 Plug, Water Drain Cock(For Cylinder Block)[05.2002 - 04.2005] 2AZFE..ANH1#; 1MZFE..MNH10 |
90910-09087 |
from US $3.02 |
||
|
11416
|
11416
90910-02124
Bolt(For Crankshaft Bearing Cap Set)
[05.2002 - 04.2005] 2AZFE..ANH1# |
90910-02124 |
— | ||
| replacement | |||||
|
11416
|
11416
90910-02206 BOLT[05.2002 - 04.2005] 2AZFE..ANH1# |
90910-02206 |
from US $2.73 |
||
|
11416A
|
11416A
90253-13017 Pin, Ring W/head[05.2002 - 04.2005] 2AZFE..ANH1# |
90253-13017 |
from US $1.35 |
||
|
11420
|
11420
11420-28011 Crankcase Assy, Stiffening[05.2002 - 04.2005] 2AZFE..ANH1# |
11420-28011 |
US $920.19 |
||
| replacement | |||||
|
11420
|
11420
11420-0H020 Crankcase Assy, Stiffening[05.2002 - 04.2005] 2AZFE..ANH1# |
11420-0H020 |
US $994.45 |
||
|
11420
|
11420
11420-28031 Crankcase Assy, Stiffening[08.2005 - 04.2008] 2AZFE..ANH1# |
11420-28031 |
US $765.86 |
||
| replacement | |||||
|
11420
|
11420
11420-28032 Crankcase Assy, Stiffening[08.2005 - 04.2008] 2AZFE..ANH1# |
11420-28032 |
from US $479.04 |
||
|
11420
|
11420
11420-28040 Crankcase Assy, Stiffening[05.2005 - 08.2005] 2AZFE..ANH1# |
11420-28040 |
US $920.19 |
||
| replacement | |||||
|
11420
|
11420
11420-28032 Crankcase Assy, Stiffening[05.2005 - 08.2005] 2AZFE..ANH1# |
11420-28032 |
from US $479.04 |
||
|
11432A
|
11432A
90345-52001 Cock Sub-Assy, Water Drain(For Cylinder Block)[05.2002 - 04.2005] 2AZFE..ANH1# |
90345-52001 |
from US $4.12 |
||
|
11432T
|
11432T
90341-14013 Plug, W/head Taper Screw, No.1[05.2002 - 04.2005] 2AZFE..ANH1# |
90341-14013 |
from US $2.13 |
||
|
11432U
|
11432U
90430-14009 Gasket(For Cylinder Head Screw Plug)[05.2002 - 03.2003] 2AZFE..ANH1# |
90430-14009 |
from US $0.84 |
||
|
11432U
|
11432U
90430-14011 Gasket, Straight Screw Plug No.1(For Cylinder Block)[04.2003 - 04.2005] 2AZFE..ANH1# |
90430-14011 |
US $0.90 |
||
|
11434A
|
11434A
90250-08074 Pin, Straight(For Timing Gear Case)[05.2002 - 02.2003] 2AZFE..ANH1# 長さ＝１５，外径＝８ |
90250-08074 |
US $1.79 |
||
|
11434A
|
11434A
90250-08120 Pin, Straight, No.1[02.2003 - 04.2005] 2AZFE..ANH1# 長さ＝１８，外径＝８ |
90250-08120 |
from US $1.01 |
||
|
11434B
|
11434B
90250-10113 Pin, Straight(For Timing Gear Cover Set)[05.2002 - 04.2005] 2AZFE..ANH1# 長さ＝２２，外径＝１０; 1MZFE..MNH1# 長さ＝２２，外径＝１０ |
90250-10113 |
from US $1.17 |
||
|
11434C
|
11434C
90253-14003 Pin, Ring(For Crankshaft Bearing Cap Set)[05.2002 - 04.2005] 2AZFE..ANH1# 長さ＝１２，外径＝１４ |
90253-14003 |
from US $1.31 |
||
|
11434Y
|
11434Y
90250-08074 Pin, Straight(For Timing Gear Case)[05.2002 - 04.2005] 2AZFE..ANH1# |
90250-08074 |
US $1.79 |
||
|
11452
|
11452
11452-28010 Guide, Oil Level Gage[05.2002 - 01.2003] 2AZFE..ANH1# |
11452-28010 |
US $27.81 |
||
|
11452
|
11452
11452-28011 Guide, Oil Level Gage[01.2003 - 04.2005] 2AZFE..ANH1# |
11452-28011 |
US $28.25 |
||
|
11452
|
11452
11452-28040 Guide, Oil Level Gage[10.2005 -] 2AZFE..ANH1# |
11452-28040 |
US $18.93 |
||
|
11452B
|
11452B
96721-19010 Ring, O(For Oil Level Gage Guide)[05.2002 - 04.2005] 2AZFE..ANH1#; 1MZFE..MNH1# |
96721-19010 |
from US $1.60 |
||
|
12101
|
12101
12101-28030 Pan Sub-Assy, Oil[05.2002 - 04.2005] 2AZFE..ANH1# |
12101-28030 |
from US $110.47 |
||
|
12101A
|
12101A
90341-12012 Plug(For Oil Pan Drain)[05.2002 - 04.2005] 2AZFE..ANH1#; 1MZFE..MNH1# |
90341-12012 |
from US $2.87 |
||
| replacement | |||||
|
12101A
|
12101A
90341-T0004 Plug(For Oil Pan Drain)[05.2002 - 04.2005] 2AZFE..ANH1#; 1MZFE..MNH1# |
90341-T0004 |
US $3.59 |
||
|
12101B
|
12101B
90430-12031 Gasket (For Oil Pan Drain Plug)[05.2002 - 04.2005] 2AZFE..ANH1#; 1MZFE..MNH1# |
90430-12031 |
from US $0.84 |
||
|
15301
|
15301
15301-28020 Gage Sub-Assy, Oil Level[05.2002 - 12.2002] 2AZFE..ANH1# |
15301-28020 |
from US $12.56 |
||
|
15301
|
15301
15301-28050 Gage Sub-Assy, Oil Level[01.2003 - 04.2003] 2AZFE..ANH1# |
15301-28050 |
US $16.16 |
||
| replacement | |||||
|
15301
|
15301
15301-28051 Gage Sub-Assy, Oil Level[01.2003 - 04.2003] 2AZFE..ANH1# |
15301-28051 |
from US $12.66 |
||
|
15301
|
15301
15301-28051 Gage Sub-Assy, Oil Level[04.2003 - 04.2005] 2AZFE..ANH1# |
15301-28051 |
from US $12.66 |
||
|
15301A
|
15301A
96741-19005 O-Ring (For Oil Level Gage)[05.2002 - 12.2002] 2AZFE..ANH1# |
96741-19005 |
from US $2.42 |
||
|
15678B
|
15678B
15678-28010 Filter, Oil Control Valve[05.2002 - 04.2005] 2AZFE..ANH1# |
15678-28010 |
from US $5.11 |
||
|
91551G0845
|
91551G0845
91551-G0845 Bolt(For Camshaft Housing Set) |
91551-G0845 |
US $1.79 |
||
|
91631G0614
|
91631G0614
91631-G0614 BOT WWASHER |
91631-G0614 |
from US $0.66 |
||
|
9010508439
|
9010508439
90105-08439 BOLT FLANGE |
90105-08439 |
US $2.48 |
||
|
9011906848
|
9011906848
90119-06848 BOLT WWASHER |
90119-06848 |
from US $0.74 |
||
|
9012606015
|
9012606015
90126-06015 Bolt, Stud(For Oil Pan) |
90126-06015 |
from US $1.23 |
||
|
9017906326
|
9017906326
90179-06326 NUT W-WASHER |
90179-06326 |
from US $0.66 |
||
|
9025006003
|
9025006003
90250-06003 Pin, Straight |
90250-06003 |
US $1.61 |
||
|
9025311005
|
9025311005
90253-11005 Pin, Ring(For Camshaft Bearing Cap Setting) |
90253-11005 |
US $1.08 |
||
|
9091002142
|
9091002142
90910-02142 New Genuine Part |
90910-02142 |
US $3.23 |
||
|
9151281032
|
9151281032
91512-81032 New Genuine Part |
91512-81032 |
US $1.97 |
||
|
9676124020
|
9676124020
96761-24020 RING O |
96761-24020 |
from US $2.24 |
||
