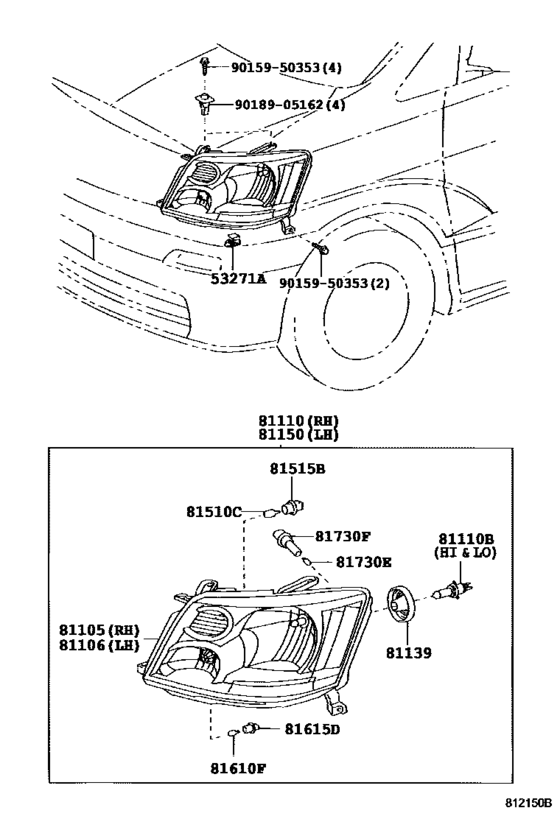

Headlamp ([05.2002 - 04.2005] (0205-0504)) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2002 - 2008
- Sales region
- Japan
- Frame
- ANH10
- grade
- AX
- ENGINE
- 2AZFE
- Model
- Alphard I
- From
- 05.2002
- To
- 04.2008
- Gear Shift Type
- 4FC
- Seating Capacity
- 07S
- Vehicle Model
- Alphard G/V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53271A
|
53271A
53271-12060 Bracket, Headlamp Mounting[05.2002 - 04.2005] ANH1#,MNH1# |
53271-12060 |
from US $7.70 |
||
|
81105
|
81105
81105-58010 Housing Sub-Assy, Headlamp, Rh[05.2002 - 04.2005] ANH1#..AX; MNH1#..MX ハロゲンヘッドランプ |
81105-58010 |
US $430.98 |
||
|
81106
|
81106
81106-58010 Housing Sub-Assy, Headlamp, Lh[05.2002 - 04.2005] ANH1#..AX; MNH1#..MX ハロゲンヘッドランプ |
81106-58010 |
from US $400 |
||
|
81110
|
81110
81110-58010 Headlamp Assy, Rh[05.2002 - 04.2005] ANH1#..AX; MNH1#..MX ハロゲンヘッドランプ |
81110-58010 |
US $524.16 |
||
|
81110
|
81110
81110-58020 Headlamp Assy, Rh[02.2003 - 04.2005] MNH1#..MX,MZ マーク＝２; ANH1#..AX ディスチャージヘッドランプ,マーク＝２ |
81110-58020 |
US $1,980.16 |
||
|
81110
|
81110
81110-58021 Headlamp Assy, Rh[05.2002 - 02.2003] MNH1#..MX,MZ マーク無し; ANH1#..AX ディスチャージヘッドランプ,マーク無し |
81110-58021 |
US $1,980.16 |
||
|
81110
|
81110
81110-58050 Headlamp Assy, Rh[04.2005 - 12.2007] ANH1#,MNH1#..AX,MX |
81110-58050 |
US $1,965.60 |
||
| replacement | |||||
|
81110
|
81110
81110-58052 Headlamp Assy, Rh[04.2005 - 12.2007] ANH1#,MNH1#..AX,MX |
81110-58052 |
US $1,951.04 |
||
|
81110
|
81110
81110-58051 Headlamp Assy, Rh[01.2008 - 04.2008] ANH1#,MNH1#..AX,MX |
81110-58051 |
US $1,951.04 |
||
| replacement | |||||
|
81110
|
81110
81110-58052 Headlamp Assy, Rh[01.2008 - 04.2008] ANH1#,MNH1#..AX,MX |
81110-58052 |
US $1,951.04 |
||
|
81110B
|
81110B
90981-13058 Bulb(For Headlamp, No.1) (HB2, 12V, 60W 55W)HB2, 12V, 60W 55W [05.2002 - 04.2005] ANH1#..AX １２Ｖ ６０／５５Ｗ，ハロゲン; MNH1#..MX １２Ｖ ６０／５５Ｗ，ハロゲン,ハロゲンヘッドランプ |
90981-13058 |
from US $33.60 |
||
|
81139
|
81139
81135-13290 Cover, Headlamp[04.2005 -] ANH1#,MNH1# 左側 |
81135-13290 |
US $17.98 |
||
|
81139
|
81139
81135-58050 Cover, Headlamp Back, No.1[04.2005 -] ANH1#,MNH1# 右側 |
81135-58050 |
US $35.11 |
||
|
81139
|
81139
81139-52010 Cover, Headlamp Socket[05.2002 - 04.2005] ANH1#..AX; MNH1#..MX ハロゲンヘッドランプ |
81139-52010 |
from US $12.50 |
||
|
81150
|
81150
81150-58010
Headlamp Assy, Lh
[05.2002 - 04.2005] ANH1#..AX; MNH1#..MX ハロゲンヘッドランプ |
81150-58010 |
— | ||
|
81150
|
81150
81150-58020 Headlamp Assy, Lh[02.2003 - 04.2005] MNH1#..MX,MZ マーク＝２; ANH1#..AX ディスチャージヘッドランプ,マーク＝２ |
81150-58020 |
US $1,980.16 |
||
|
81150
|
81150
81150-58021 Headlamp Assy, Lh[05.2002 - 02.2003] MNH1#..MX,MZ マーク無し; ANH1#..AX ディスチャージヘッドランプ,マーク無し |
81150-58021 |
US $1,980.16 |
||
|
81150
|
81150
81150-58050 Headlamp Assy, Lh[04.2005 - 12.2007] ANH1#,MNH1#..AX,MX |
81150-58050 |
US $1,965.60 |
||
| replacement | |||||
|
81150
|
81150
81150-58052 Headlamp Assy, Lh[04.2005 - 12.2007] ANH1#,MNH1#..AX,MX |
81150-58052 |
US $1,951.04 |
||
|
81150
|
81150
81150-58051 Headlamp Assy, Lh[01.2008 - 04.2008] ANH1#,MNH1#..AX,MX |
81150-58051 |
US $1,951.04 |
||
| replacement | |||||
|
81150
|
81150
81150-58052 Headlamp Assy, Lh[01.2008 - 04.2008] ANH1#,MNH1#..AX,MX |
81150-58052 |
US $1,951.04 |
||
|
81510C
|
81510C
90981-15011 Bulb (For Turn Signal Lamp) 12V 21W, AMBER[05.2002 - 04.2005] ANH1#,MNH1# １２Ｖ ２１Ｗ，アンバー; MNH1#..MX １２Ｖ ２１Ｗ，アンバー,ハロゲンヘッドランプ |
90981-15011 |
from US $4.60 |
||
|
81515B
|
81515B
81515-42050 Plug Assy, Front Turn Signal Lamp[05.2002 - 04.2005] ANH1#,MNH1#; MNH1#..MX ハロゲンヘッドランプ |
81515-42050 |
from US $10.41 |
||
|
81610F
|
81610F
99132-12050 Bulb (12V 5W)[05.2002 - 04.2005] ANH1#,MNH1# １２Ｖ ５Ｗ; MNH1#..MX １２Ｖ ５Ｗ,ハロゲンヘッドランプ |
99132-12050 |
from US $1.97 |
||
| replacement | |||||
|
81610F
|
81610F
90080-81053 Bulb(For Clearance Lamp)[05.2002 - 04.2005] ANH1#,MNH1# １２Ｖ ５Ｗ; MNH1#..MX １２Ｖ ５Ｗ,ハロゲンヘッドランプ |
90080-81053 |
US $1.01 |
||
|
81615D
|
81615D
81138-52570 Socket, Clearance Lamp[04.2005 -] ANH1#,MNH1# |
81138-52570 |
from US $10.16 |
||
|
81615D
|
81615D
81139-58010 Socket, Clearance Lamp[05.2002 - 04.2005] ANH1#..AX; MNH1#..MX ハロゲンヘッドランプ |
81139-58010 |
from US $8.88 |
||
|
81615D
|
81615D
90075-60046 Socket Plug, No.1[05.2002 - 04.2005] ANH1#,MNH1#..AS,MS,MX,MZ; ANH1#..AX ディスチャージヘッドランプ |
90075-60046 |
from US $6.30 |
||
|
81730E
|
81730E
99132-12050 Bulb (12V 5W)[05.2002 - 04.2005] ANH1#,MNH1#; MNH1#..MX ハロゲンヘッドランプ |
99132-12050 |
from US $1.97 |
||
| replacement | |||||
|
81730E
|
81730E
90080-81053 Bulb(For Clearance Lamp)[05.2002 - 04.2005] ANH1#,MNH1#; MNH1#..MX ハロゲンヘッドランプ |
90080-81053 |
US $1.01 |
||
|
81730F
|
81730F
81139-58010 Socket, Clearance Lamp[05.2002 - 04.2005] ANH1#,MNH1#..AS,MS,MX,MZ; ANH1#..AX ディスチャージヘッドランプ |
81139-58010 |
from US $8.88 |
||
|
81730F
|
81730F
90075-60046 Socket Plug, No.1[05.2002 - 04.2005] ANH1#..AX; MNH1#..MX ハロゲンヘッドランプ |
90075-60046 |
from US $6.30 |
||
|
9015950353
|
9015950353
90159-50353 SCREW, W-WASHER |
90159-50353 |
from US $0.66 |
||
|
9018905162
|
9018905162
90189-05162 GROMMET SCREW |
90189-05162 |
from US $0.96 |
||
