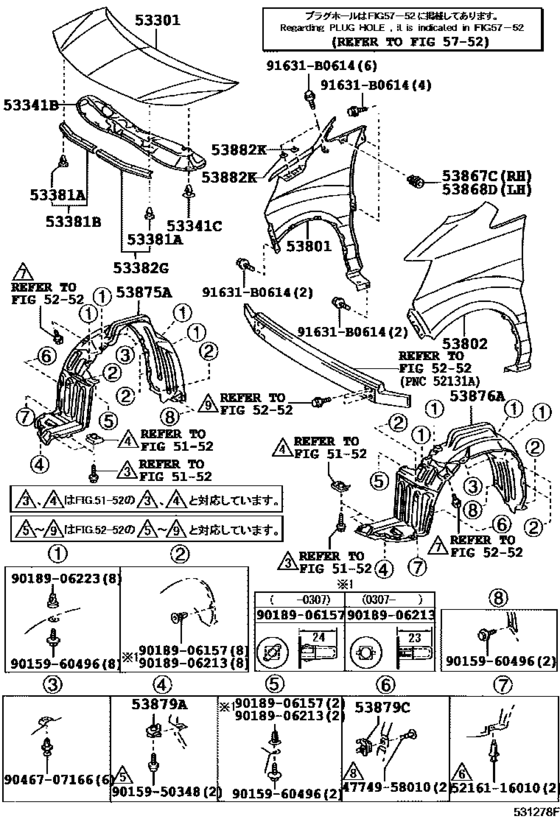

Hood & Front Fender ([05.2002 - 09.2003] (0205-0309)) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2002 - 2008
- Sales region
- Japan
- Frame
- ANH10
- grade
- AX
- ENGINE
- 2AZFE
- Model
- Alphard I
- From
- 05.2002
- To
- 04.2008
- Gear Shift Type
- 4FC
- Seating Capacity
- 07S
- Vehicle Model
- Alphard G/V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53301
|
53301
53301-58010 Hood Sub-Assy[05.2002 - 04.2005] ANH1#,MNH1# |
53301-58010 |
from US $384.54 |
||
|
53341B
|
53341B
53341-58010 Insulator, Hood[05.2002 - 04.2005] ANH1#,MNH1# |
53341-58010 |
US $57.37 |
||
|
53341C
|
53341C
90467-08124 Clip(For Hood Insulator)[05.2002 - 04.2005] ANH1#,MNH1# |
90467-08124 |
from US $1.56 |
||
|
53381A
|
53381A
90467-08011 Clip(For Headlamp Cover Seal)[05.2002 - 04.2005] ANH1#,MNH1# |
90467-08011 |
from US $0.33 |
||
| replacements | |||||
|
53381A
|
53381A
90467-08011-TH CLIP[05.2002 - 04.2005] ANH1#,MNH1# |
90467-08011-TH |
US $0.31 |
||
|
53381A
|
53381A
90467-08011-83 Clip(For Headlamp Cover Seal)Clip(For Headlamp Cover Seal) [05.2002 - 04.2005] ANH1#,MNH1# |
90467-08011-83 |
US $3.60 |
||
|
53381B
|
53381B
53381-58010 Seal, Hood To Radiator Support, Rh[05.2002 - 04.2005] ANH1#,MNH1# |
53381-58010 |
US $11.83 |
||
|
53382G
|
53382G
53381-58020 Seal, Hood To Radiator Support, Lh[05.2002 - 04.2005] ANH1#,MNH1# |
53381-58020 |
US $12.80 |
||
|
53801
|
53801
53811-58010 Fender Sub-Assy, Front Rh[05.2002 - 04.2005] ANH1#,MNH1#..AX,MX,MZ |
53811-58010 |
from US $454.08 |
||
|
53802
|
53802
53802-58010 Fender Sub-Assy, Front Lh[04.2005 -] ANH1#,MNH1#..AX,MX,MZ |
53802-58010 |
from US $454.08 |
||
|
53802
|
53802
53812-58010 Fender Sub-Assy, Front Lh[05.2002 - 04.2005] ANH1#,MNH1#..AX,MX,MZ |
53812-58010 |
from US $452.26 |
||
|
53867C
|
53867C
53867-58030 Seal, Front Fender To Cowl Side, Rh[05.2002 - 04.2005] ANH1#,MNH1# |
53867-58030 |
US $3.94 |
||
|
53868D
|
53868D
53867-58030 Seal, Front Fender To Cowl Side, Rh[05.2002 - 04.2005] ANH1#,MNH1# |
53867-58030 |
US $3.94 |
||
|
53875A
|
53875A
53875-58010 Liner, Front Fender, Rh[05.2002 - 04.2005] ANH1#,MNH1#..AX,MX,MZ |
53875-58010 |
US $109.88 |
||
|
53876A
|
53876A
53876-58010 Liner, Front Fender, Lh[05.2002 - 04.2005] ANH1#,MNH1#..AX,MX,MZ |
53876-58010 |
US $109.88 |
||
|
53879A
|
53879A
53879-16010 Retainer, Front Fender Liner[05.2002 - 04.2005] ANH1#,MNH1# |
53879-16010 |
from US $1.83 |
||
|
53879C
|
53879C
53879-58010 Retainer, Front Fender Liner[05.2002 - 04.2005] ANH1#,MNH1# |
53879-58010 |
from US $3.24 |
||
|
53882K
|
53882K
53882-16030 Pad, Rear Bumper, Center[05.2002 - 08.2002] ANH1#,MNH1#..4FC |
53882-16030 |
from US $0.70 |
||
|
53882K
|
53882K
53882-26010 Seal, Front Fender Main[08.2002 - 04.2005] ANH1#,MNH1# |
53882-26010 |
US $1.97 |
||
|
91631B0614
|
91631B0614
91631-B0614 BOLT WWASHER |
91631-B0614 |
from US $0.86 |
||
|
4774958010
|
4774958010
47749-58010 Clip, Pin Hold |
47749-58010 |
from US $0.86 |
||
|
5216116010
|
5216116010
52161-16010 Clip |
52161-16010 |
from US $1.68 |
||
| replacements | |||||
|
5216116010
|
5216116010
52161-0K040 Clip |
52161-0K040 |
from US $1.50 |
||
|
5216116010
|
5216116010
52161-02020 Clip |
52161-02020 |
US $5.27 |
||
|
9015950348
|
9015950348
90159-50348 New Genuine Part |
90159-50348 |
US $1.97 |
||
|
9015960496
|
9015960496
90159-60496 SCREW WWASHER |
90159-60496 |
from US $0.62 |
||
|
9018906157
|
9018906157
90189-06157 GROMMET SCREW |
90189-06157 |
from US $0.78 |
||
|
9018906213
|
9018906213
90189-06213 GROMMET SCREW |
90189-06213 |
from US $0.76 |
||
|
9018906223
|
9018906223
90189-06223 New Genuine Part |
90189-06223 |
US $1.25 |
||
|
9046707166
|
9046707166
90467-07166 Clip(For Front Fender Apron Seal) |
90467-07166 |
from US $0.88 |
||
